Home
>>
Pontiac
>>
1983
>>
Bonneville V6-231 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emission Controls & Engine Data Sensors
>>
Calif.
Calif.

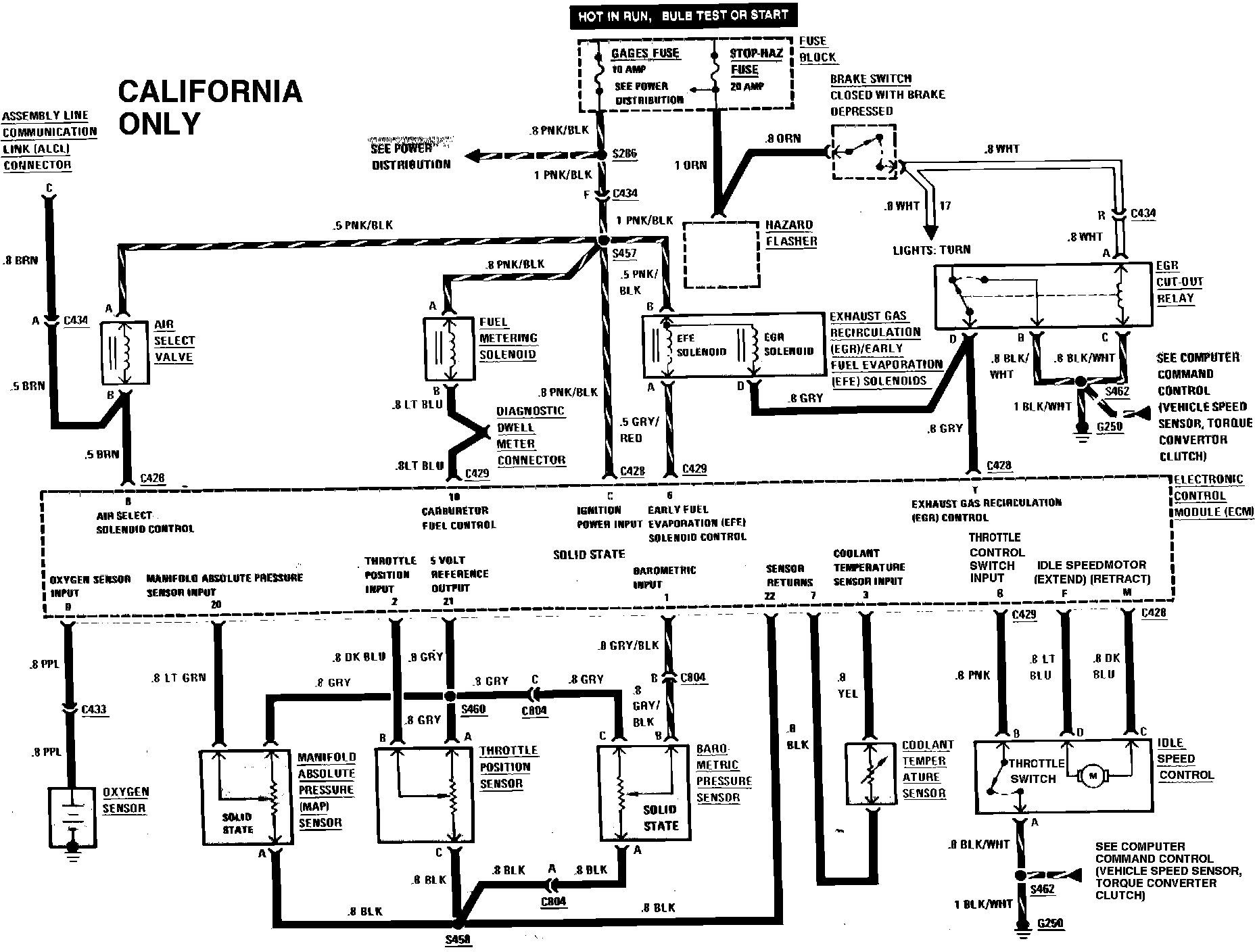

Computer Command Control (Emission Controls & Engine Data Sensors) Wiring Circuit W/V6-231 (V.I.N. A), Calif.:
