Pontiac
>>
1983
>>
Bonneville V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

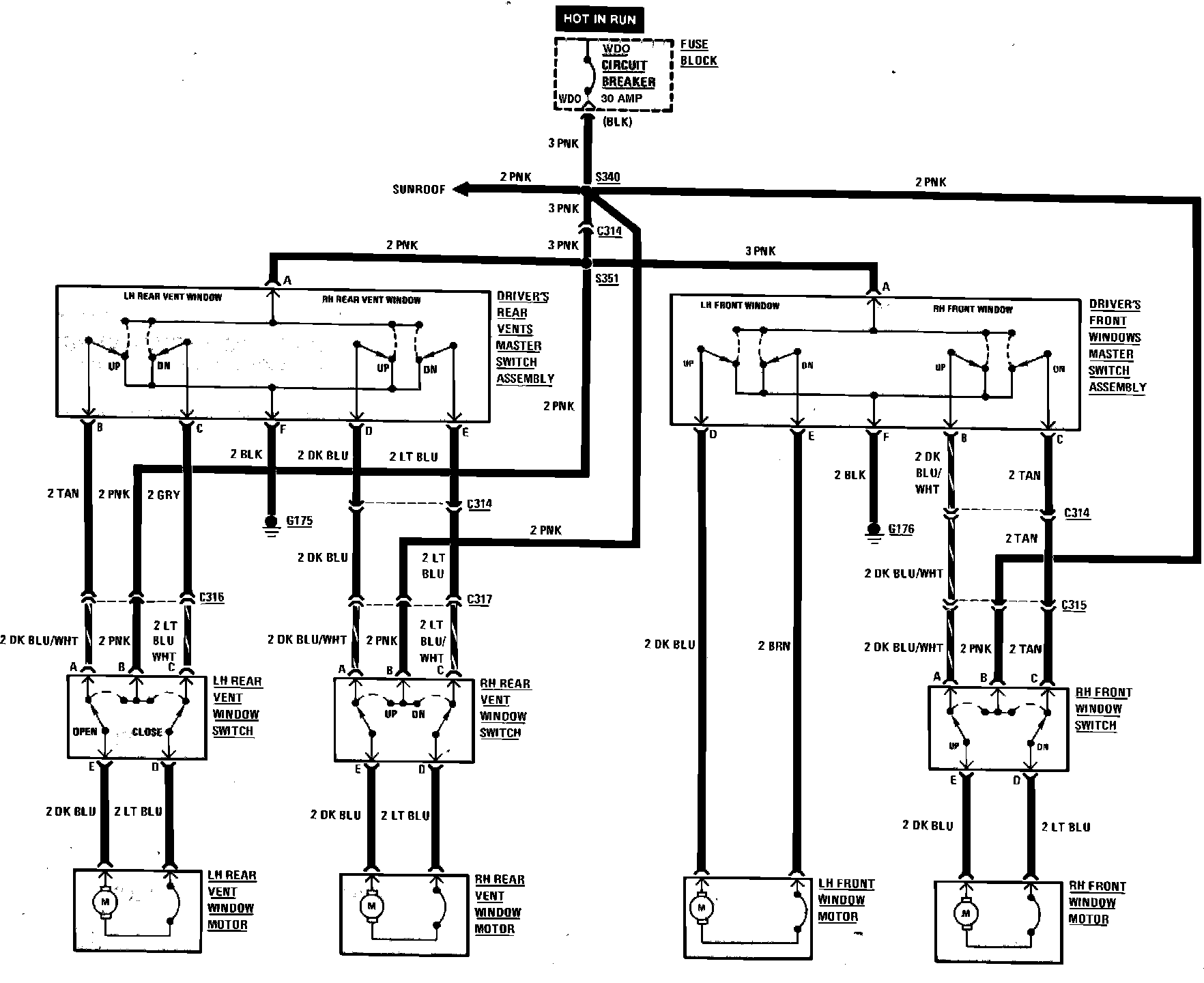

Fig. 416 Power Windows Wiring Circuit. 1983 Bonneville:
