Power Seat Motor: Diagrams

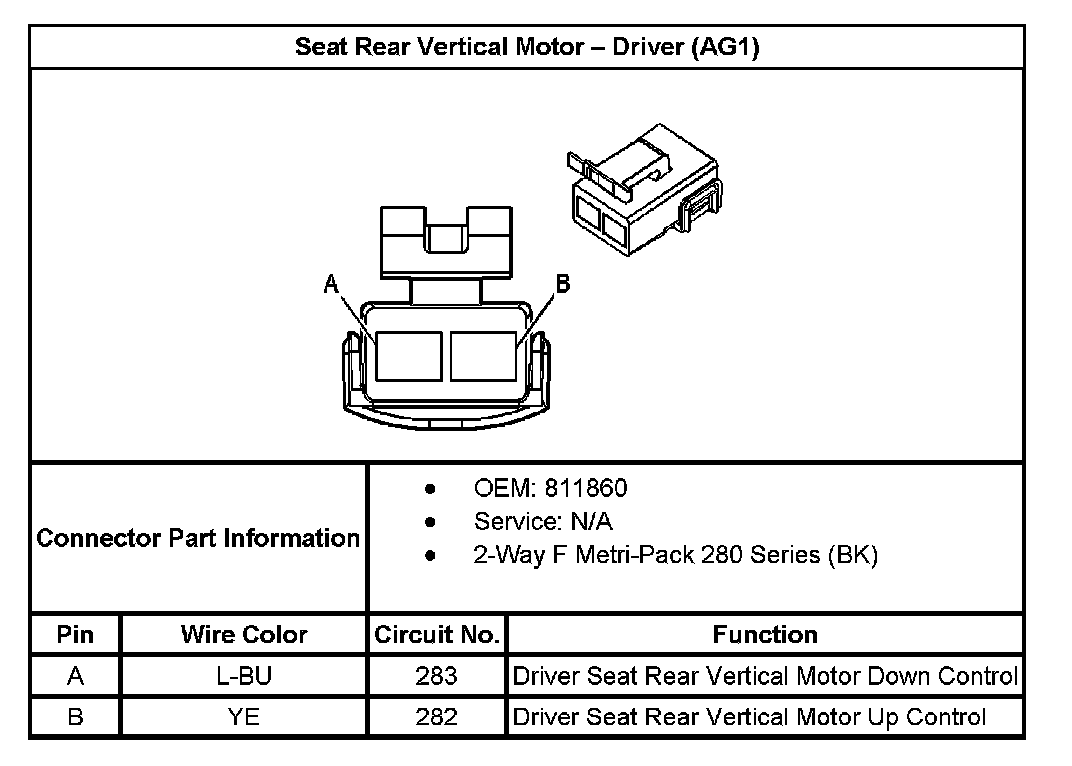

Seat Rear Vertical Motor - Driver (with RPO Code AG1):

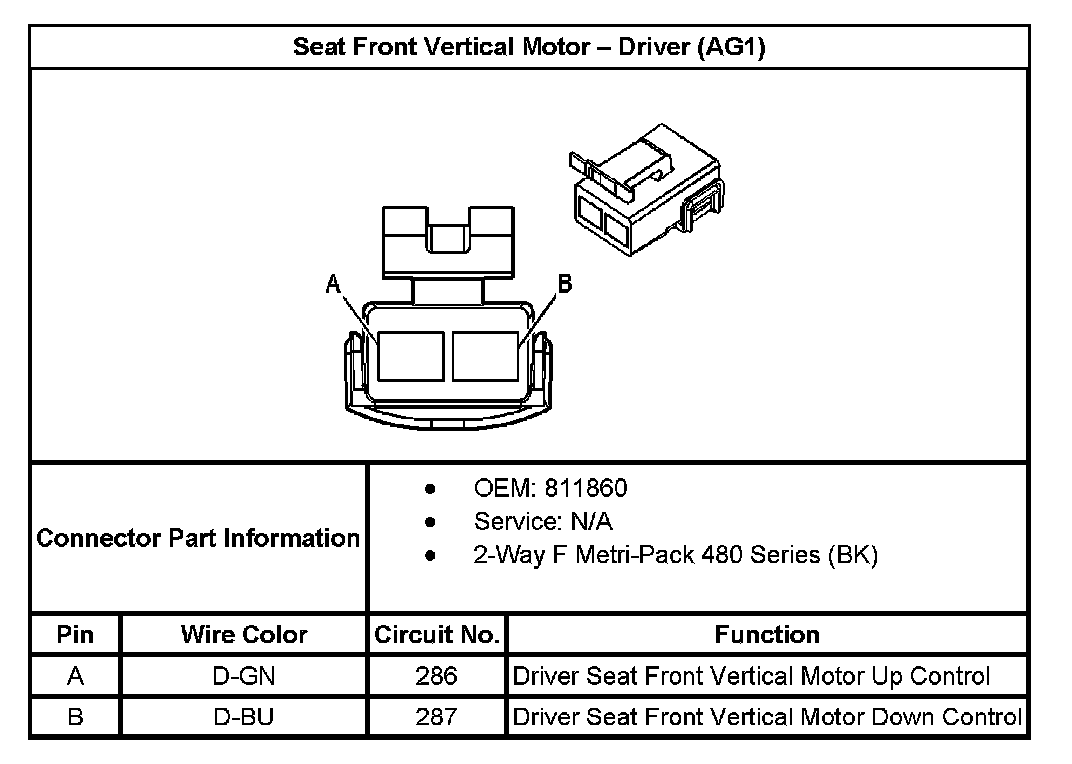

Seat Front Vertical Motor - Driver (with RPO Code AG1):
