Wiper Transmission Replace

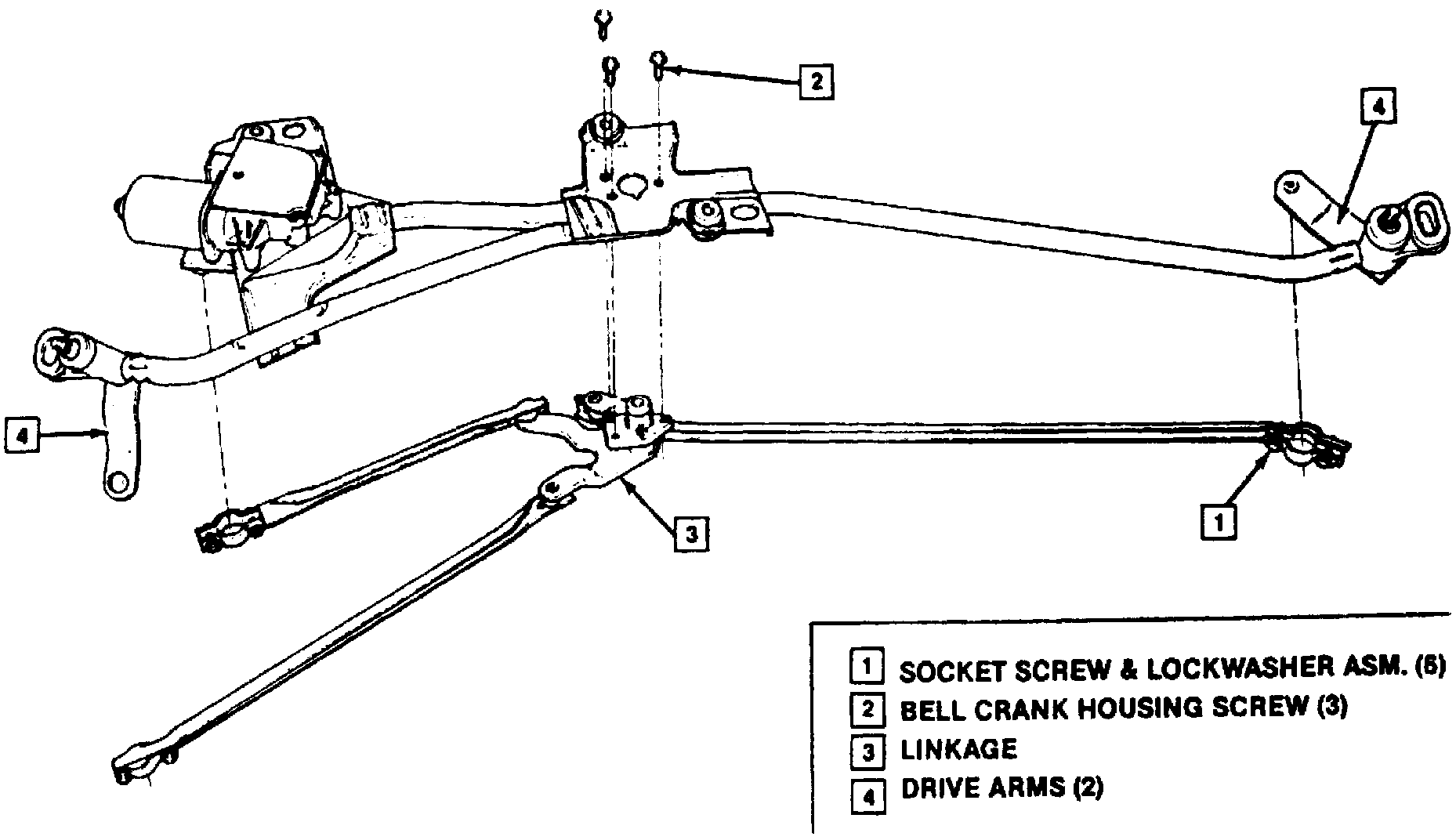

Fig. 17 Wiper Transmission Parts:

1. Remove wiper module. Refer to Wiper and Washer Systems / Service and Repair / Windshield Wiper Module/Assembly.
2. Using 8 mm socket, loosen six socket screw and lockwasher assemblies until each of three sockets releases from respective ball, Fig. 17.
3. Using 10mm socket, remove three bell crank housing screws.
4. Reverse procedure to install.
