Fuel Line Coupler: Service and Repair

Removal Procedure
1. Grasp both sides of the quick-connect fitting. Twist the female connector 1/4 turn in each direction in order to loosen any dirt within the quick-connect fitting.

WARNING: Wear safety glasses when using compressed air because flying dirt particles may cause eye injury.

2. Using compressed air, blow any dirt out of the quick-connect fining.

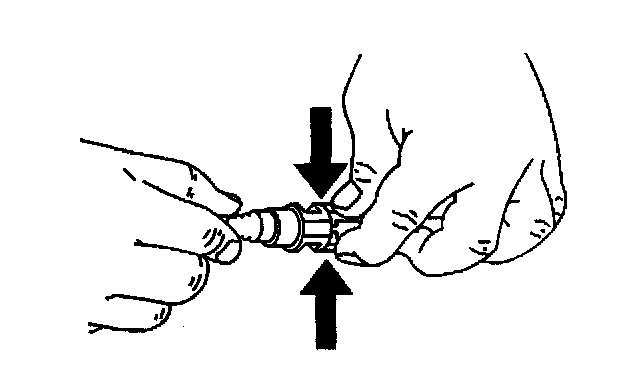

3. Squeeze the plastic retainer release tabs.

4. Pull the connection apart.

Installation Procedure

WARNING: In order to Reduce the Risk of Fire and Personal injury: Before connecting the fuel pipe quick-connect fitting, always apply a few drops of clean engine oil to the male fuel pipe end This will ensure proper reconnection and prevent a possible fuel leak (During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated).

1. Apply a few drops of clean engine oil to the male fuel pipe end.

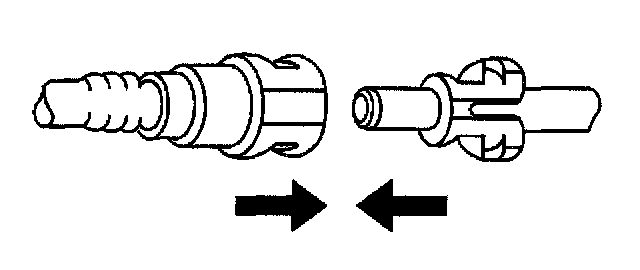

2. Push both sides of the quick-connect fitting together in order to cause the retaining tabs/fingers to snap into place.

3. Once installed, pull on both sides of the quick-connect fitting in order to make sure the connection is secure.
