Piston Ring: Service and Repair

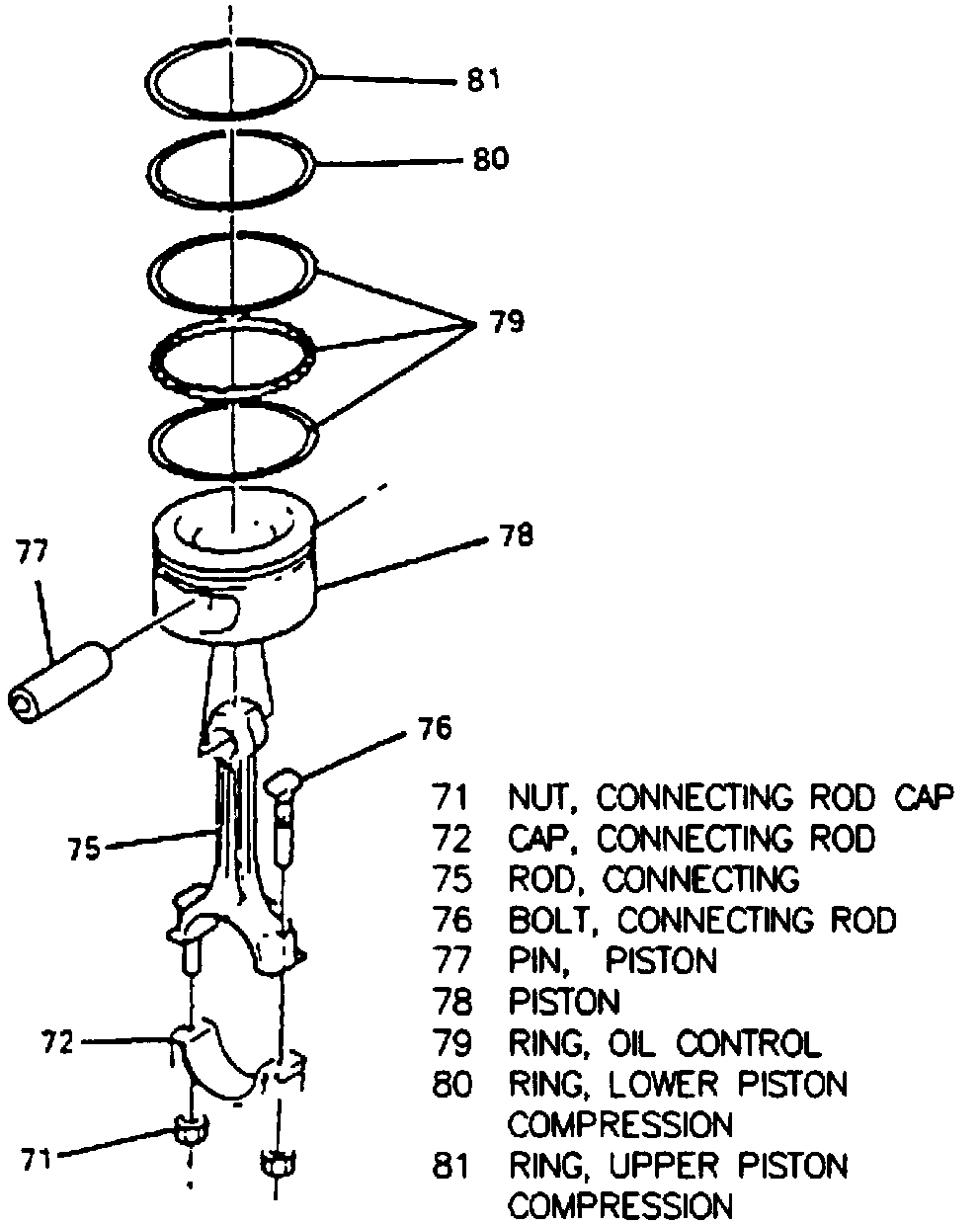

Fig. 13 Exploded View Of Piston & Rod Assembly:
Pistons and rings are available in standard sizes and oversizes of 0.010 inch. Piston pins are supplied with the piston and are available in standard size only, Fig. 13.
Pistons and rings are available in standard sizes and oversizes of 0.010 inch. Piston pins are supplied with the piston and are available in standard size only, Fig. 13.
