Home >> Pontiac Truck >> 1996 >> Trans Sport V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Blower Control >> Blower Motor Control >> C67/C57

C67/C57

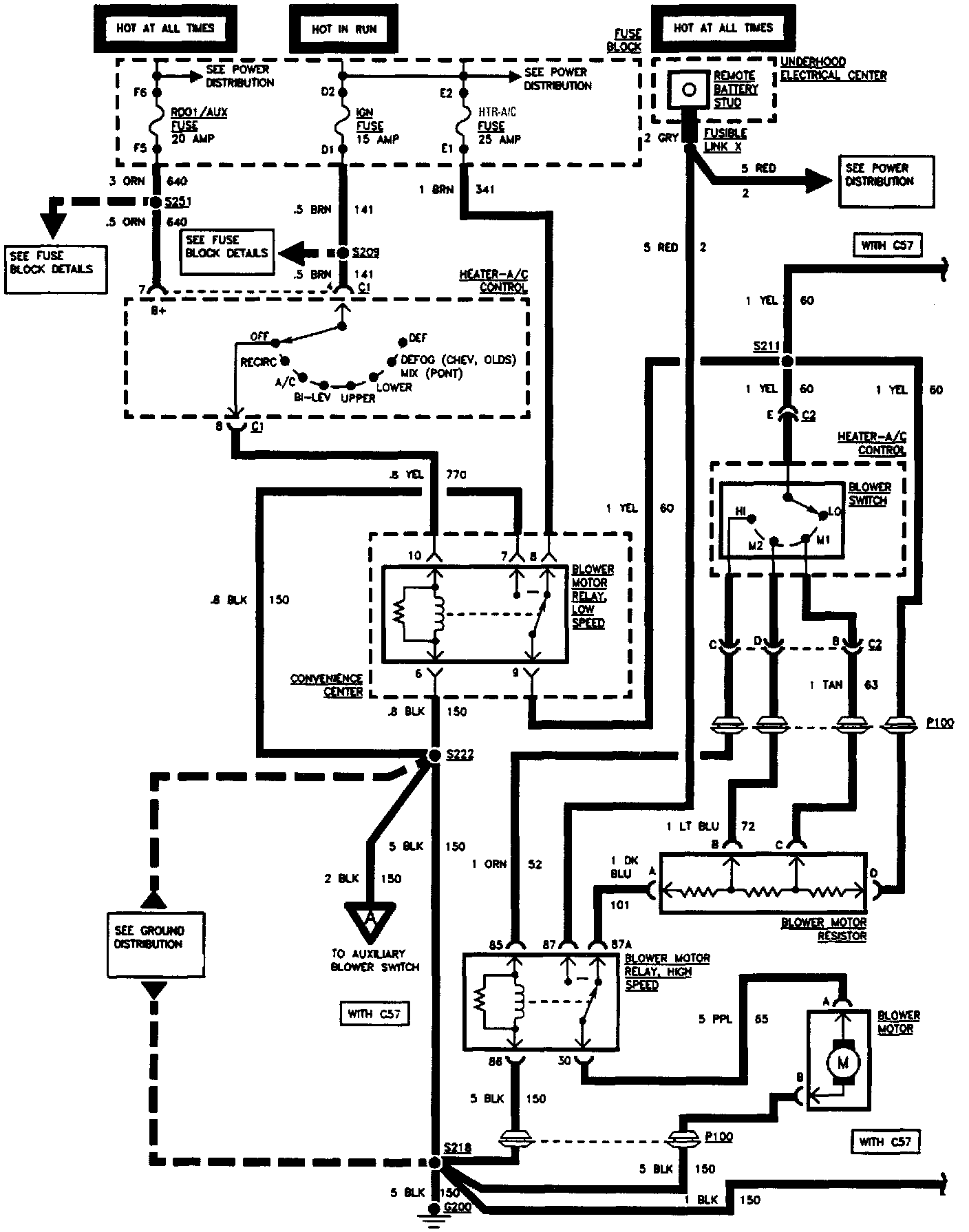

Blower Motor Control (C67/C57):
