Pontiac Truck
>>
1996
>>
Trans Sport V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
Fuel Injector

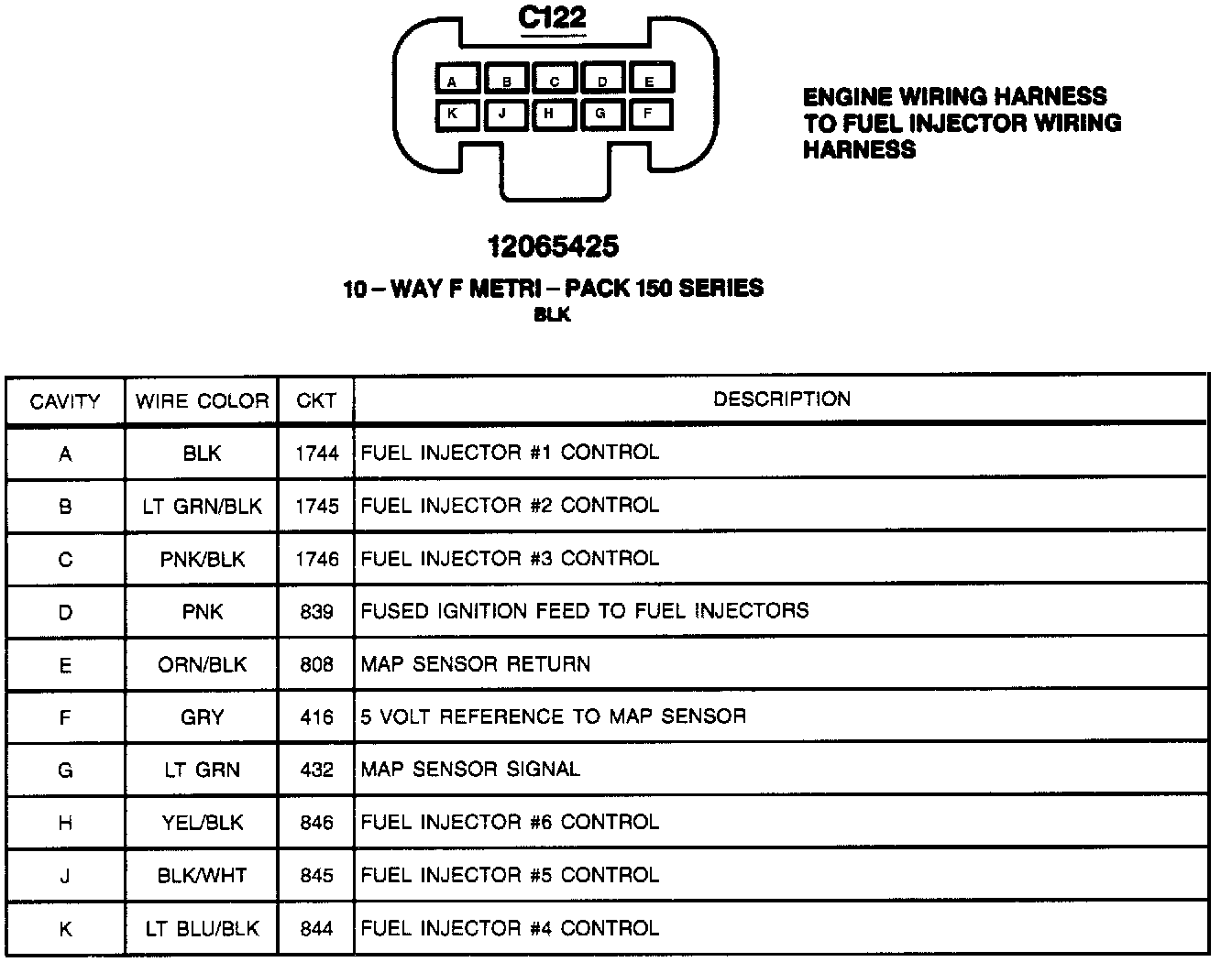

C122: Engine Wiring Harness To Fuel Injection Wiring Harness:
