ABS System Electrical Connectors

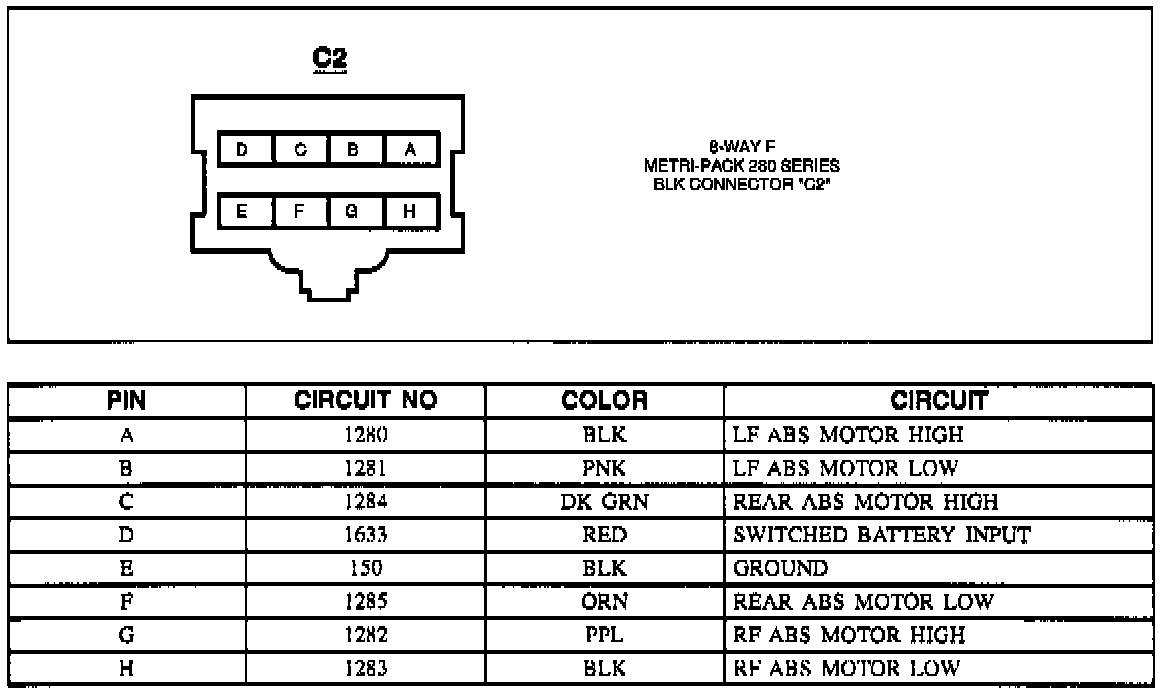

Fig. 10 EBCM Wiring Connectors (Part 1 Of 2).:

EBCM wiring connectors (Part 1 of 2)

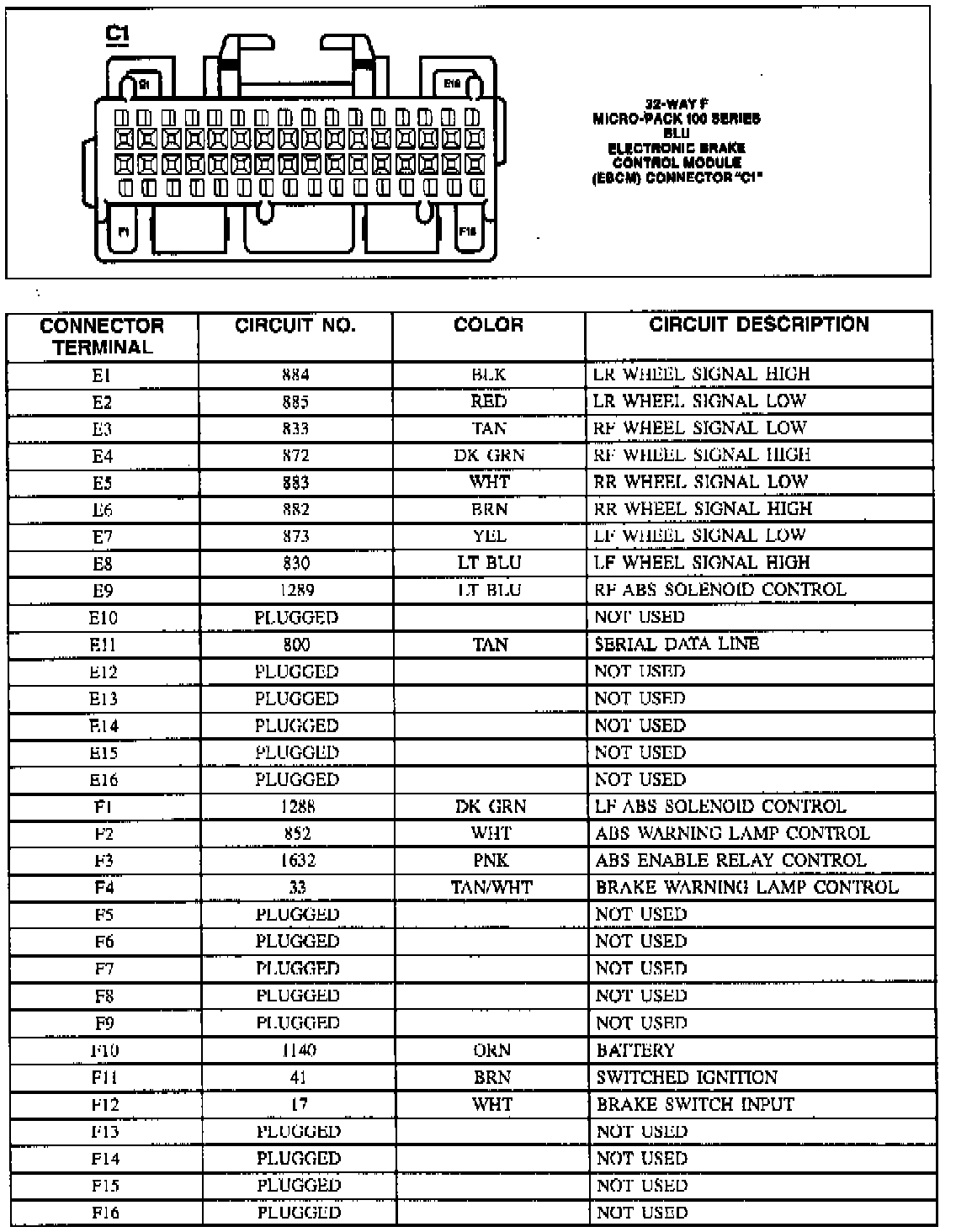

Fig. 10 EBCM Wiring Connectors (Part 2 Of 2).:

EBCM wiring connectors (Part 2 of 2)
