EGR Bypass Valve Replacement

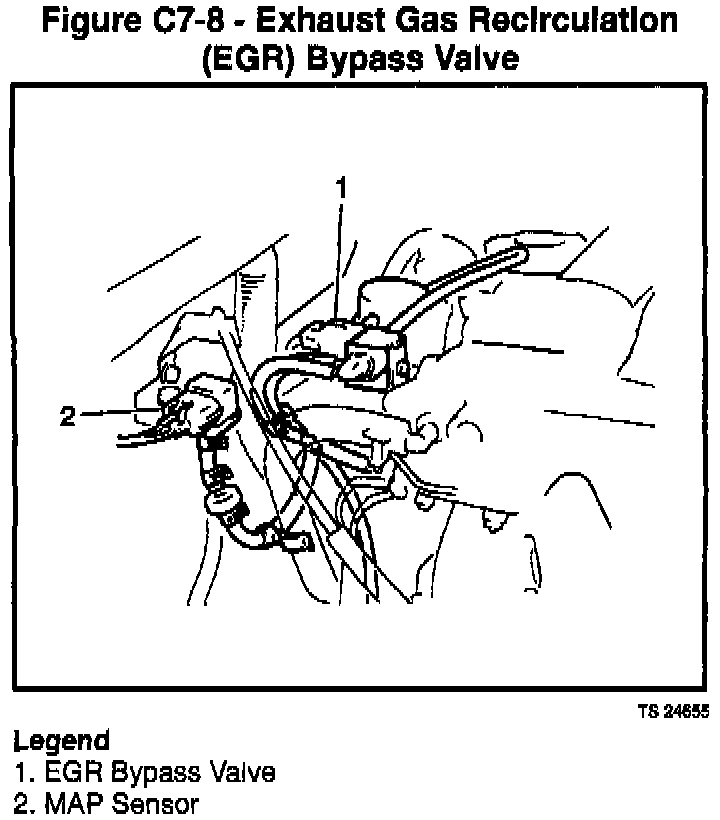

Comp. Loc:

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Exhaust Gas Recirculation (EGR) Bypass valve electrical connector.
3. Three vacuum hoses from EGR Bypass valve.
4. Two screws and EGR Bypass valve from bracket.

INSTALL OR CONNECT
1. EGR Bypass valve to bracket; secure with two screws.
2. Three vacuum hoses to EGR Bypass valve.
3. EGR Solenoid Vacuum valve electrical connector.
4. Negative (-) battery cable. Tighten negative (-) battery cable-to-negative (-) battery terminal retainer to 15 Nm (11 lb ft).
