Instruments - Manual Update, Gate Ajar Diagnostics
Bulletin Number: 93-8-17Reference Number: 318108
Publish Date: 6/93
SERVICE MANUAL UPDATE - SECTION 8A - REVISION ON "GATE AJAR INDICATOR ON AT ALL TIMES" CHARTS
1940-1993 TRANS SPORT MODELS
This bulletin includes updated diagnosis charts for the 8A-81 section of the 1990-1993 Trans Sport Service Manuals.

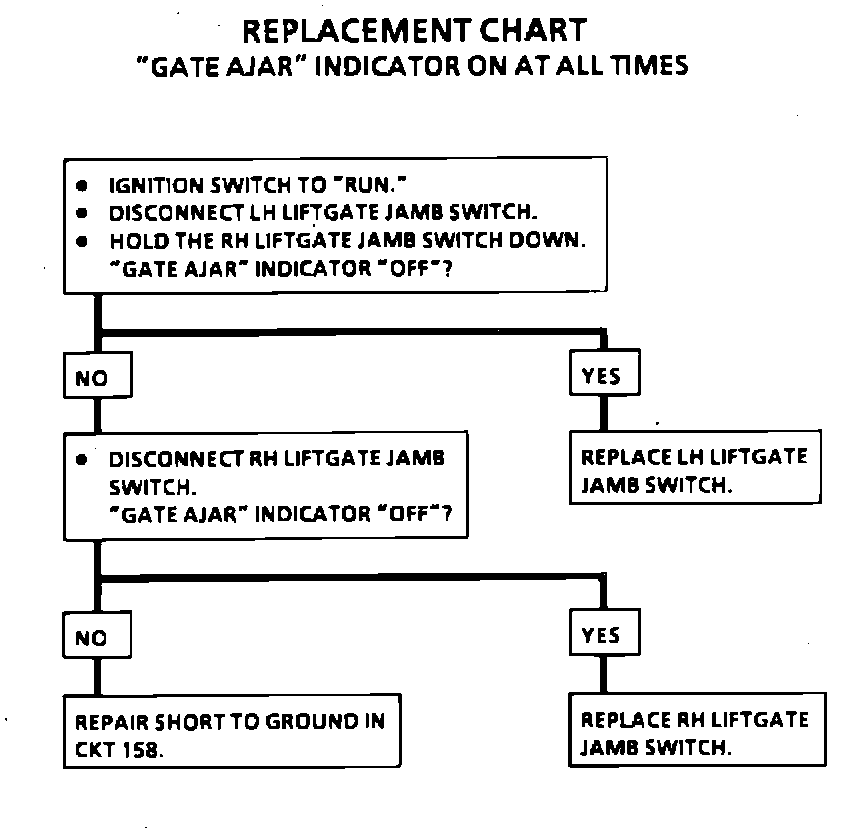

The Replacement Chart is a generic chart that replaces the chart titled "Gate Ajar Indicator On At All Times."
For the 1990 Service Manual, the chart replaces Trans Sport Chart # 7.
For the 1991 Service Manual, the chart replaces Trans Sport Chart # 7.
For the 1992 Service Manual, the chart replaces Trans Sport Chart # 11:
For the 1993 Service Manual, the chart replaces Trans Sport Chart # 13. Replace the previously listed charts in the SA-81 section with the revised Replacement Chart.
