Sound Insulator Panel

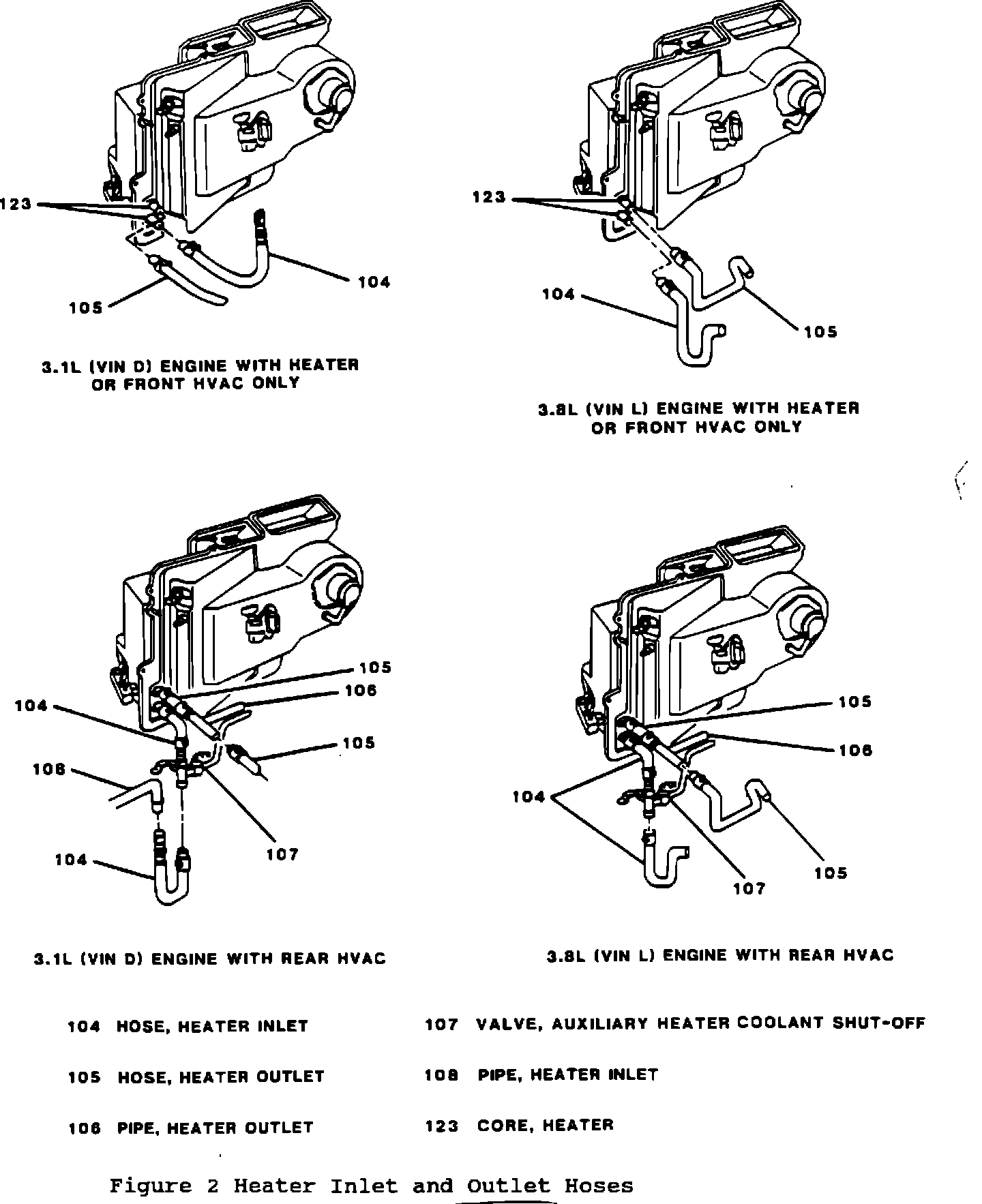

3. Clamp and heater inlet hose (104) from heater core (123) (Figure 2).

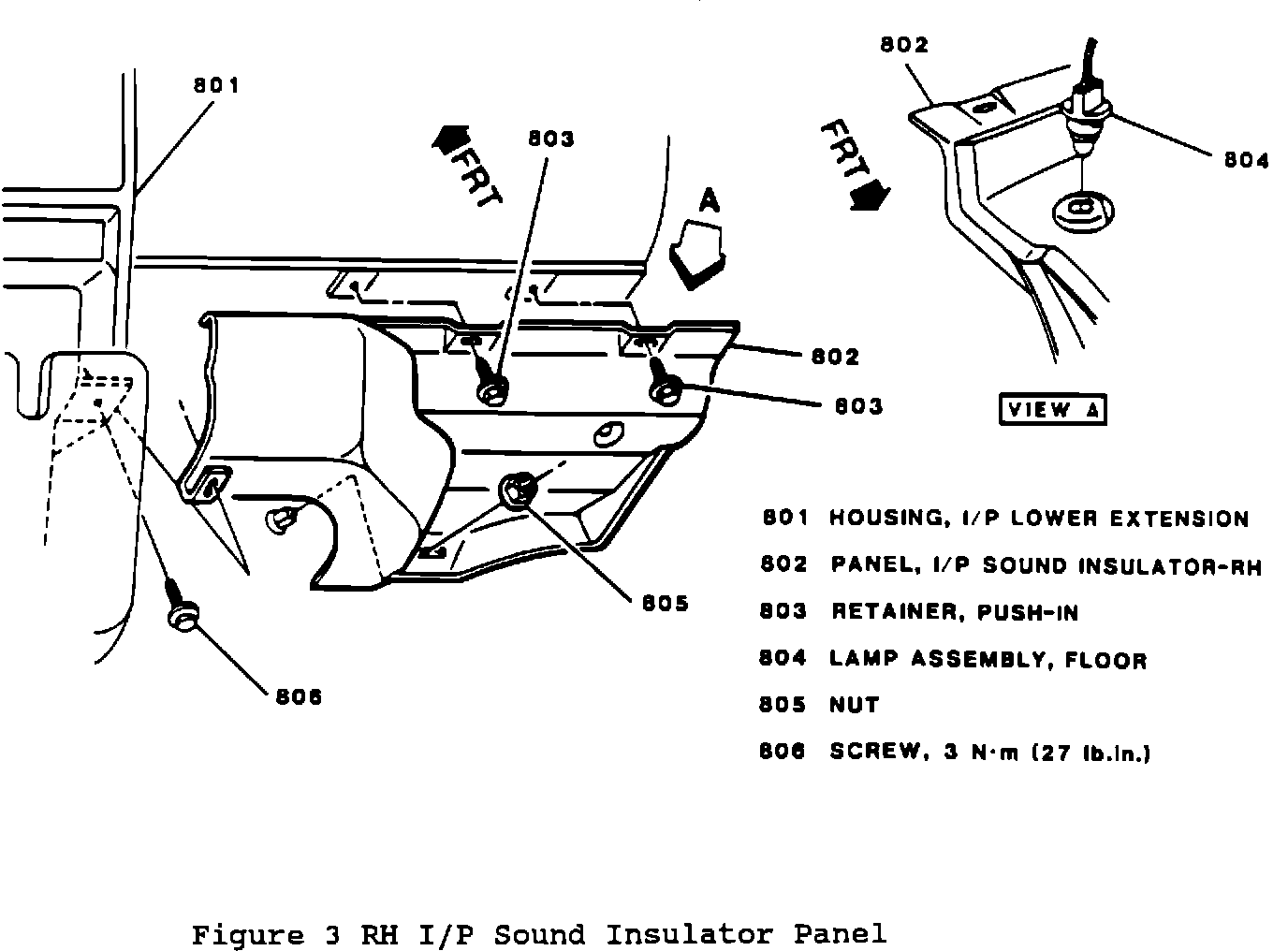

4. RH I/P sound insulator panel push-in retainers (803), screw (806) and nut (805) from stud (Figure 3).



Carefully pull RH I/P sound insulator panel (802) away from I/P (Figure 3).

5. Floor (courtesy) lamp (804) from RH I/P sound insulator panel (802) (Figure 3).

6. RH I/P sound insulator panel (802) from vehicle (Figure 3).
