Electrical - Revised PCM/ECM to Engine Harness Connector

Bulletin Number:
92-8-31

Reference Number:
218117

Publish Date:
10/92



Subject:
SERVICE MANUAL UPDATE - SECTION 8A PASS THRU HARNESS CONNECTOR

Models
Affected:
1992 TRANS SPORT MODELS


This bulletin provides information on the PCM/ECM to engine harness pass thru connector interface.

The pass thru interface was added to ease the manufacturing process. The pass thru harness reduces the possibility of pinching and chafing conditions. The information is intended as a supplement to the 1992 Trans Sport APV Service Manuals. The information applies to the 1992 1/2 Trans Sport models.

This information is being conveyed to keep car dealers and customers informed.






COMPONENT LOCATION VIEWS

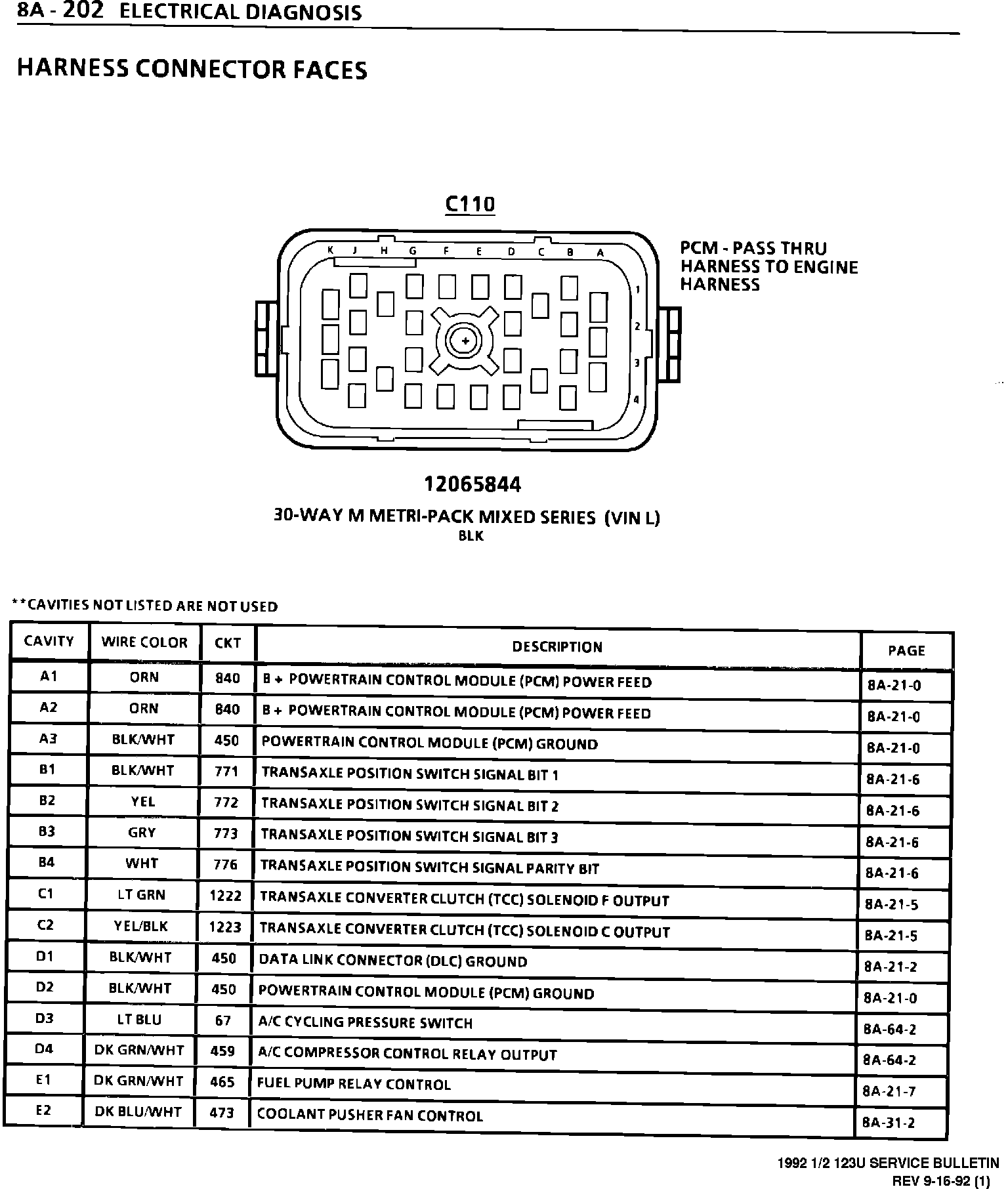

C110 30-WAY M METRI-PACK MIXED SERIES (VIN D)

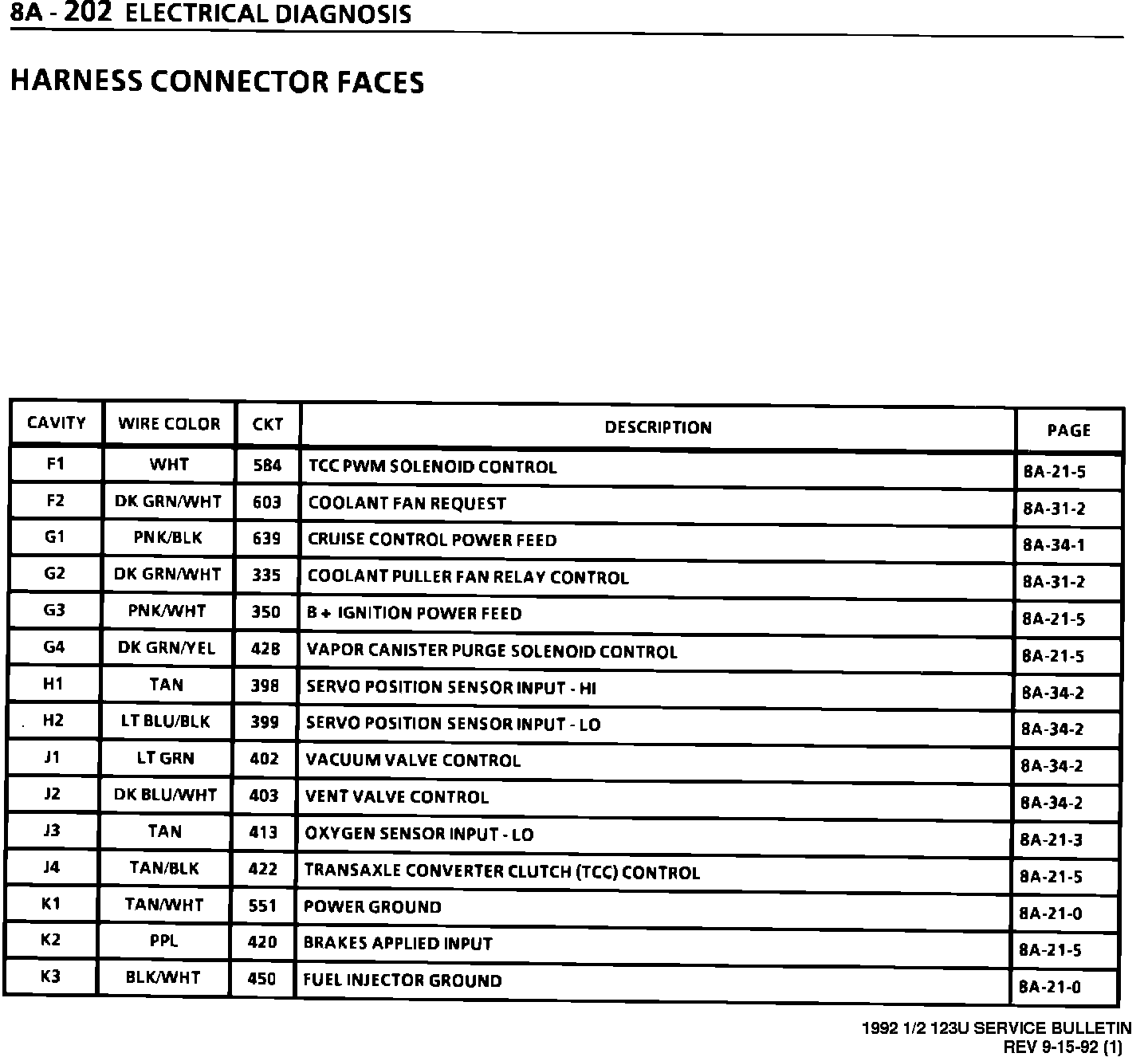

C110 30-WAY M METRI-PACK MIXED SERIES (VIN L)

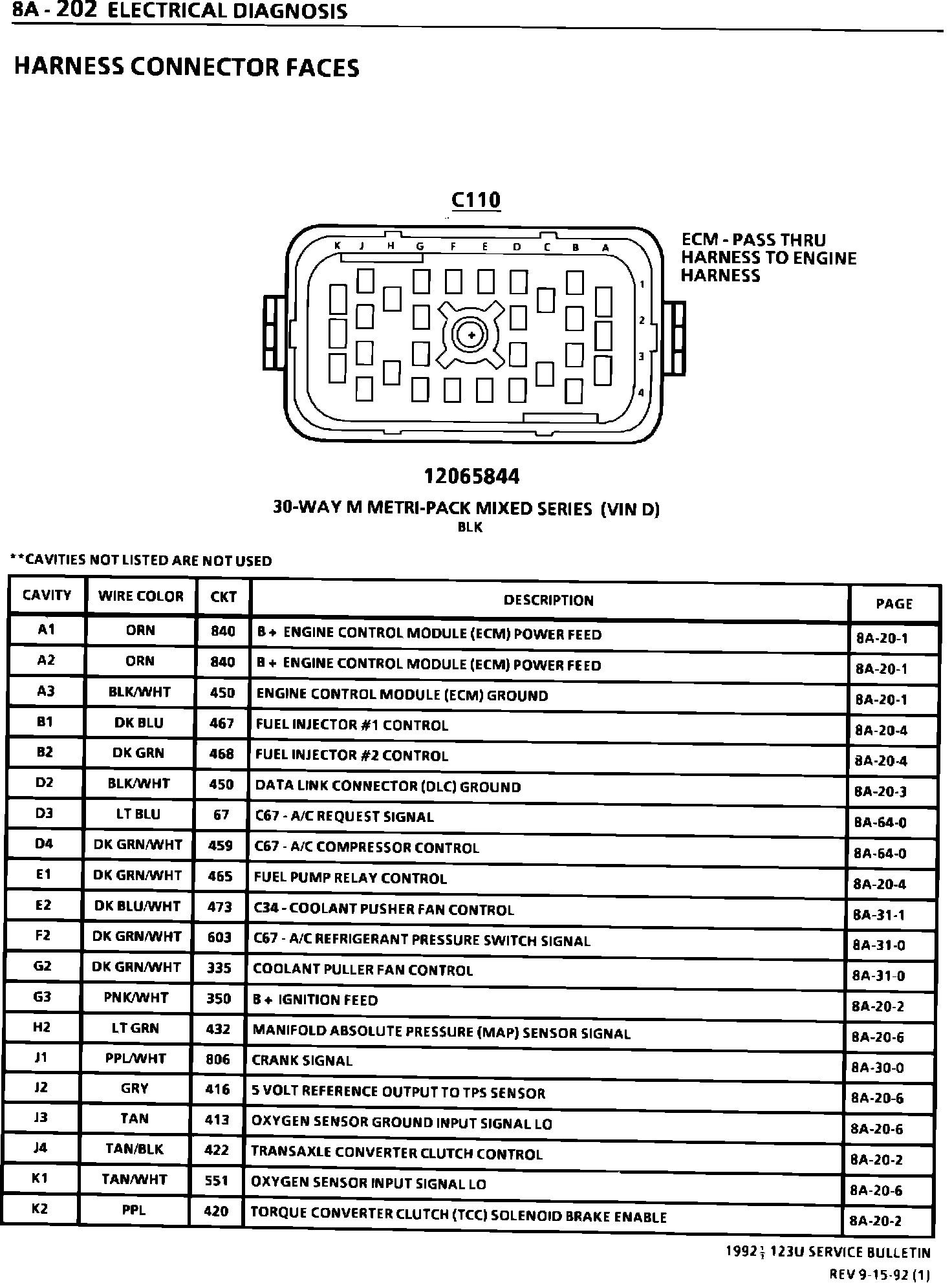

C111 30-WAY M METRI-PACK MIXED SERIES (VIN D)

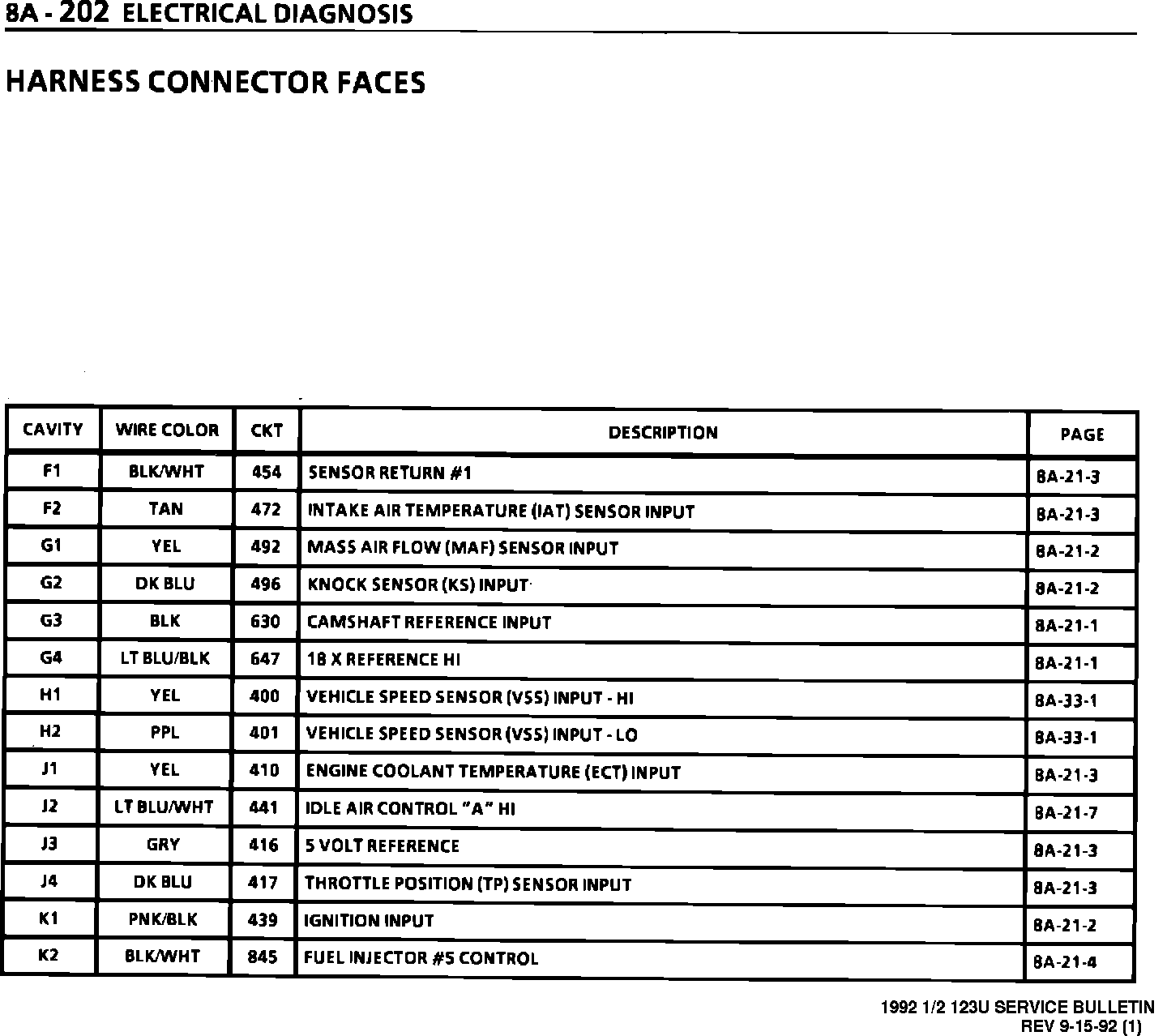

C111 30-WAY M METRI-PACK MIXED SERIES (VIN L)
