Pontiac Truck
>>
1992
>>
Trans Sport V6-3800 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Sequential Fuel Injection
>>
Connector C2
Connector C2

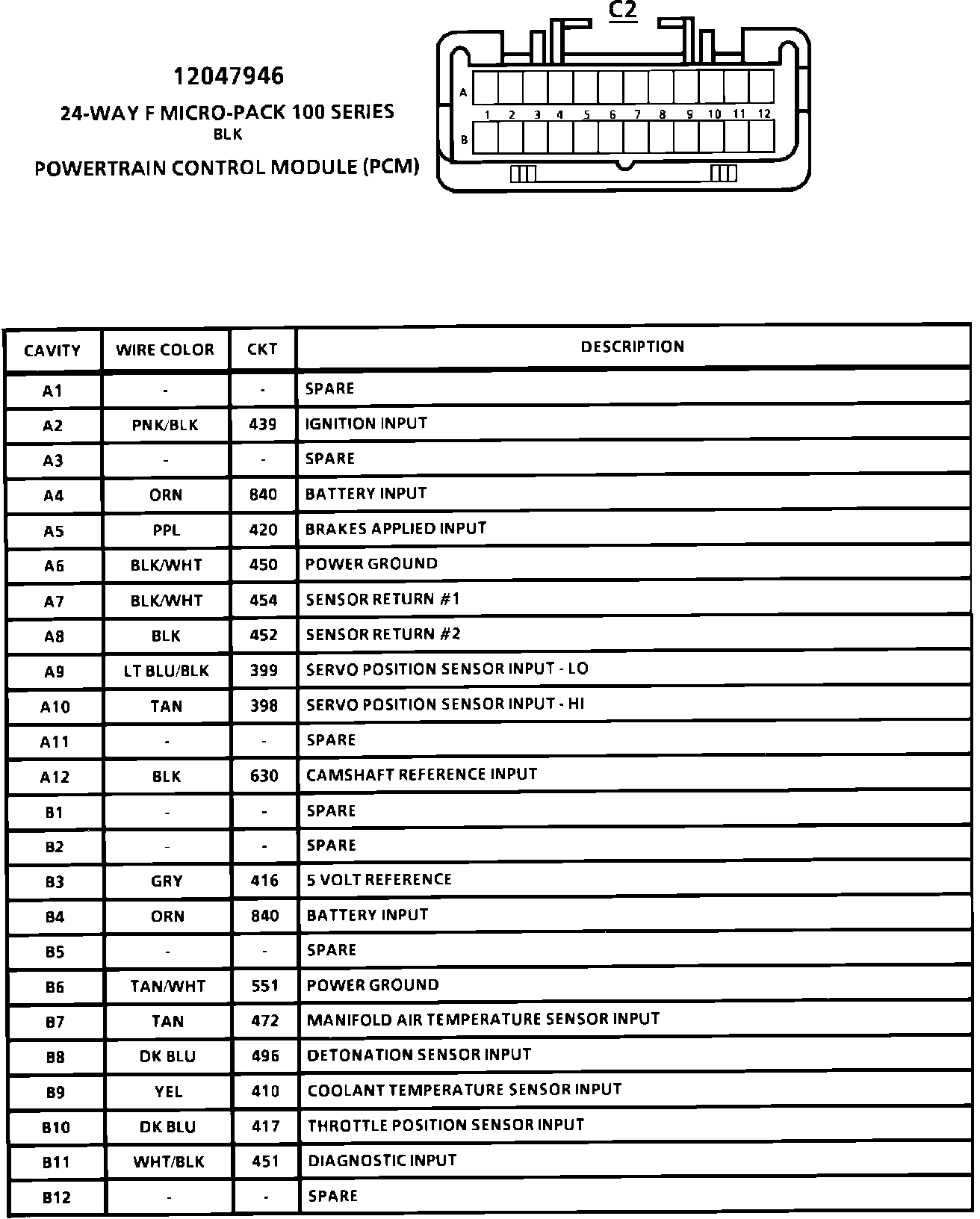

Powertrain Control Module Connector: C2:
