Drive Belt: Service and Repair

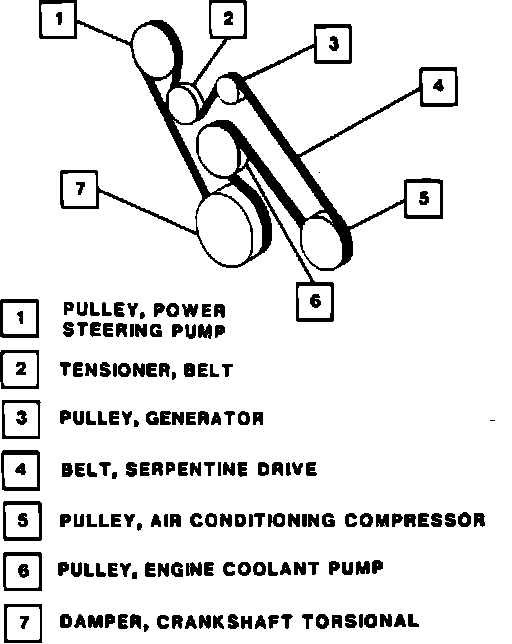

Fig. 20 Serpentine Belt Routing:

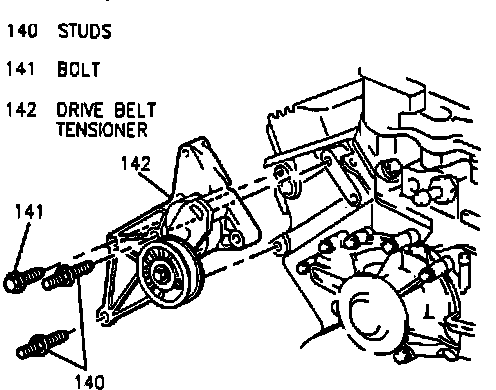

Fig. 21 Removing Belt Tensioner:

BELT TENSIONER
1. Disconnect battery ground cable.
2. Remove serpentine drive belt, then the tensioner pulley attaching bolt.
3. Remove pulley, then the power steering pump from bracket and position aside.
4. Remove tensioner attaching bolt and studs, Fig. 21.
5. Reverse procedure to install.

BELT
1. Disconnect battery ground cable.
2. Remove belt tensioner pulley, then the belt.
3. Reverse procedure to install, refer to Fig. 20 for belt routing.
