Procedures, Windshield Wiper Frame

Remove Or Disconnect

Drain engine coolant. Refer to SECTION 6B.

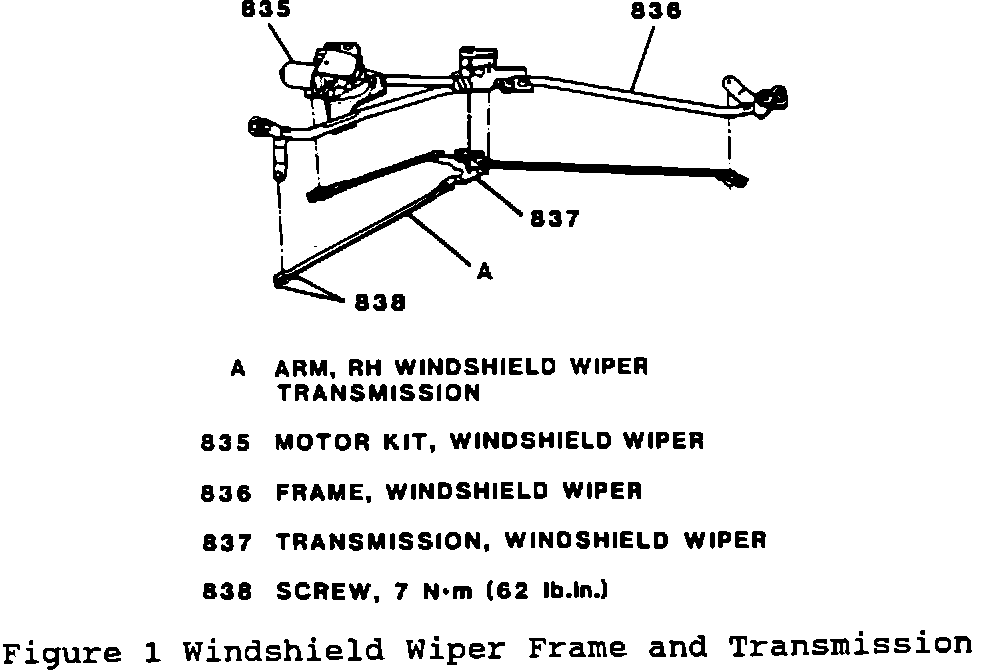

1. Two screws (838) attaching RH windshield wiper transmission (837) arm to windshield wiper frame (836) (Figure 1).



Move RH windshield wiper transmission arm aside to gain access to heater hoses.
