Pontiac Truck
>>
1992
>>
Trans Sport V6-3800 3.8L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

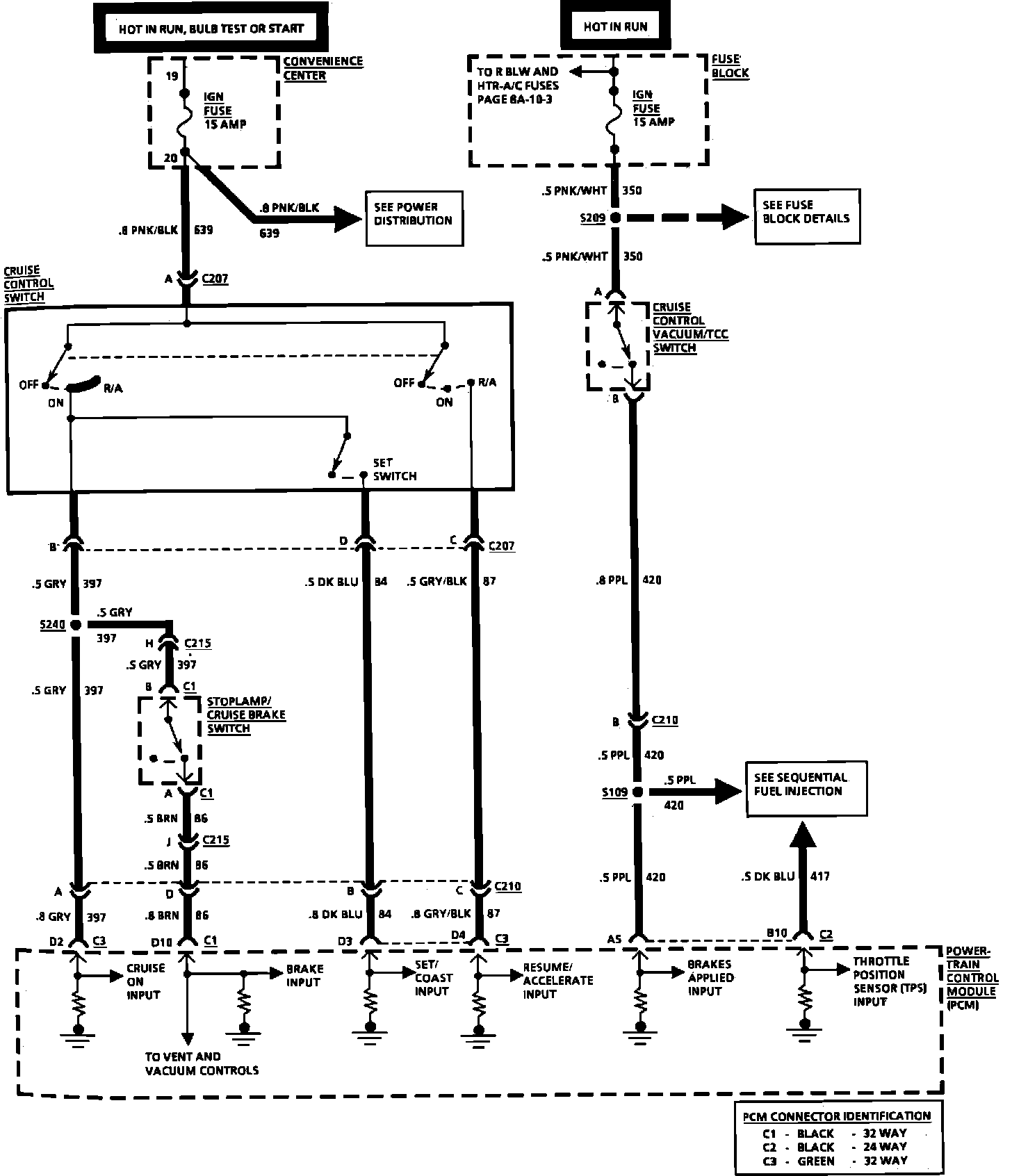

Fig. 38 Cruise control wiring diagram (Part 1 Of 2):

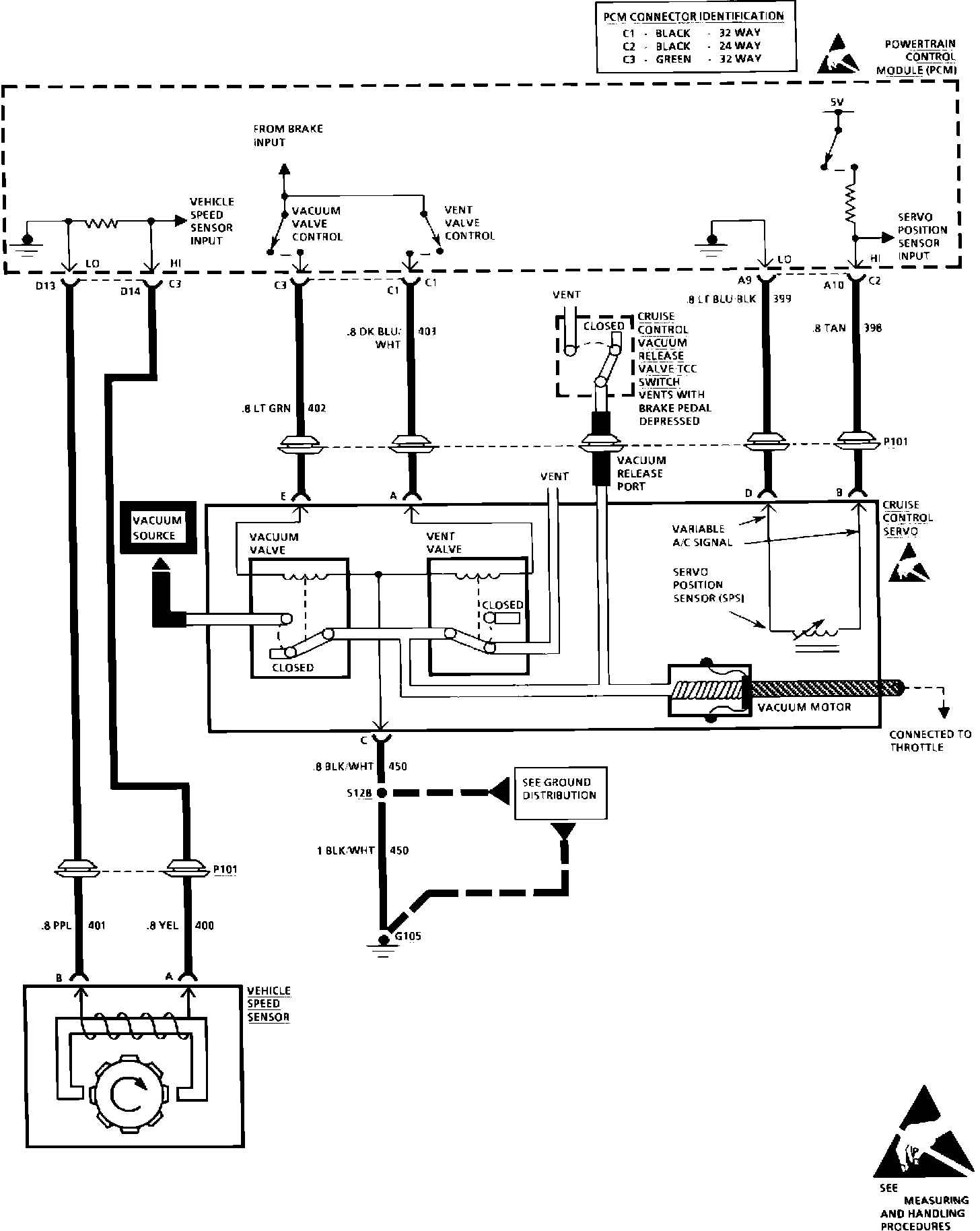

Fig. 38 Cruise control wiring diagram (Part 2 Of 2):

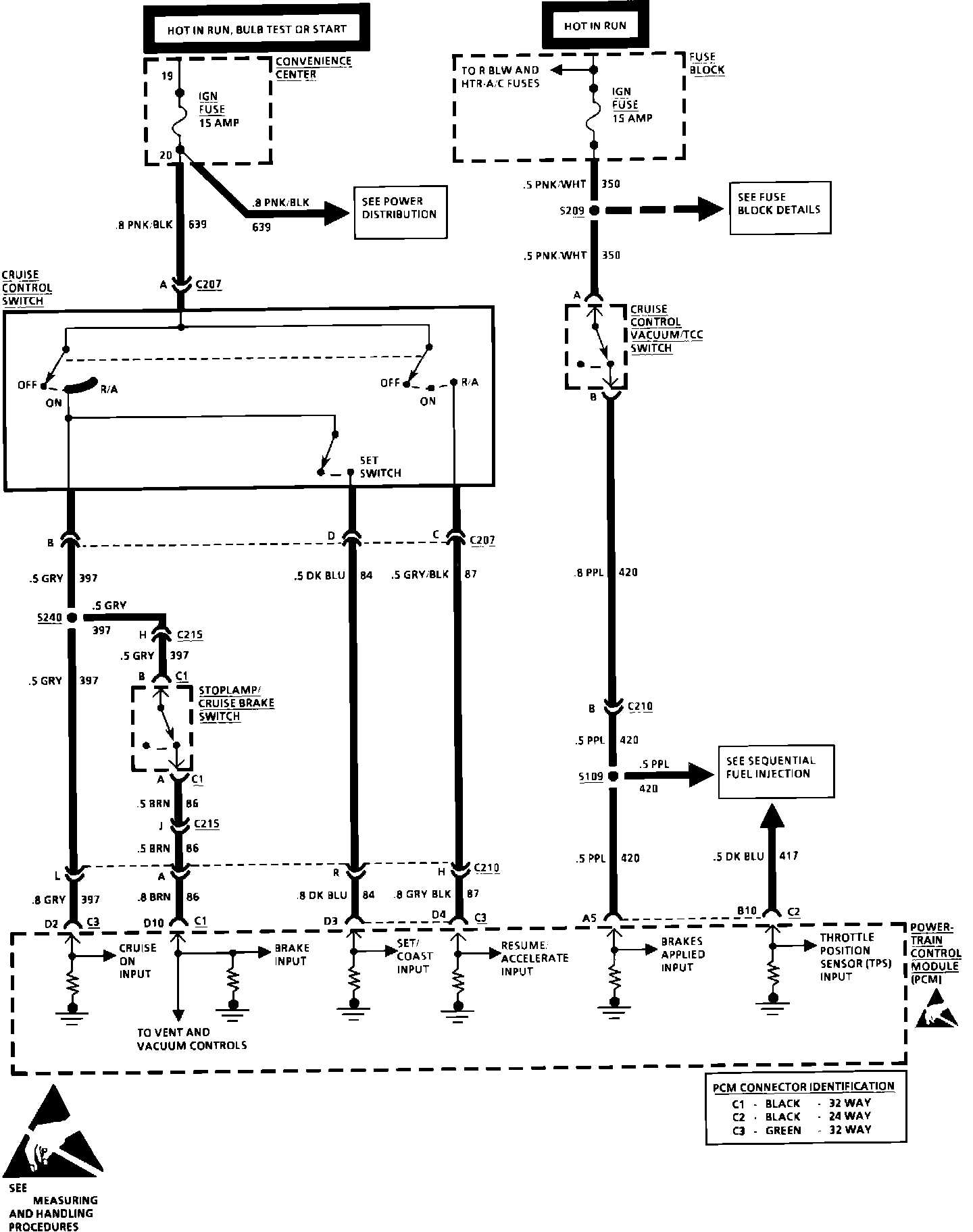

Cruise Control:

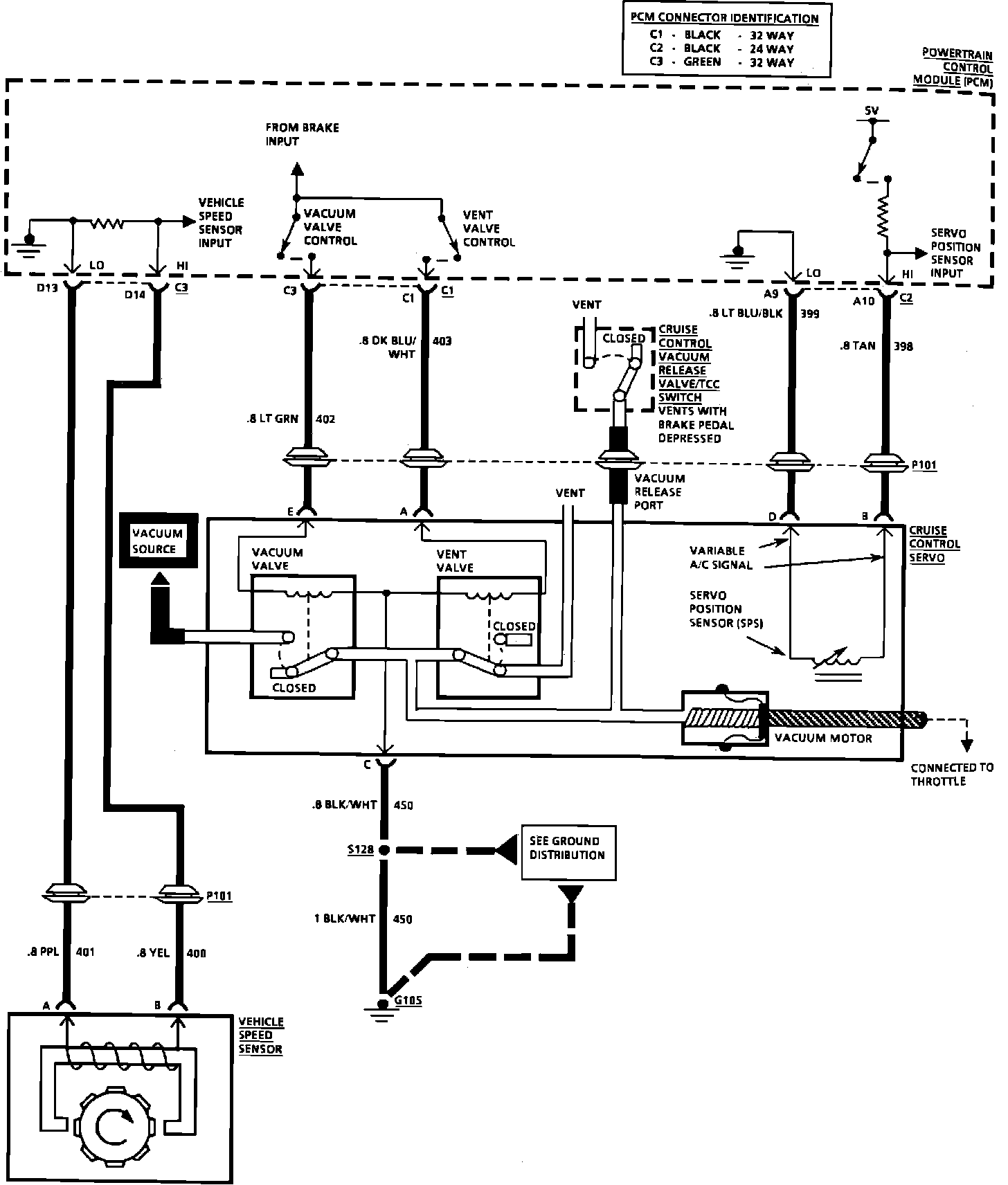

Cruise Control:
