ABS Main Relay: Service and Repair

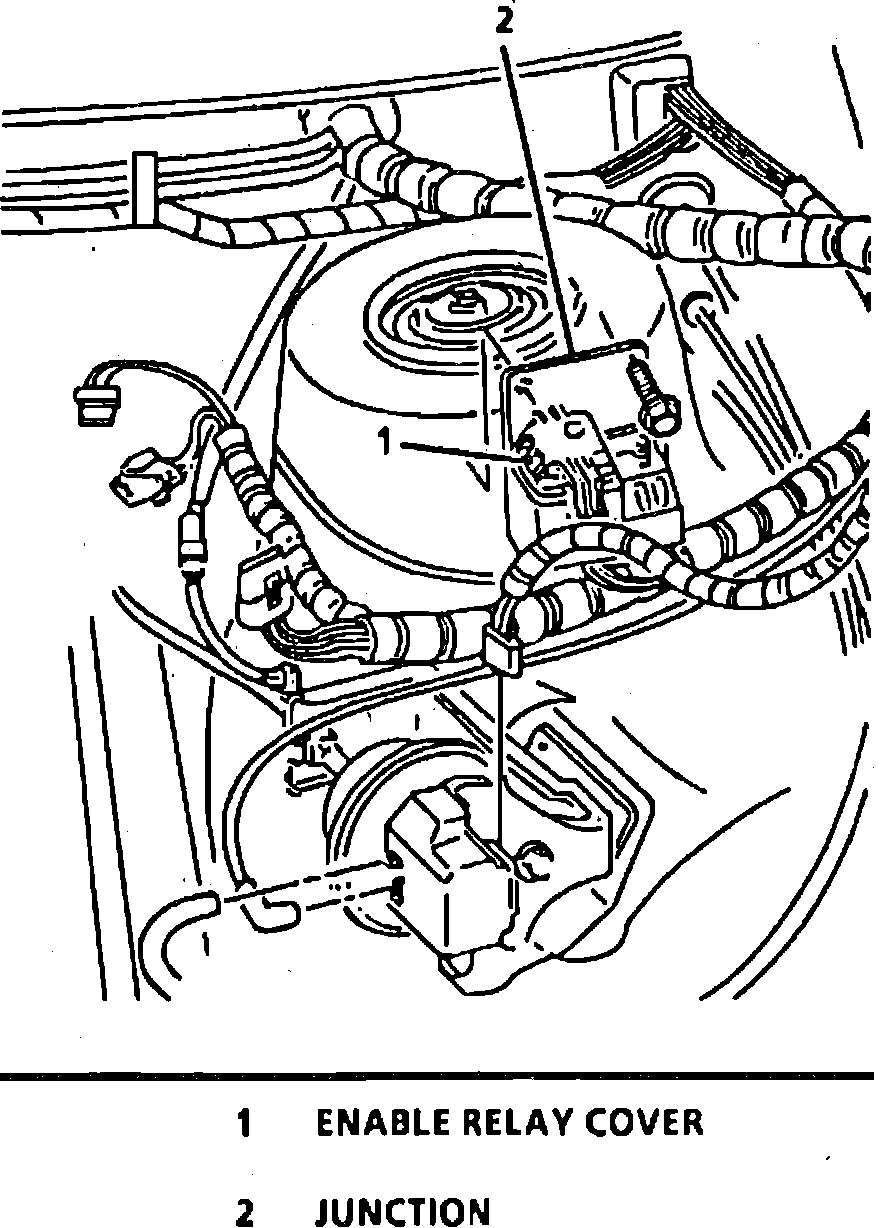

Fig. 67 Enable Relay Replacement:

1. Disconnect battery ground cable.
2. Remove enable relay cover, Fig. 67.
3. Disconnect relay from electrical connector.
4. Reverse procedure to install.
