Home >> Pontiac Truck >> 1992 >> Trans Sport V6-191 3.1L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Tank Unit >> Locations

Fuel Tank Unit: Locations

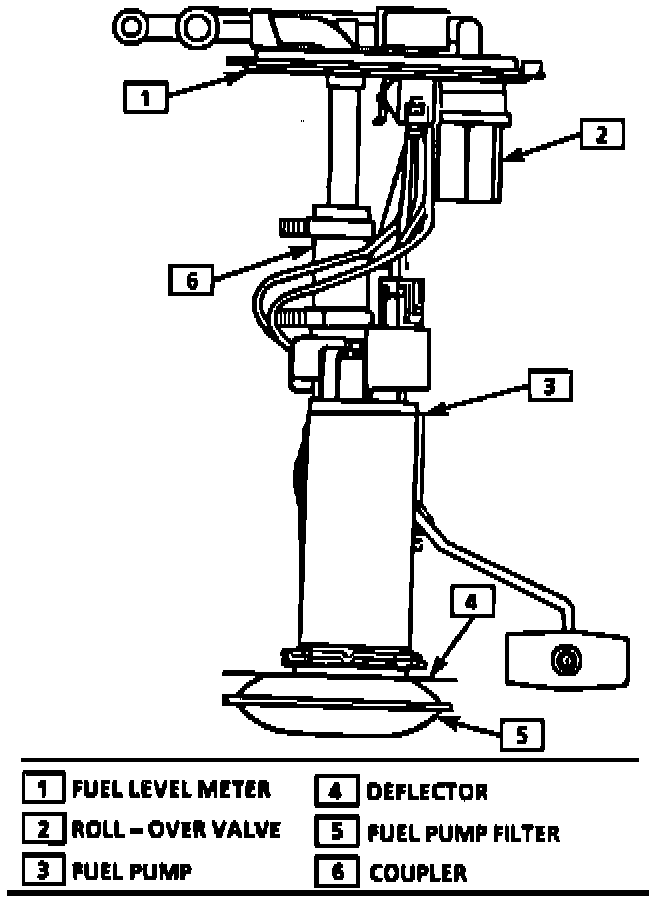

Fuel Pump And Fuel Level Assembly:

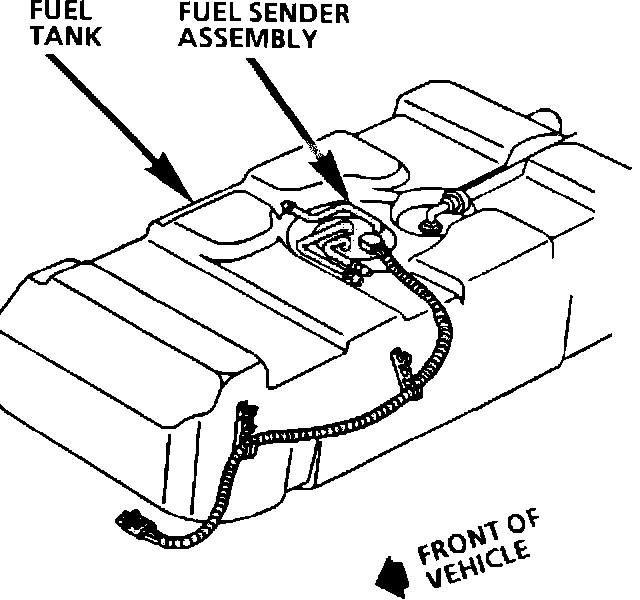

Fuel Tank:
