Engine Controls - Revised Charts C10 & C12, ECM Wiring

9210pontiac01

Bulletin Number: 92-6-24
Reference Number: 216504
Publish Date: 2/92


Subject: SERVICE MANUAL UPDATE - SECTION 6E2 REVISED PAGES

Models
Affected: 1992 TRANS SPORT MODELS WITH
3.1L (VIN D) RPO LG6


The following pages are revisions to the 1992 Trans Sport Service Manual and reflect current changes to these vehicles.

Current revisions include the following pages.

Figure A:

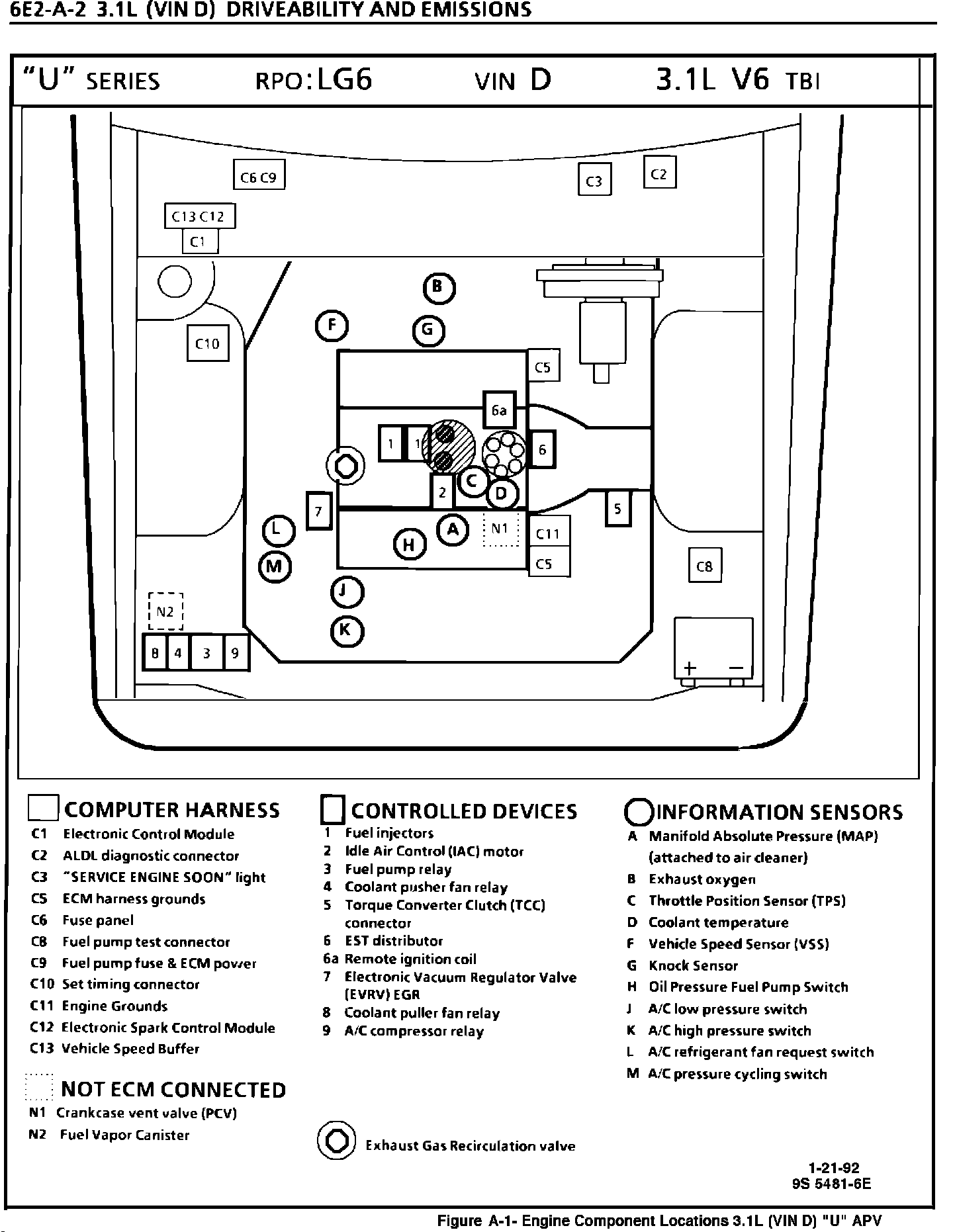

6E2-A2 Component Location - Figure A-1.

Figure A-2:

6E2-A3 ECM Wiring Diagram - Figure A-2

Figure A-5:

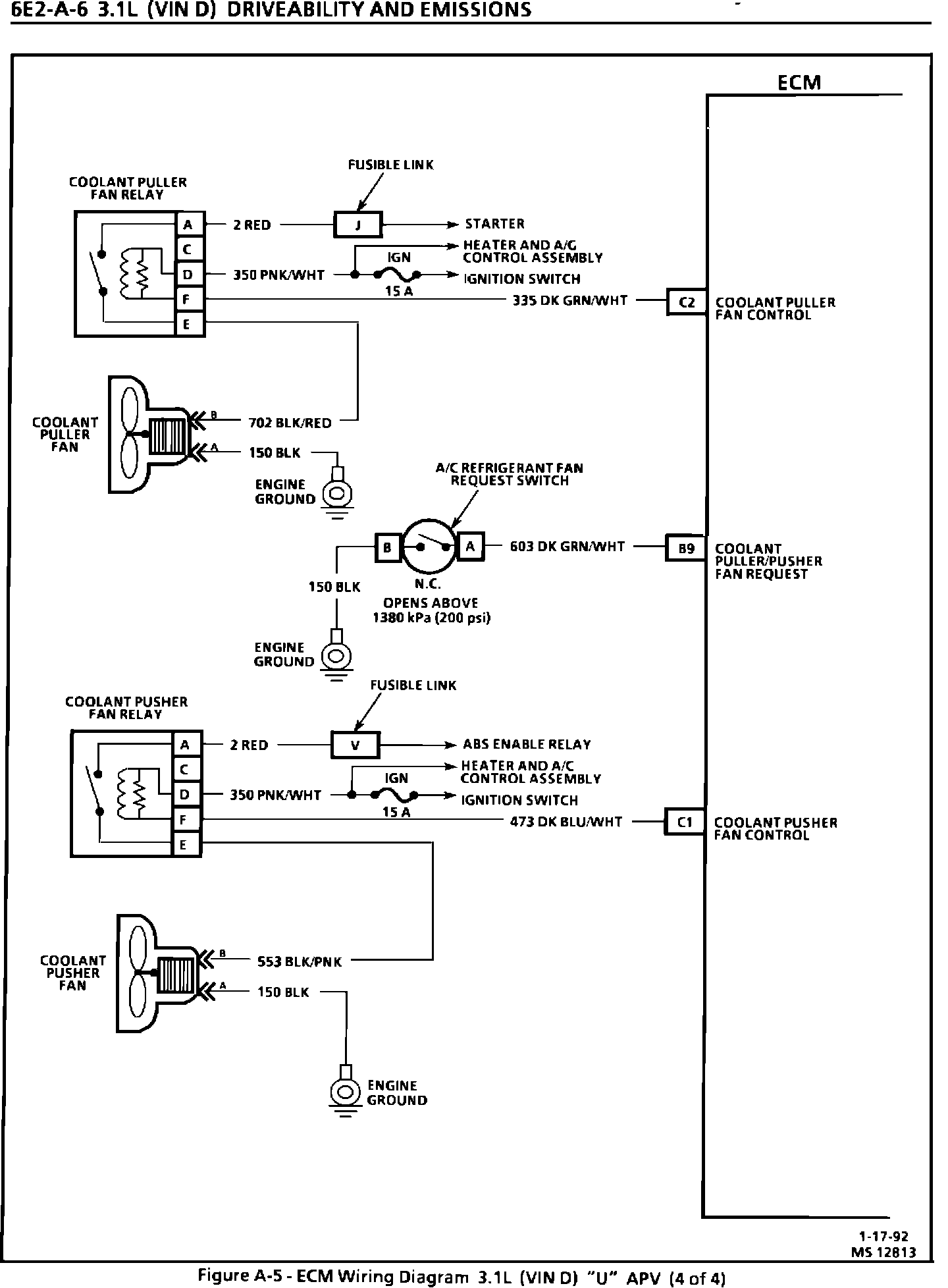

6E2-A6 ECM Wiring Diagram - Figure A-5

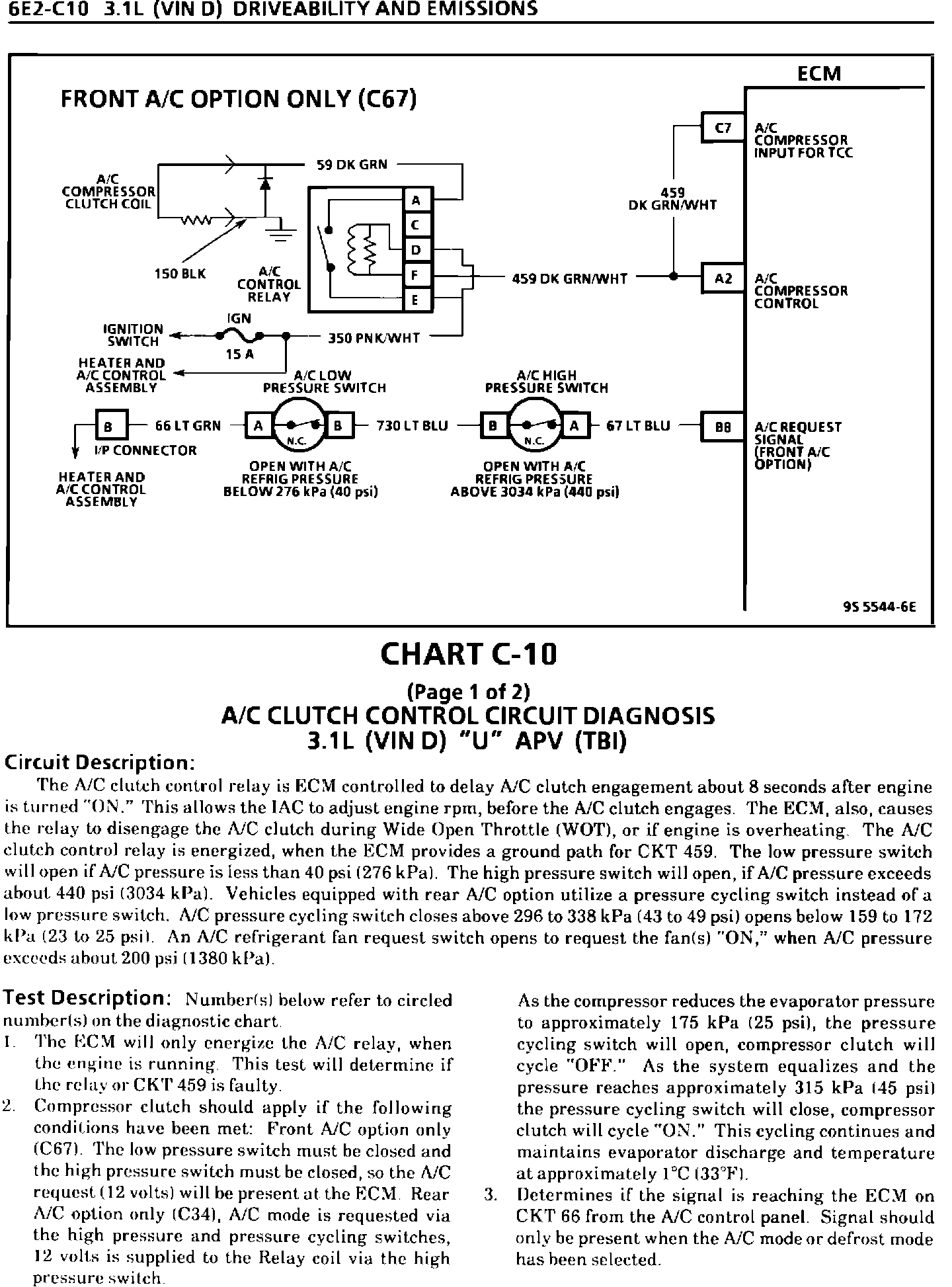

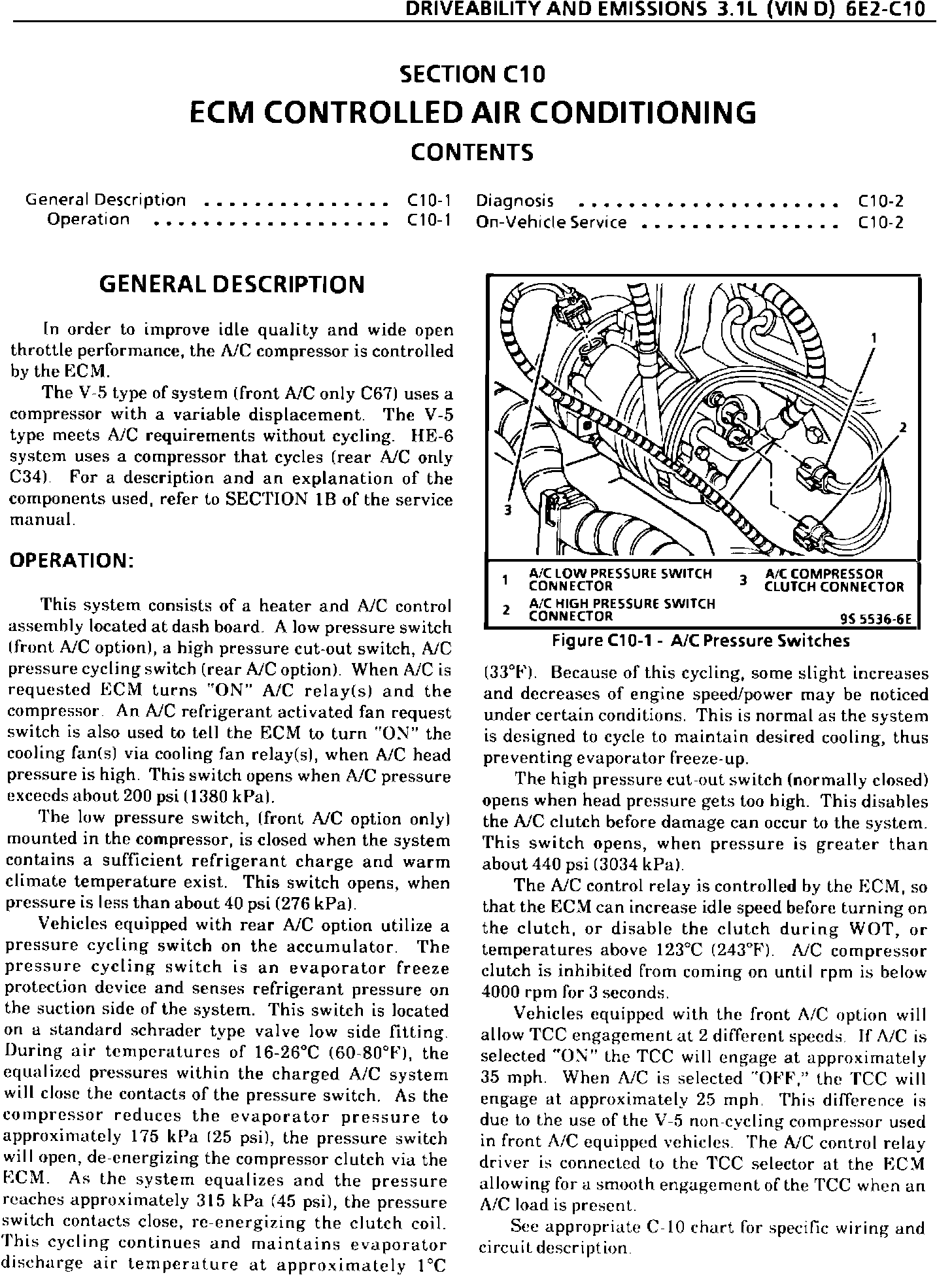

Section 6E2-C10 ECM Controlled Air Conditioning "Operations".

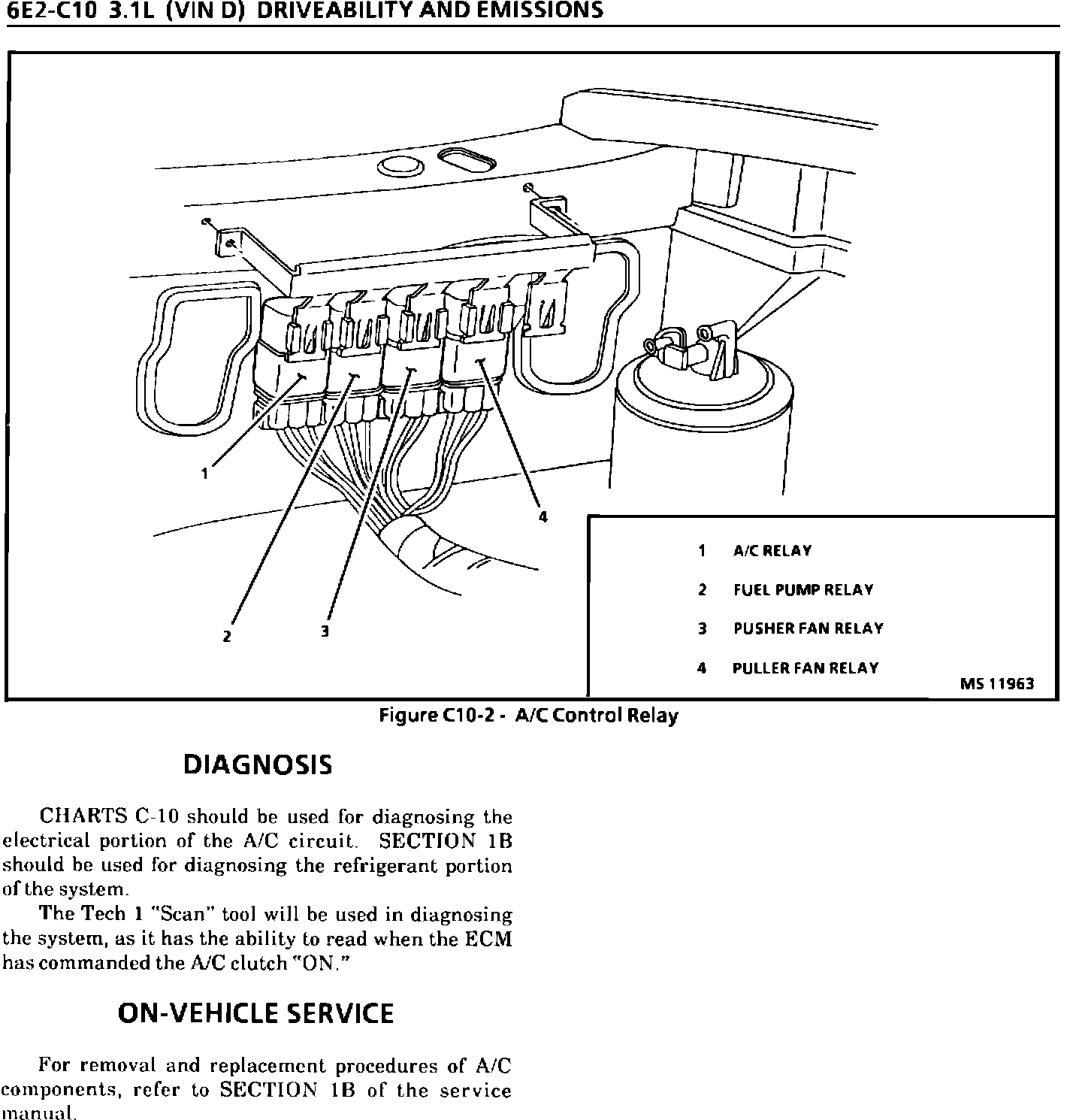

Section 6E2-C10 A/C Control Relay Center

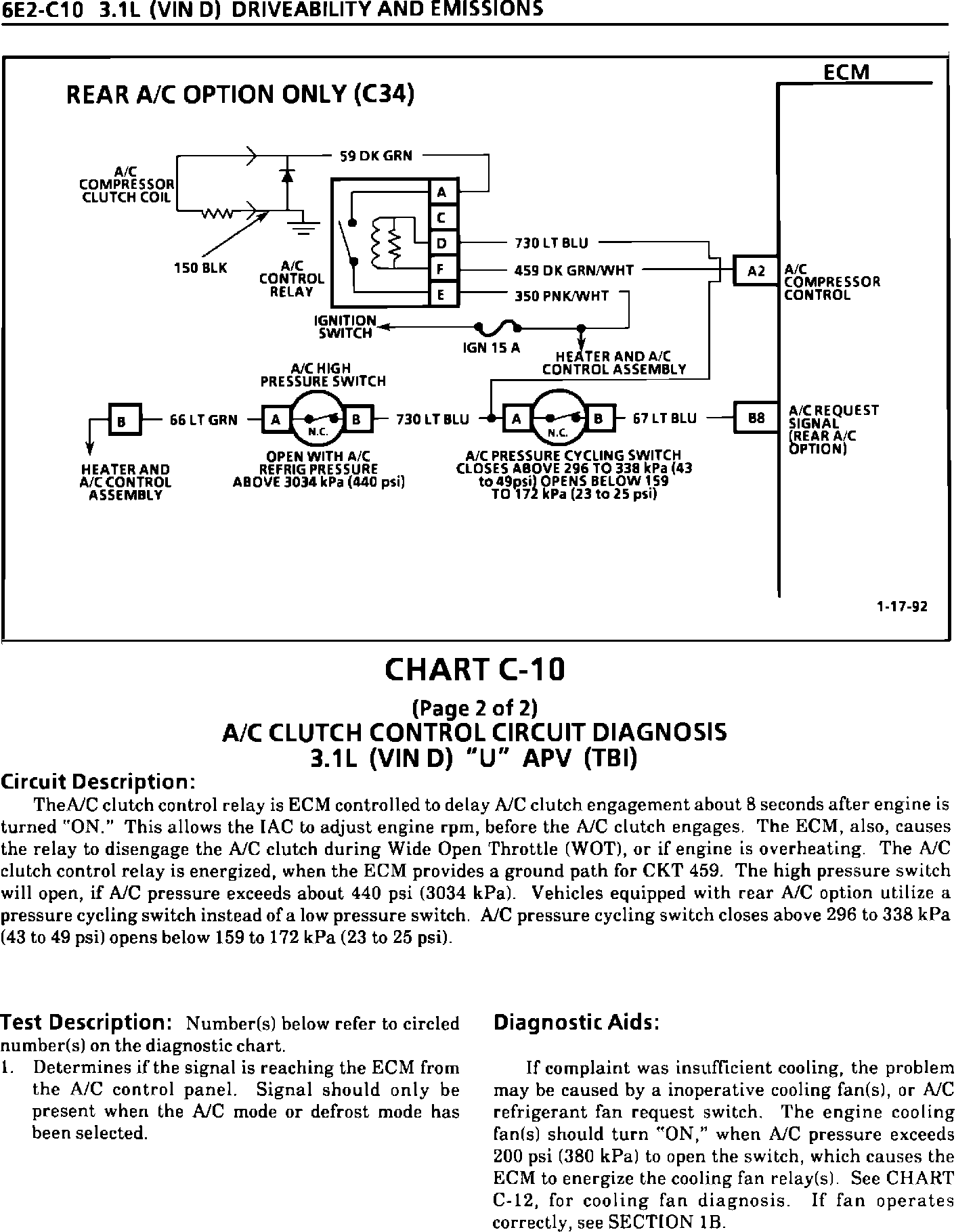

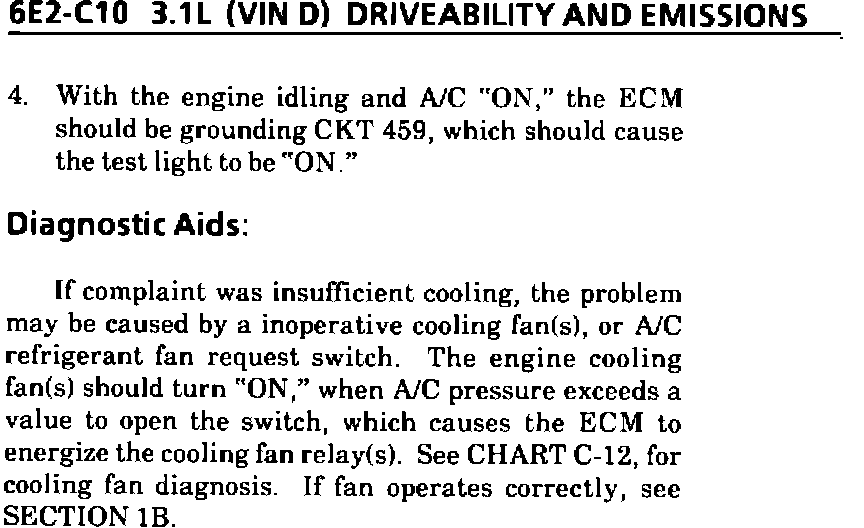

Section 6E2-C10 Diagnostic Chart C10








Section 6E2 C10 Diagnostic Chart C10

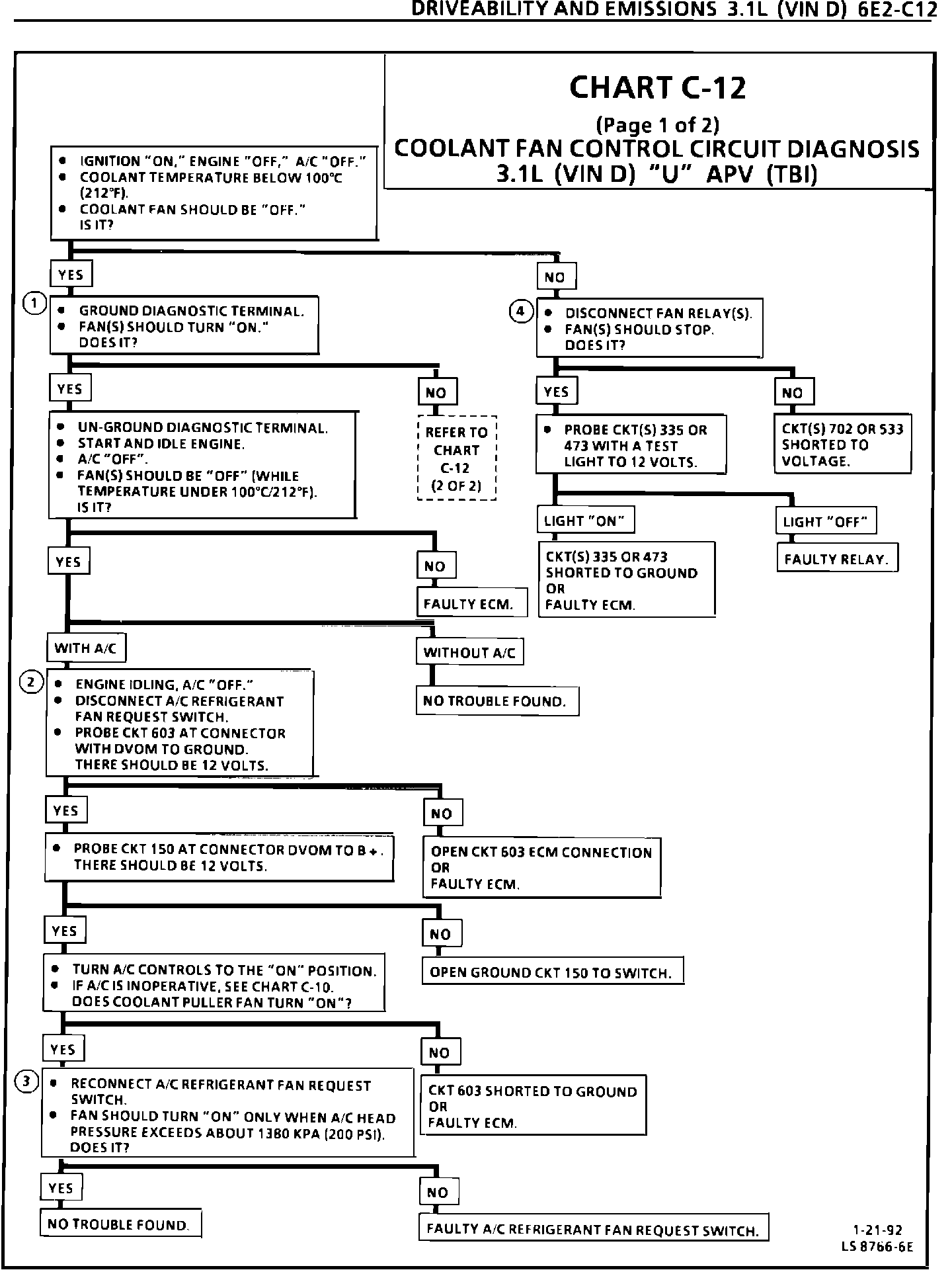

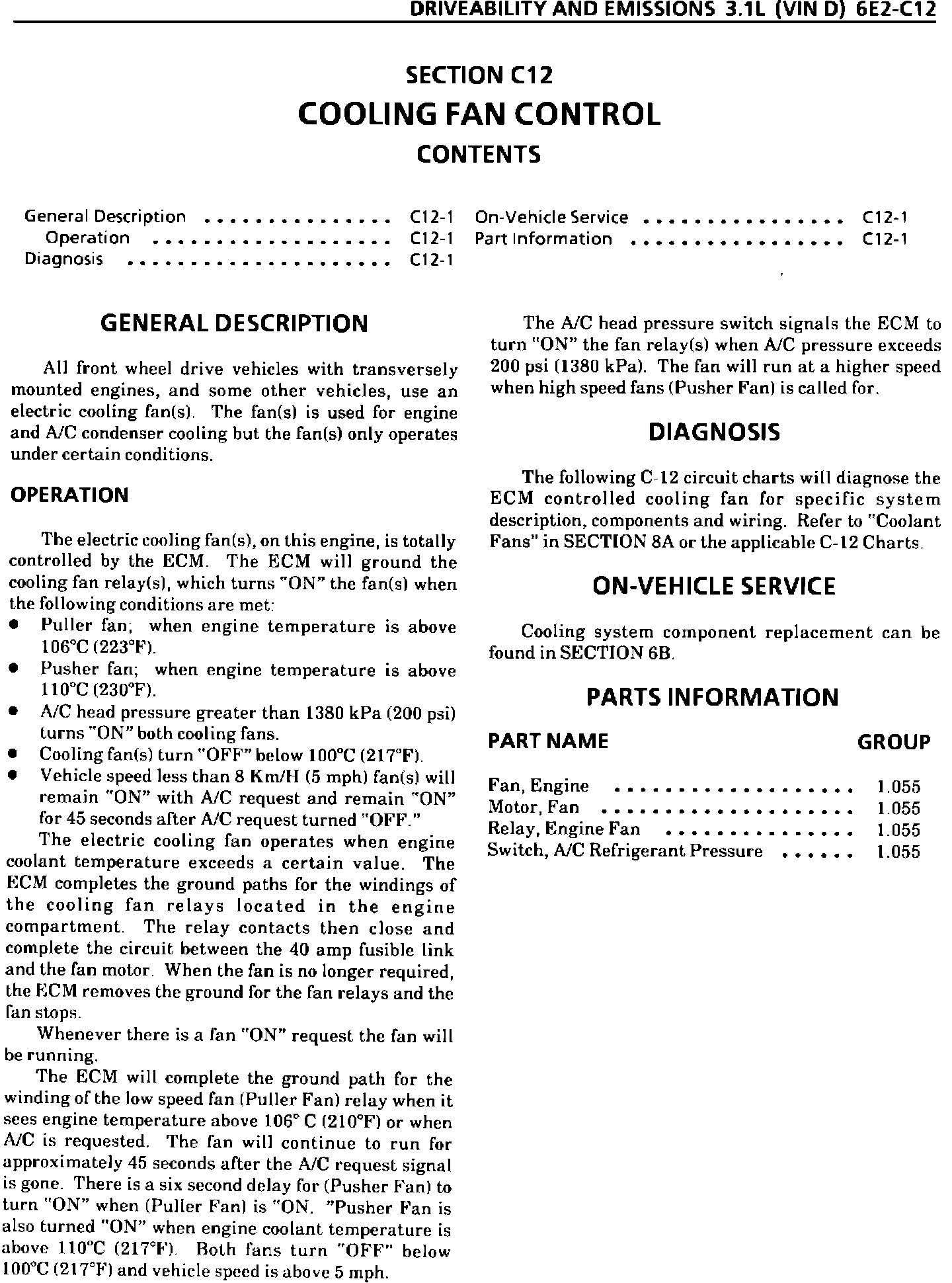

Section 6E2-C12 Coolant Fan Control "Operations".

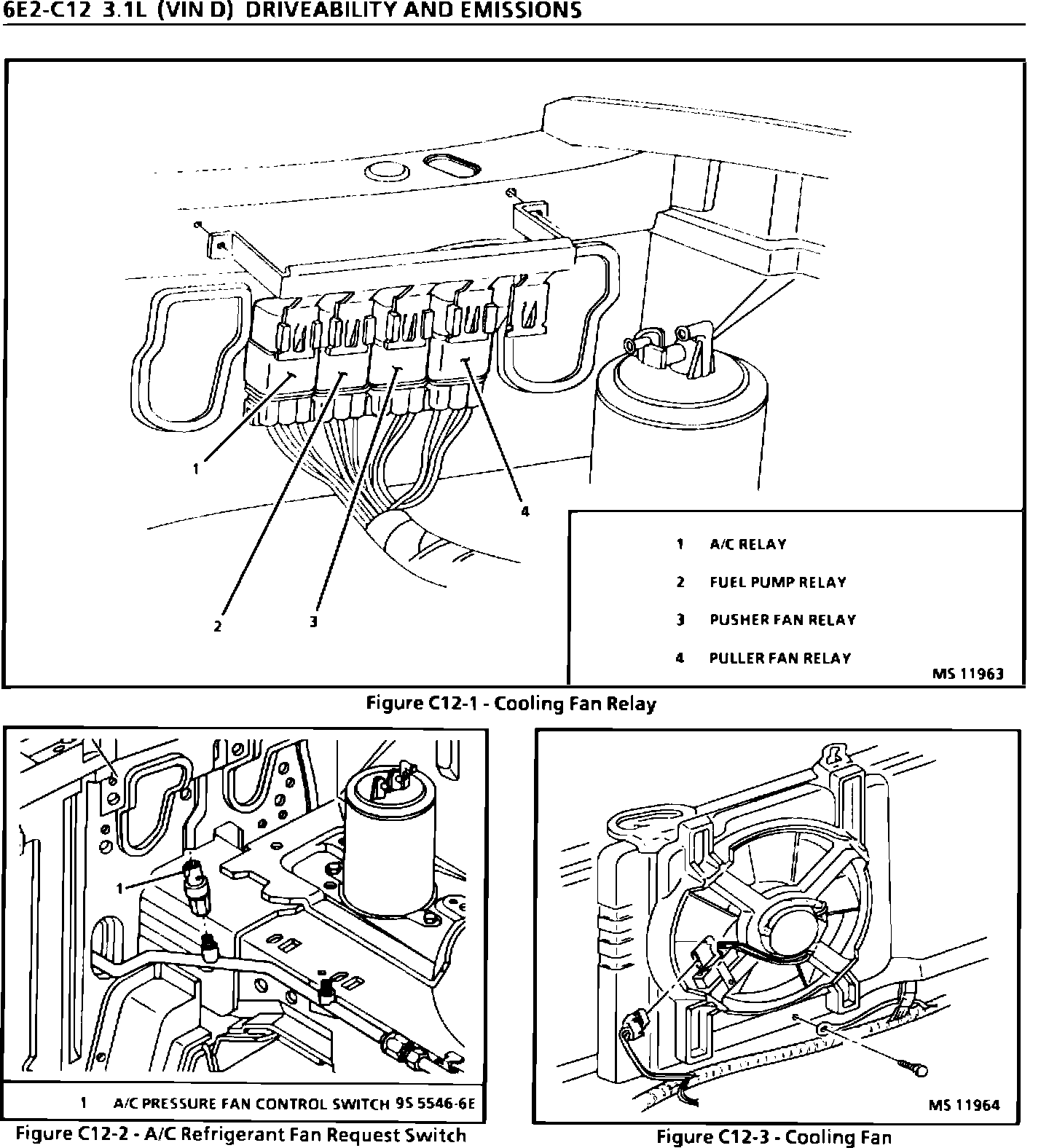

Section 6E2-C12 Coolant Fan Relay Locations.

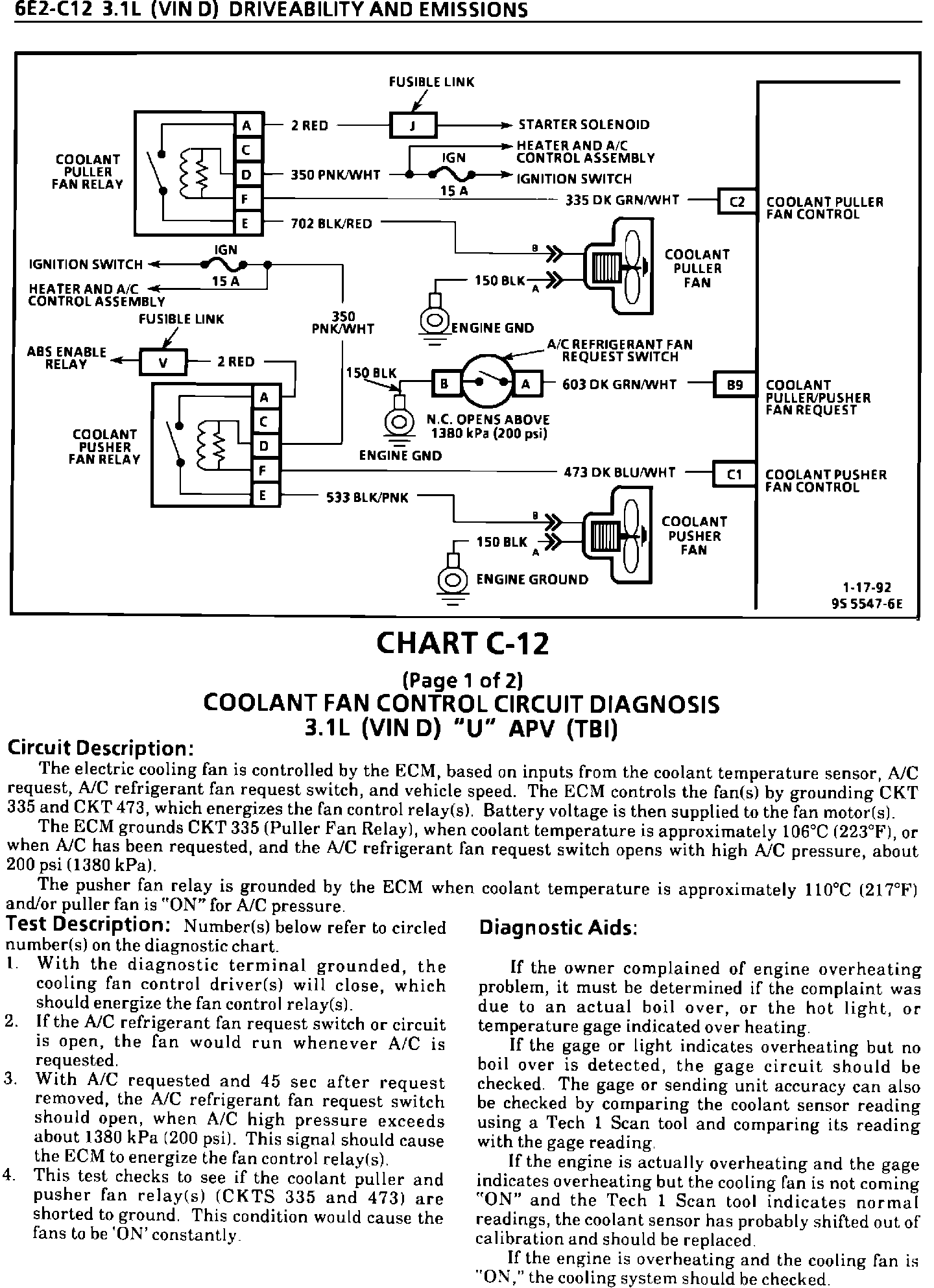

Section 6E2-C12 Diagnostic Chart C12

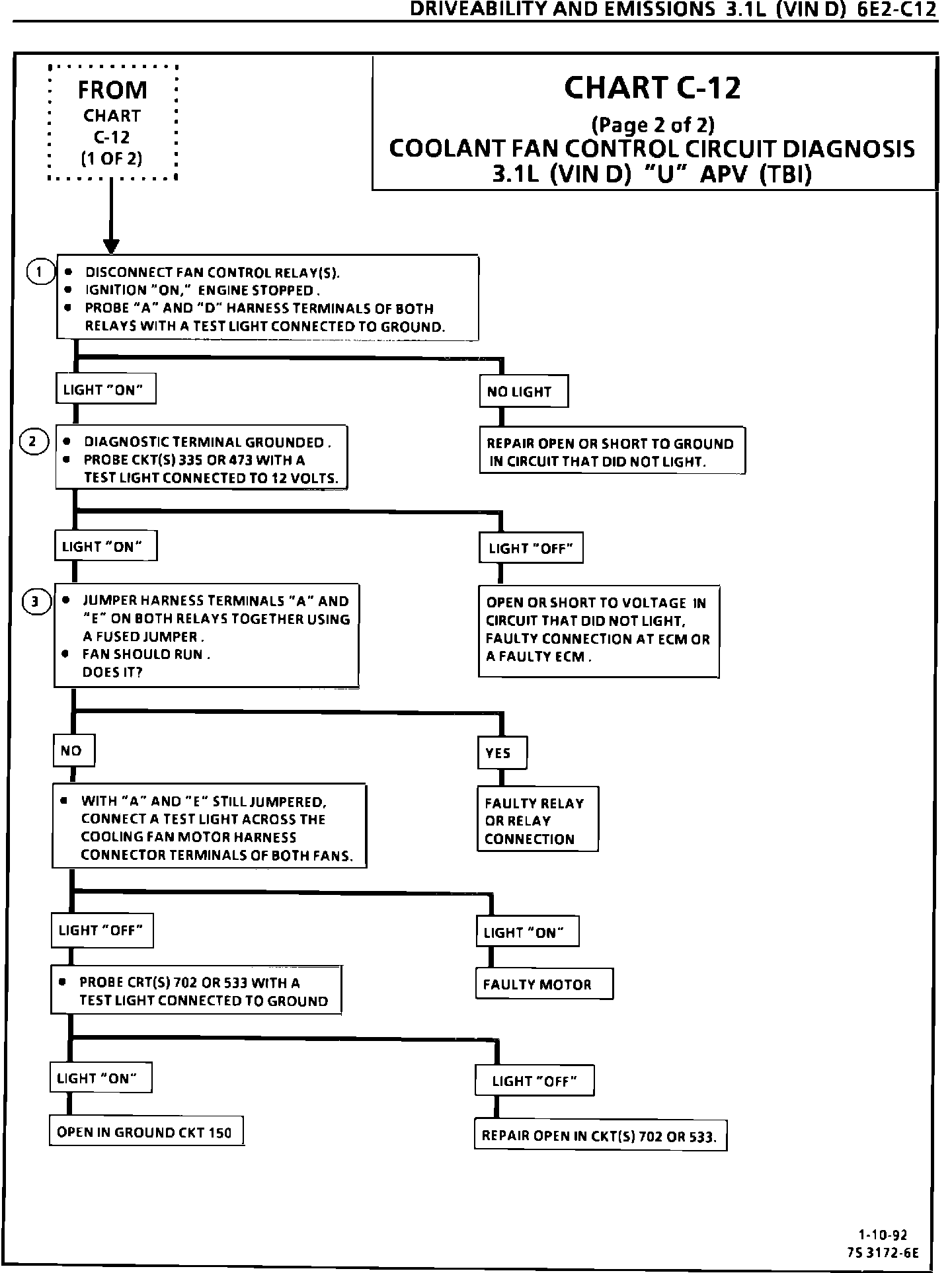

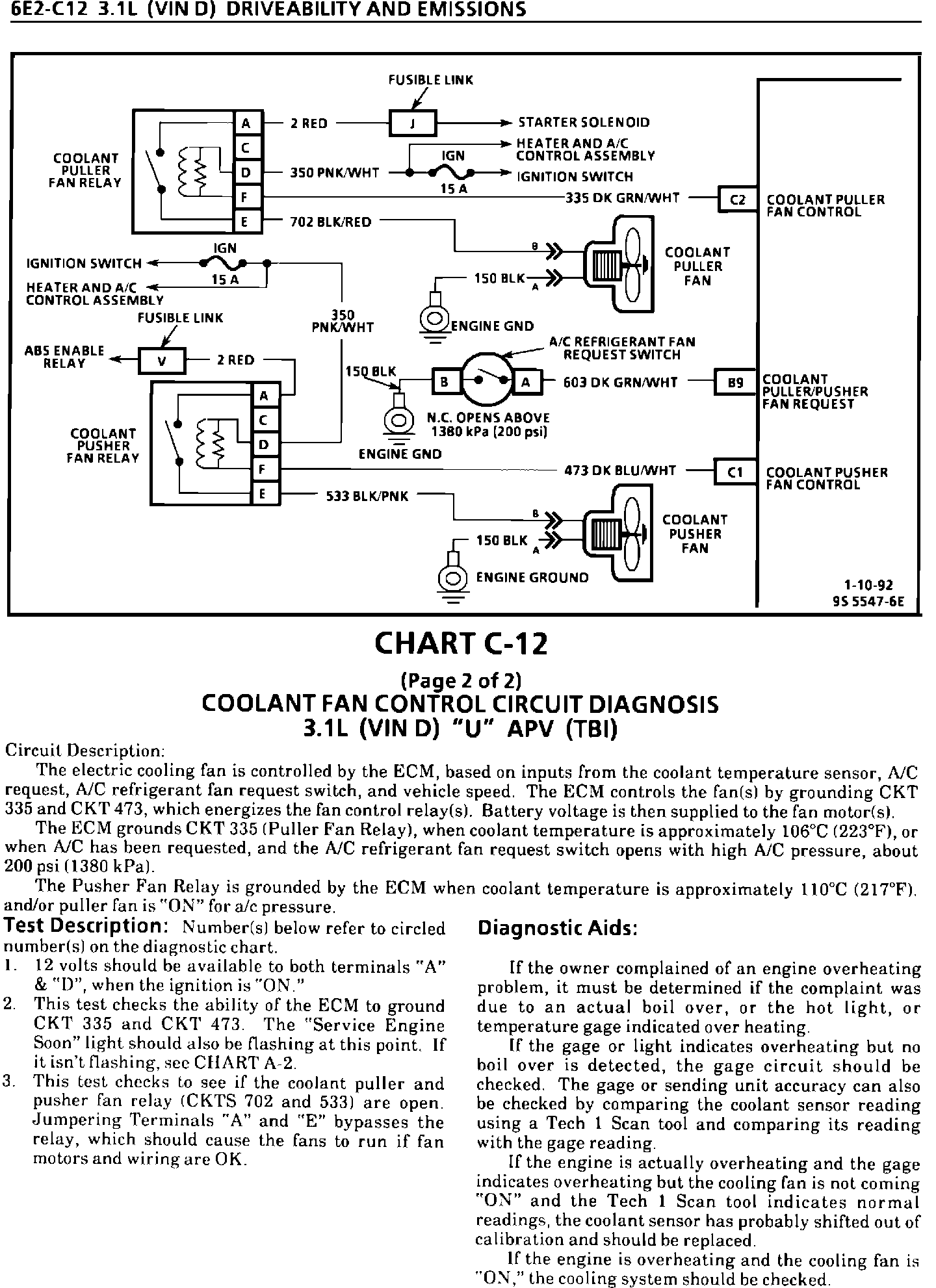

Section 6E2-C12 Diagnostic Chart C12


This bulletin indicates current hardware changes due to the availability of a rear A/C option package for all 1992 Trans Sport vehicles.
