Chart 8 - Air Flow From Outlets Is Incorrect
Chart 8 - Air Flow From Outlets Is Incorrect

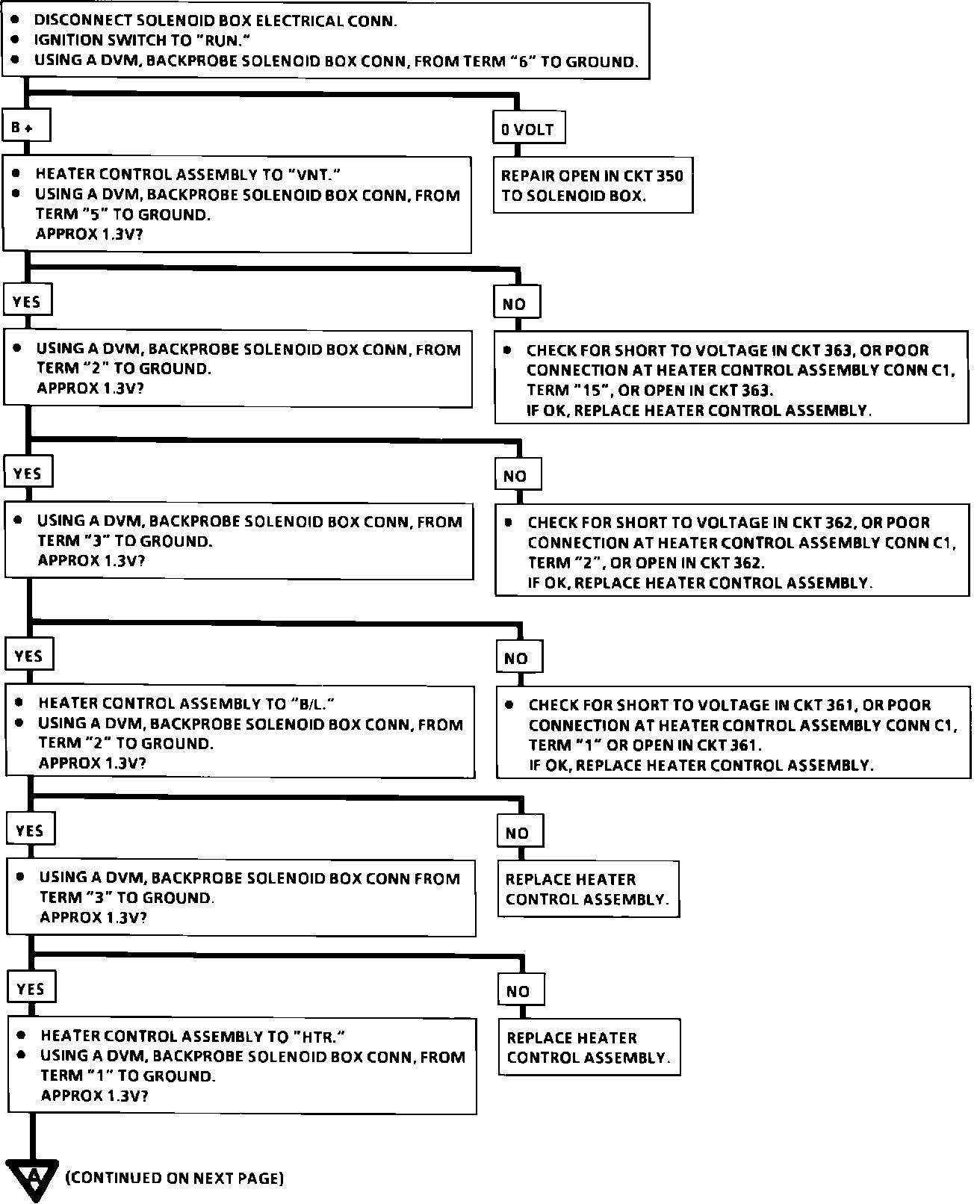

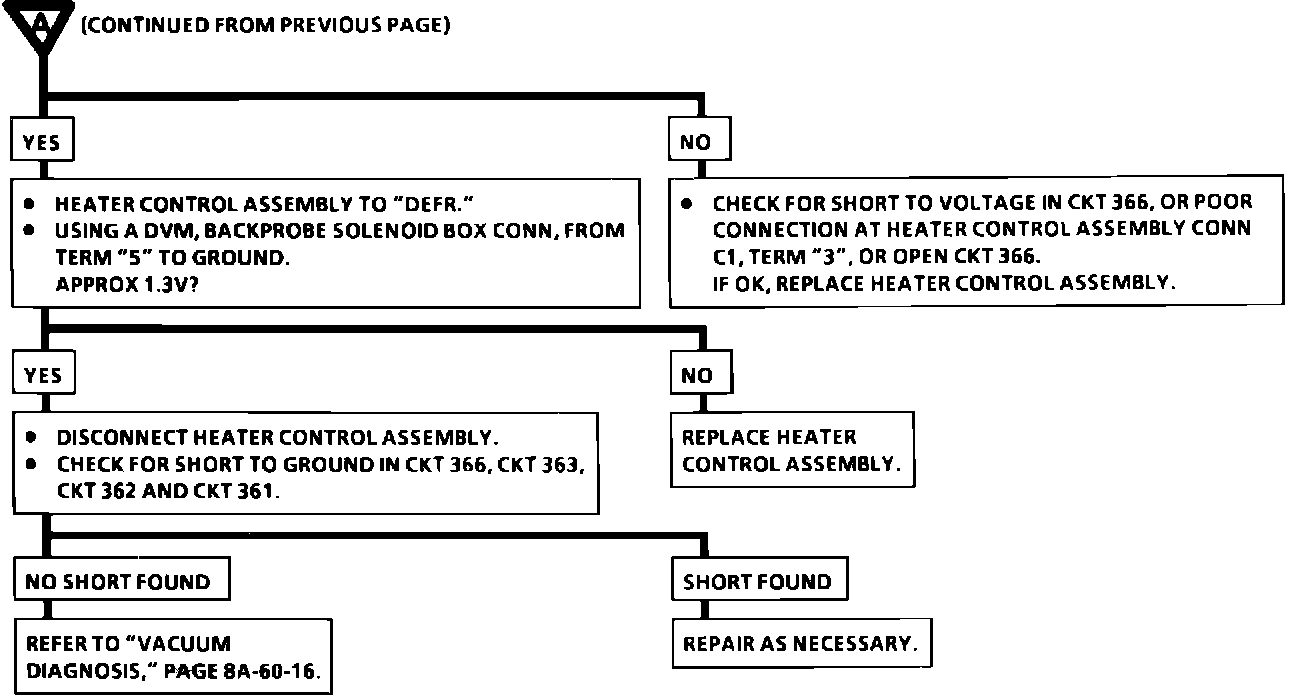

Chart #8 - Air Flow From Outlets Is Incorrect:
Chart #8 - Air Flow From Outlets Is Incorrect:
