Glove Box Compartment

Open I/P compartment door.

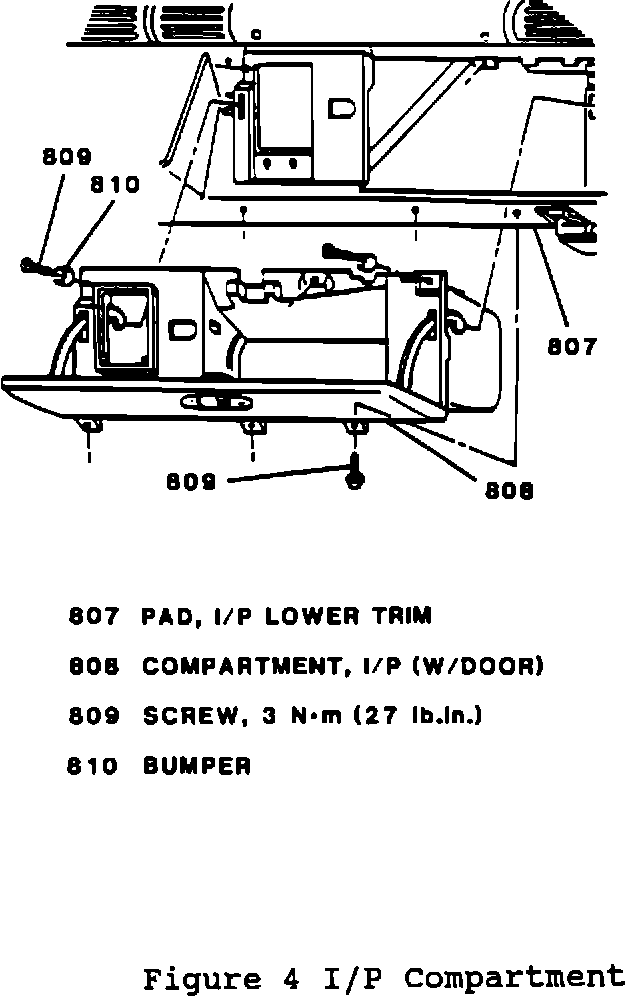

7. Three screws (809) from bottom of I/P compartment insert (808) (Figure 4).



8. Three upper I/P compartment screws (809) with two bumpers (810) (Figure 4).

9. Electrical connector from I/P compartment lamp and switch assembly.

10. I/P compartment (with door) (808) from I/P (Figure 4).

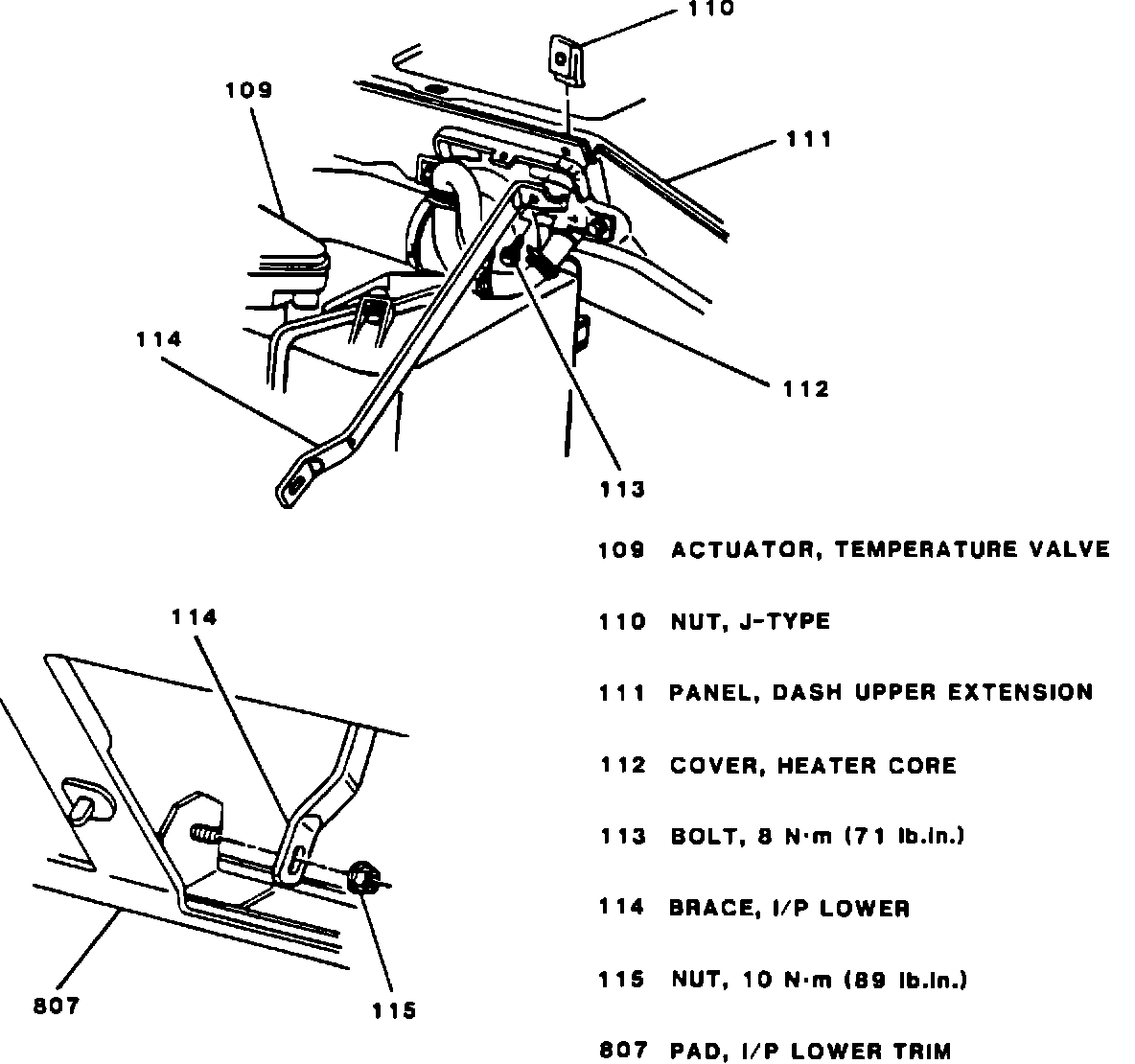

11. Bolt (113) and nut (115) from I/P lower brace (114) (early model vehicles) (Figure 5).



12. I/P lower brace (114) from I/P (early model vehicles) (Figure 5).

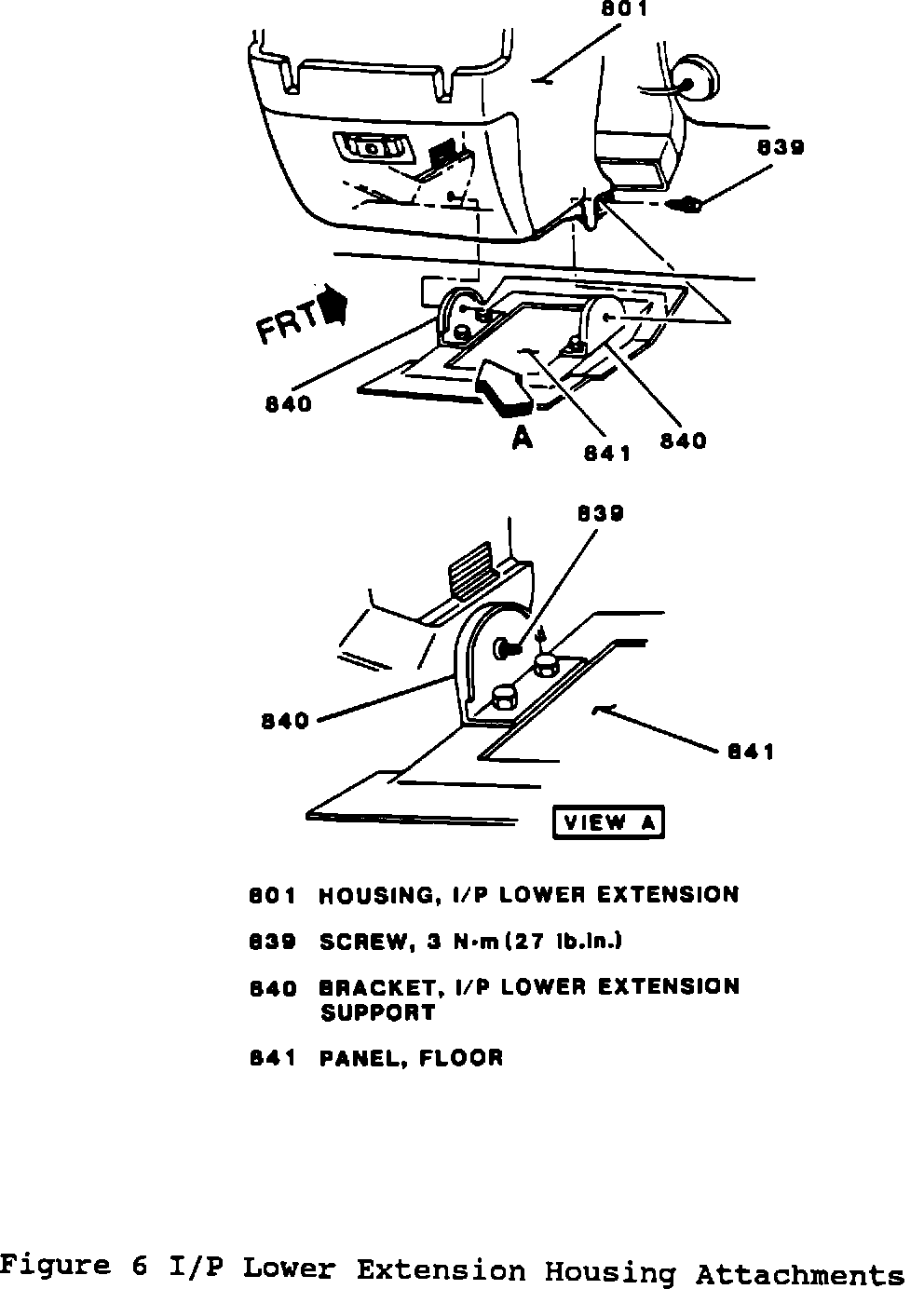

13. Two screws (839) retaining I/P lower extension housing (801) to I/P lower extension support bracket (840) (Figure 6).
