Home >> Pontiac Truck >> 1992 >> Trans Sport V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Chart #7 - Rear Aux Switch Inoperative, Primary Switch OK

Chart #7 - Rear Aux Switch Inoperative, Primary Switch OK

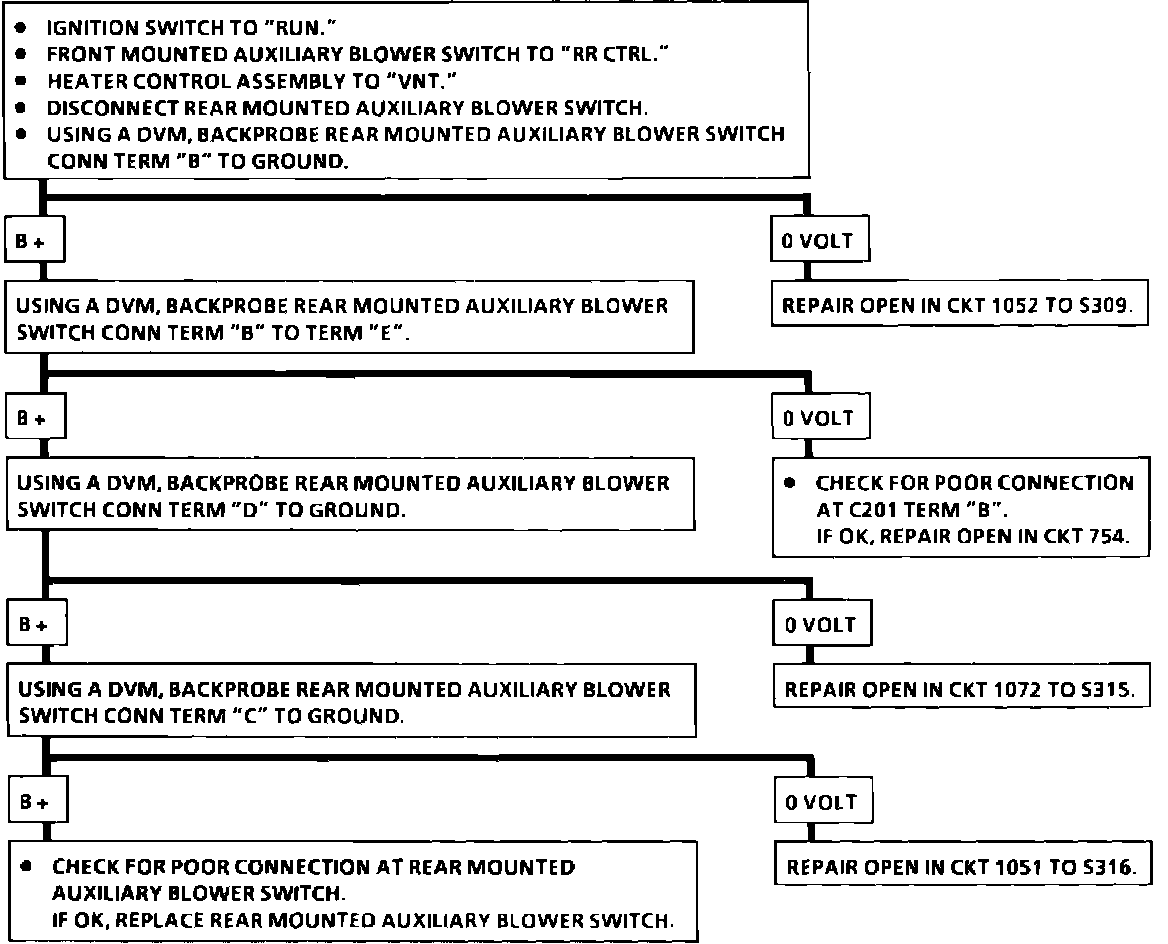

Chart #7 - Rear Mounted Auxiliary Blower Switch Inoperative Or One Or Two Speeds Inoperative - Front Mounted Auxiliary Blower Switch Fully Operative:
