Pontiac Truck
>>
1992
>>
Trans Sport V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Doors
>>
Sliding Door Lock Motor Control
Sliding Door Lock Motor Control

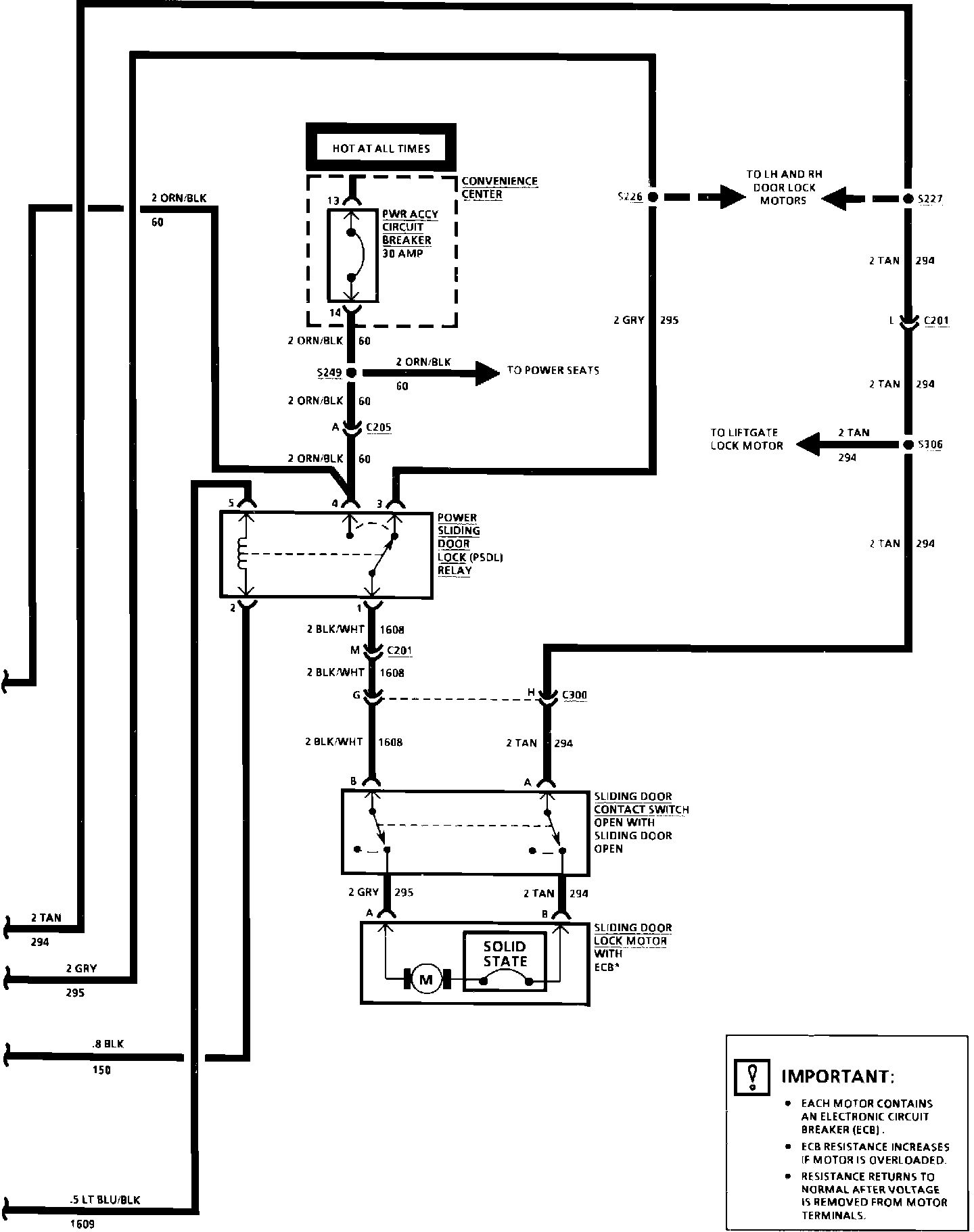

Power Door Locks: Sliding Door Lock Motor Control:
Power Door Locks: Sliding Door Lock Motor Control:
