Pontiac Truck
>>
1992
>>
Trans Sport V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

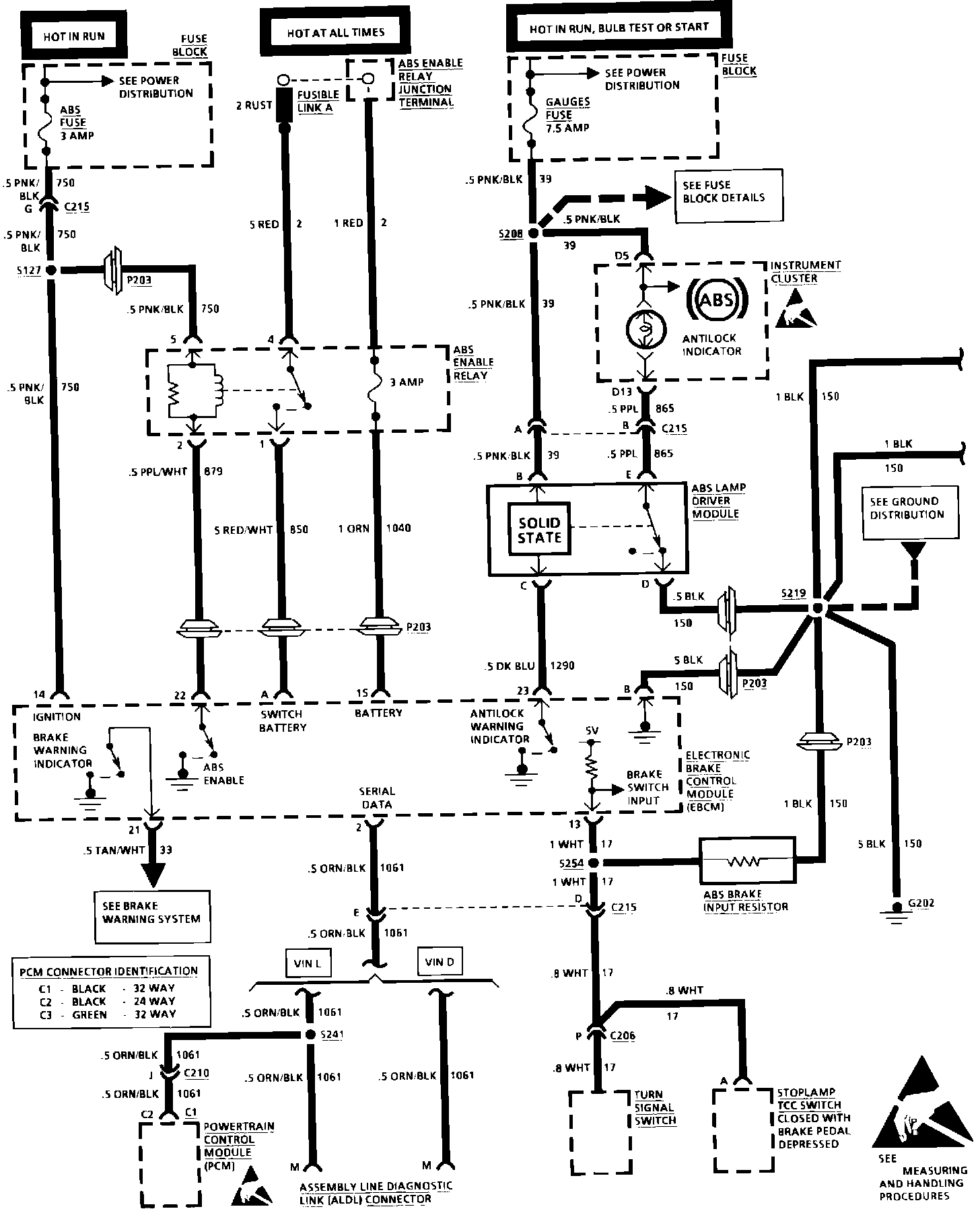

System Diagram
System Diagram
Antilock Brakes:
Antilock Brakes:
