Pontiac Truck
>>
1992
>>
Trans Sport V6-191 3.1L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

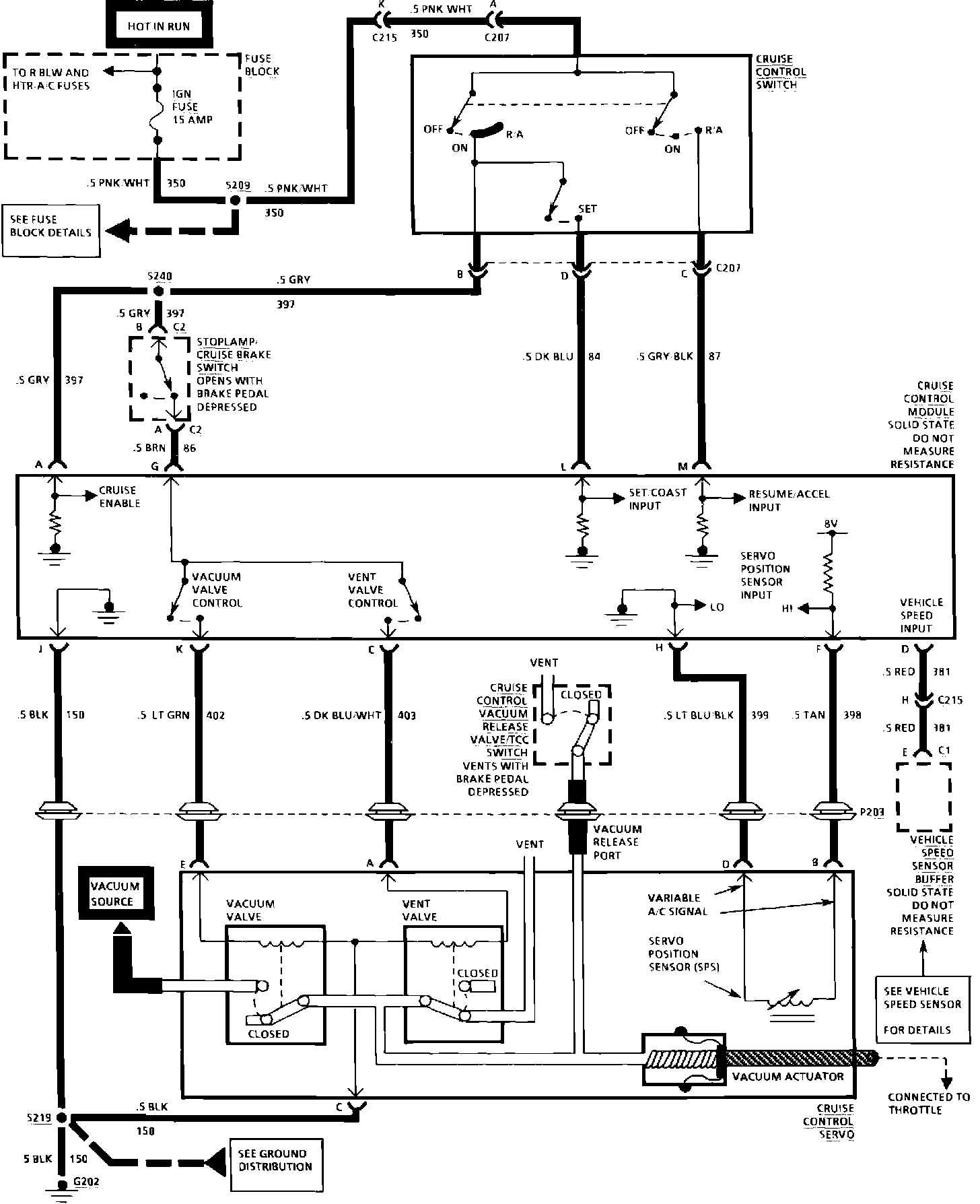

Fig. 37 Cruise Control Wiring Diagram:
Cruise Control:
