ABS Hydraulic Modulator Solenoid Assembly

Hydraulic Modulator Solenoid Assembly:

1. Disconnect battery ground cable.

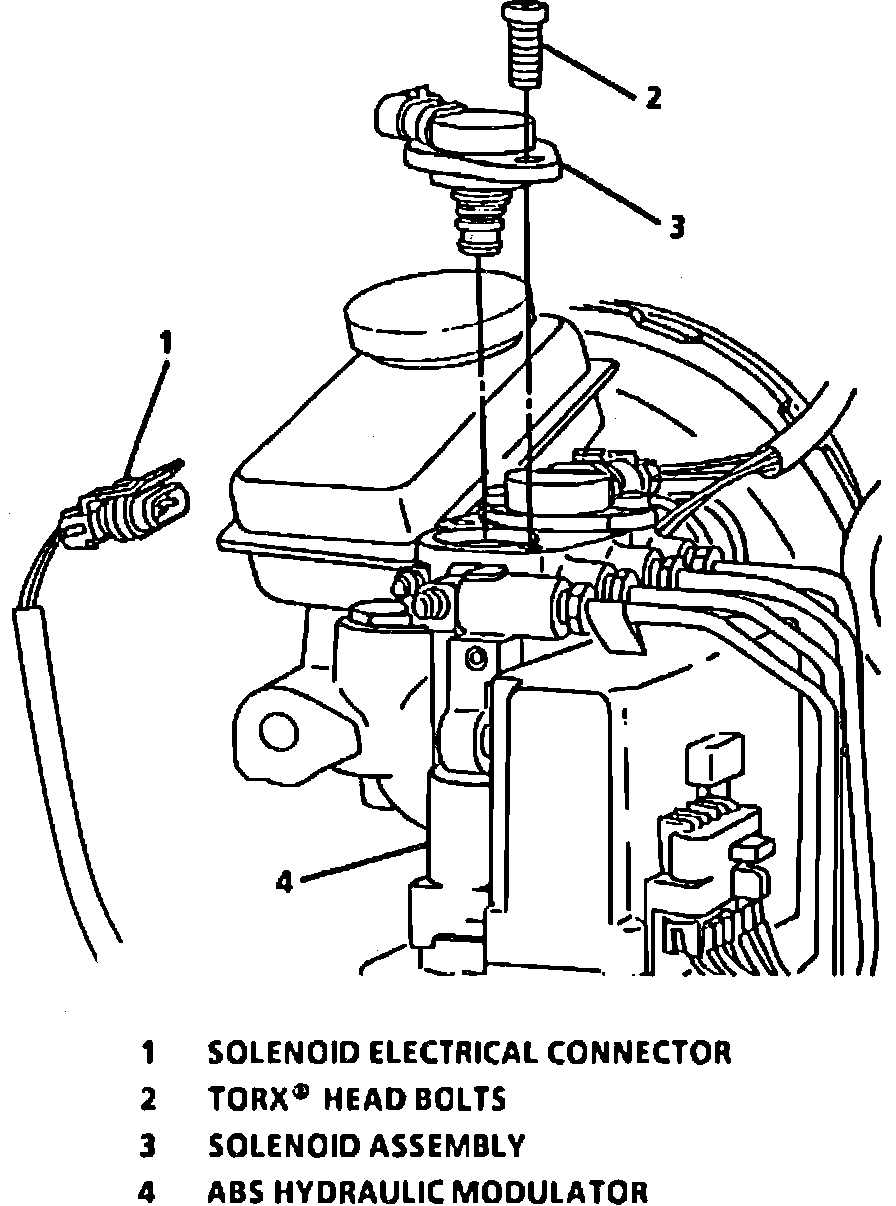

2. Disconnect solenoid electrical connector, Fig. 69.
3. Remove Torx head bolts, then the solenoid assembly.
4. Reverse procedure to install, torque Torx head bolts to 39 inch lbs.
