Door Inner Belt Weatherstrip

DOOR INNER BELT WEATHERSTRIP

REMOVAL

1. Remove door trim panel.

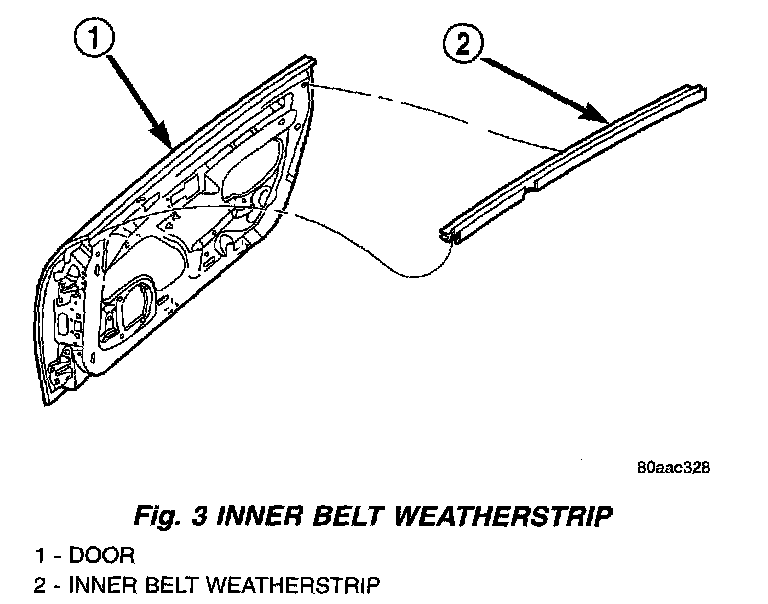

Fig. 3:

2. Pull upward on rear edge of the inner belt weatherstrip (Fig. 3).
3. Remove weatherstrip from vehicle.

INSTALLATION

1. Start leading edge of weatherstrip on vehicle.
2. Press the leading edge of the weatherstrip for until edge is tight and secure.
3. Press weatherstrip into position on door panel.
4. Install door trim panel.
