Flex Plate: Service and Repair

REMOVAL
1. Remove engine from vehicle.
2. Remove flex plate attaching bolts.

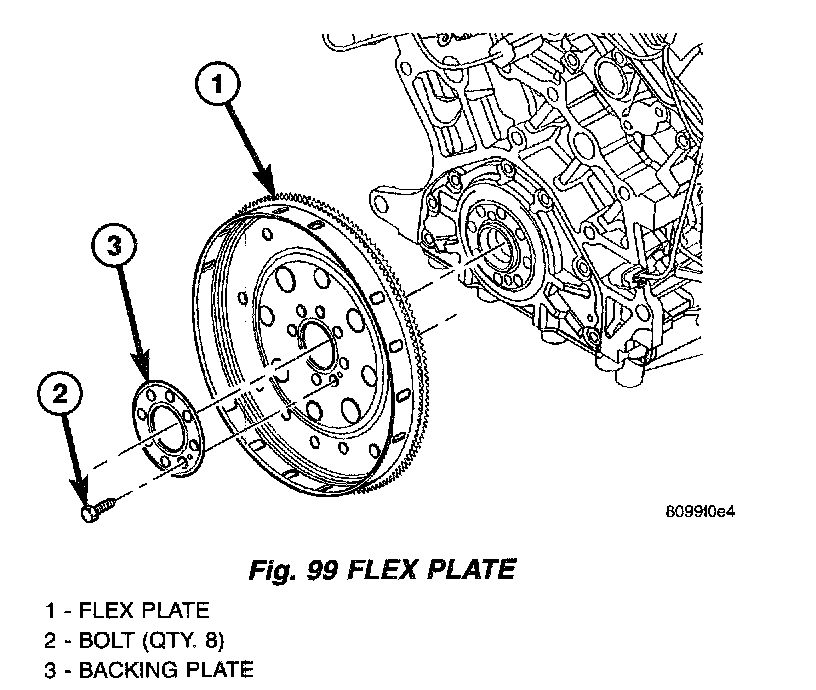

3. Remove the flex plate (Fig. 99).

INSTALLATION
1. Position flex plate with backing plate on the crankshaft (Fig. 99).
2. Apply Mopar Lock & Seal Adhesive to the flex plate bolts.
3. Install flex plate bolts (Fig. 99). Tighten bolts to 95 Nm (70 ft. lbs.).
4. Install engine in vehicle.
