Transmission Oil Cooler

REMOVAL
1. Raise vehicle on hoist.
2. Position an oil drain pan under oil cooler.

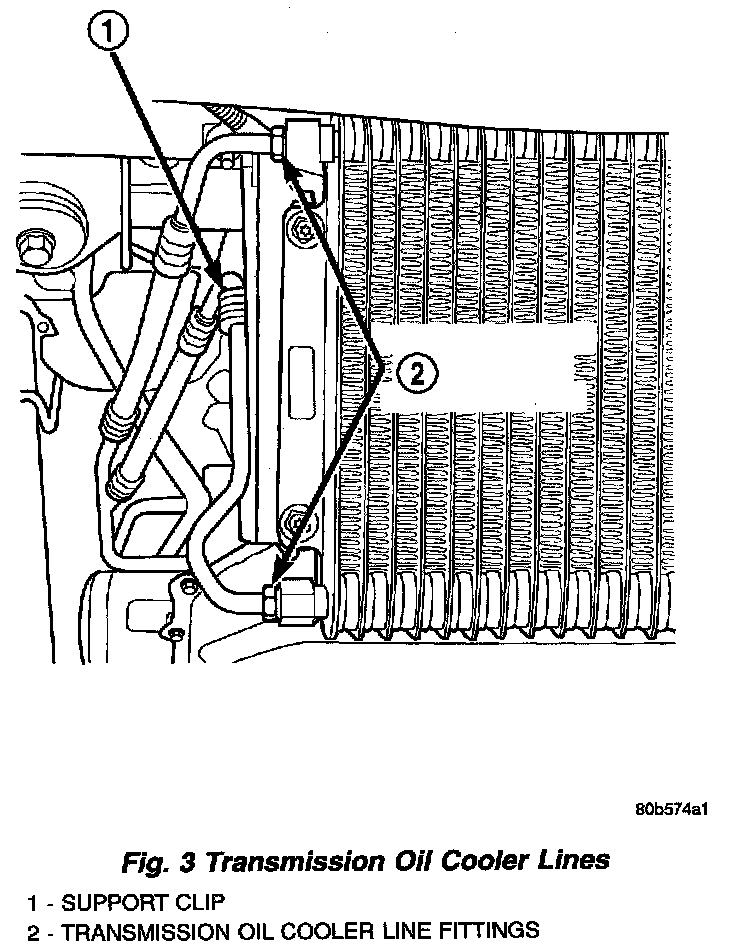

3. Remove transmission oil cooler line support clip (Fig. 3).
4. Remove transmission oil cooler lines from cooler (Fig. 3).

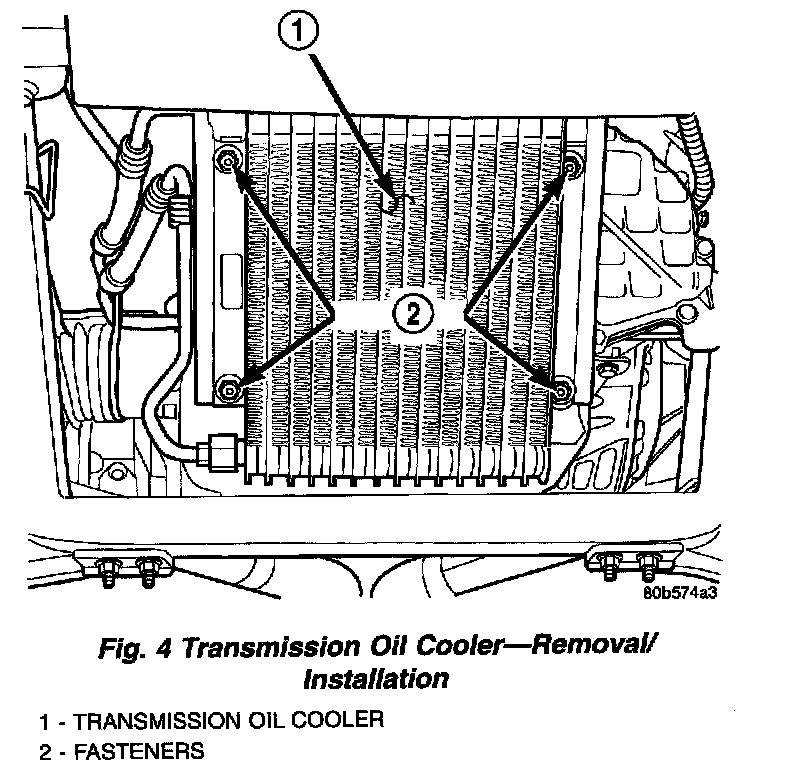

5. Remove fasteners attaching oil cooler to support bracket (Fig. 4).

INSTALLATION
1. Attach oil cooler to support bracket and tighten fasteners to 6.2 Nm (55 inch lbs.) (Fig. 4).

NOTE: Oil cooler line fittings at cooler use either O-rings or flared fittings. Inspect O-rings before installation (if equipped). Replace as necessary.

2. Attach transmission cooler lines to cooler and tighten fittings to 25 Nm (220 inch lbs.) (Fig. 3).
3. Install transmission oil cooler line support clip (Fig. 3).
4. Lower vehicle.
5. Check and adjust transmission fluid level as necessary.
