Seat Belt Buckle: Service and Repair

REMOVAL
1. Remove seat to access the inboard belt buckles.

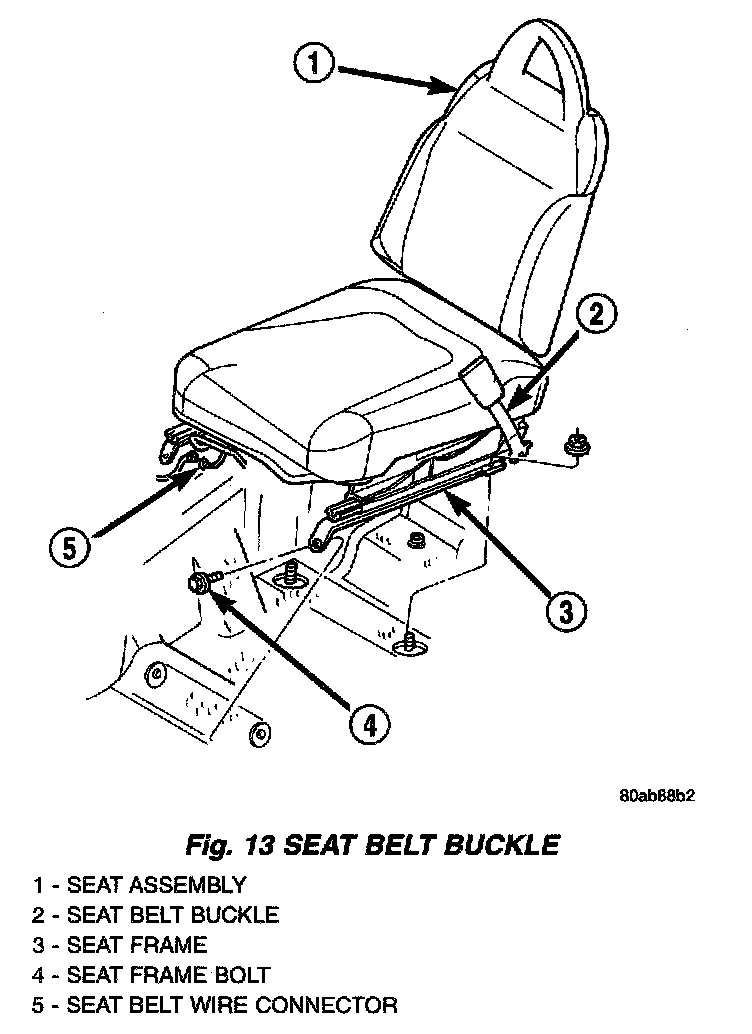

Fig. 13 Seat Belt Buckle:

2. Remove fastener attaching buckle to seat frame.
3. Remove buckle from seat assembly.

INSTALLATION
1. Place buckle on seat frame.
2. Install fastener attaching buckle to seat frame,
3. Install seat.
