Air Bag
>>
Locations

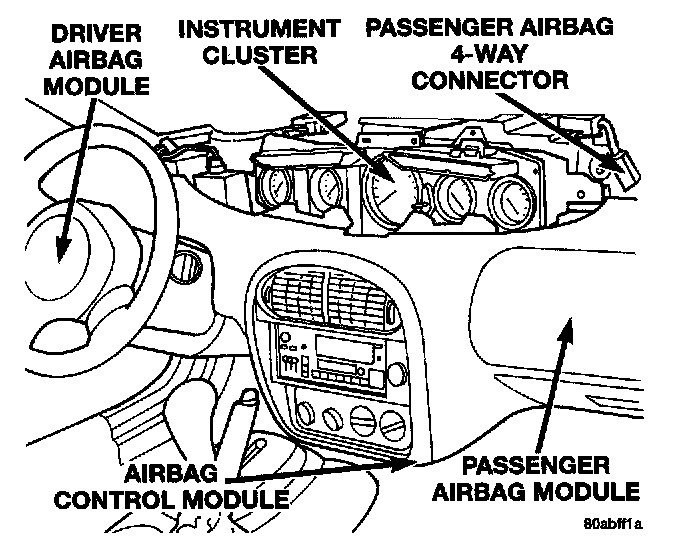

Air Bag: Locations
The Driver Airbag, located on the steering wheel, is the most visible part of the system.
The Passenger Airbag is located beneath the decorative cover of the instrument panel, facing the passenger seat.
