Fuel Filler Neck: Service and Repair
REMOVAL1. Disconnect negative cable from battery.
2. Drain fuel tank.

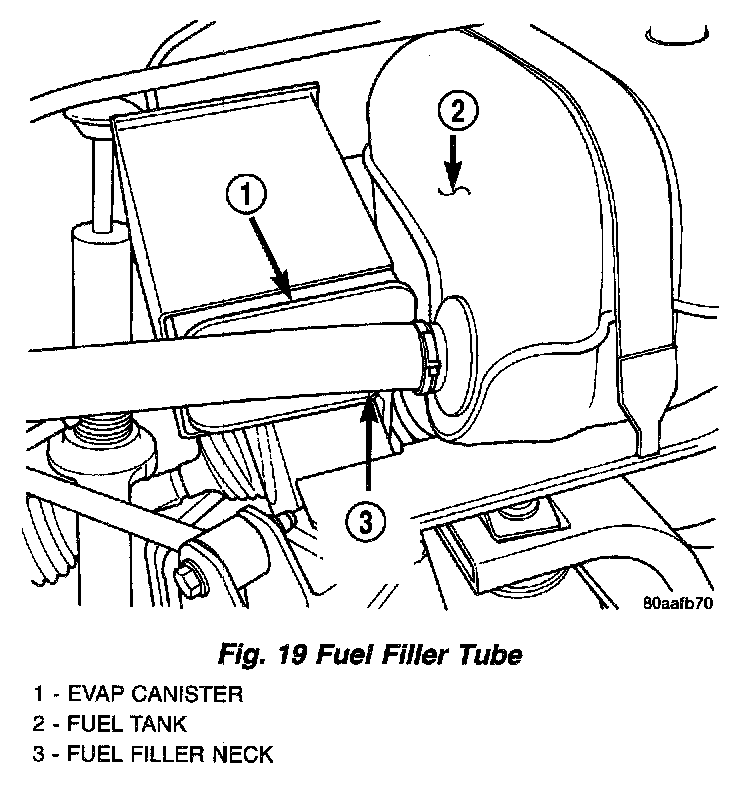

Fig. 19 Fuel Filler Tube:
3. Remove 3 screws from filler neck to quarter panel (Fig. 19).
4. Raise and support vehicle on host.

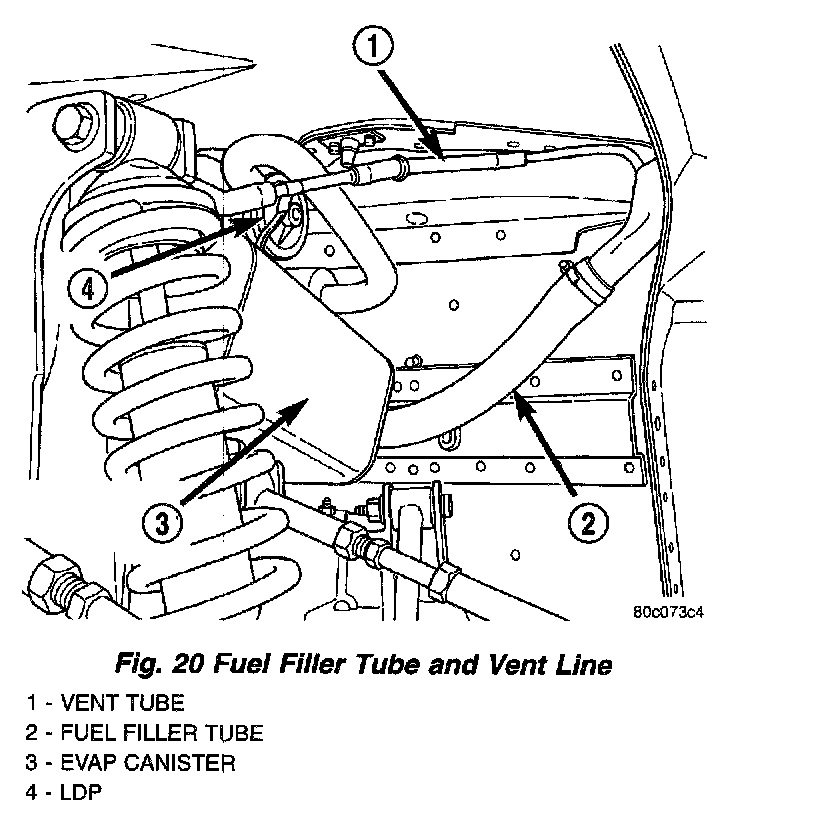

Fig. 20 Fuel Filler Tube And Vent Line:
5. Loosen clamps at filler neck and vent tube (Fig. 20).
6. Remove the ground wire.
7. Remove filler neck.
INSTALLATION
1. Install filler neck to filler hose and vent hose.
2. Install the ground wire.
3. Tighten clamps.
4. Lower vehicle.
5. Install 3 screws to filler neck and quarter panel.
6. Fill tank and check for leaks.
7. Connect negative cable from battery.
