Canister Purge Solenoid: Service and Repair

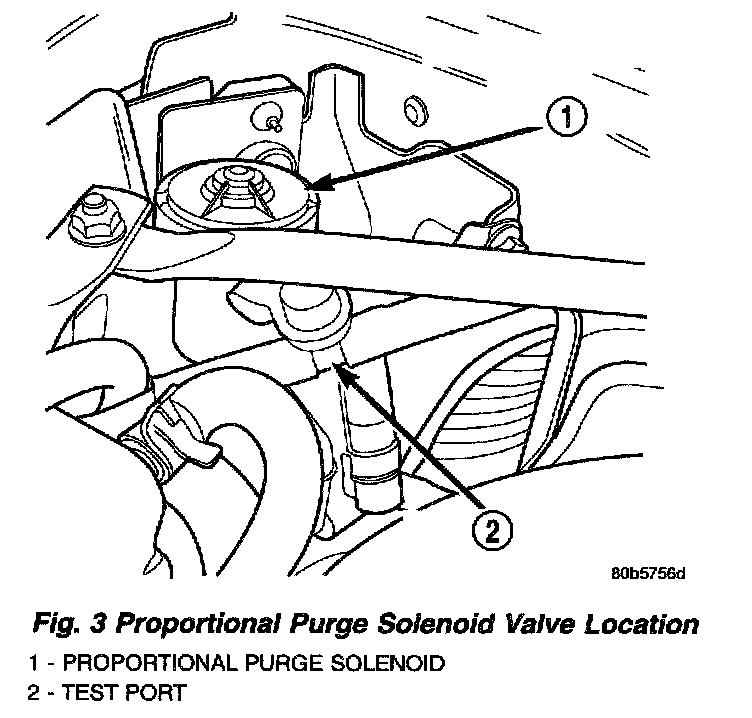

Fig. 3 Proportional Purge Solenoid Valve Location:

REMOVAL
The Proportional Purge solenoid valve is located on a bracket attached to the right side engine compartment near the dash panel.
1. Slide valve off of bracket.
2. Disconnect the electrical connector.
3. Disconnect the vacuum hoses from the valve.

INSTALLATION
1. Connect the vacuum hoses to the valve.
2. Connect the electrical connector to the valve.
3. Slide valve onto bracket.
