Canister Purge Solenoid: Locations

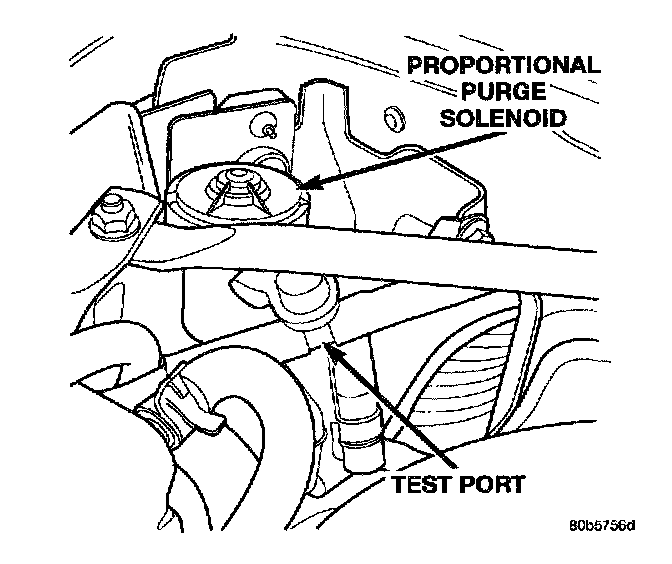

Fig. 3 Proportional Purge Solenoid Valve Location:
The Proportional Purge solenoid valve is located on a bracket attached to the right side engine compartment near the dash panel.
