Headlamp Bulb: Service and Repair

REMOVAL

NOTE: Do not touch bulb glass.

1. Disconnect and isolate the battery negative cable.
2. Remove screws holding headlamp bulb access cover to the headlamp module.
3. Rotate bulb counterclockwise one quarter turn.

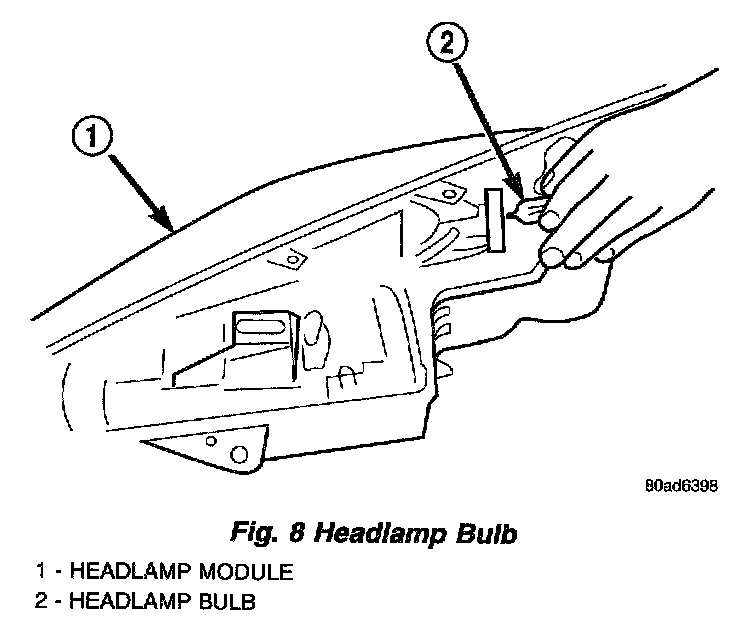

Fig. 8 Headlamp Bulb:

4. Pull bulb from headlamp module.

INSTALLATION
1. Insert bulb into headlamp module.
2. Rotate bulb clockwise one quarter turn.
3. Install screws to hold the headlamp bulb access cover to the headlamp module.
4. Connect the battery negative cable.
5. Verify proper headlamp alignment. Adjust as necessary.
