Foot Well Courtesy Lamp Bulb Replacement

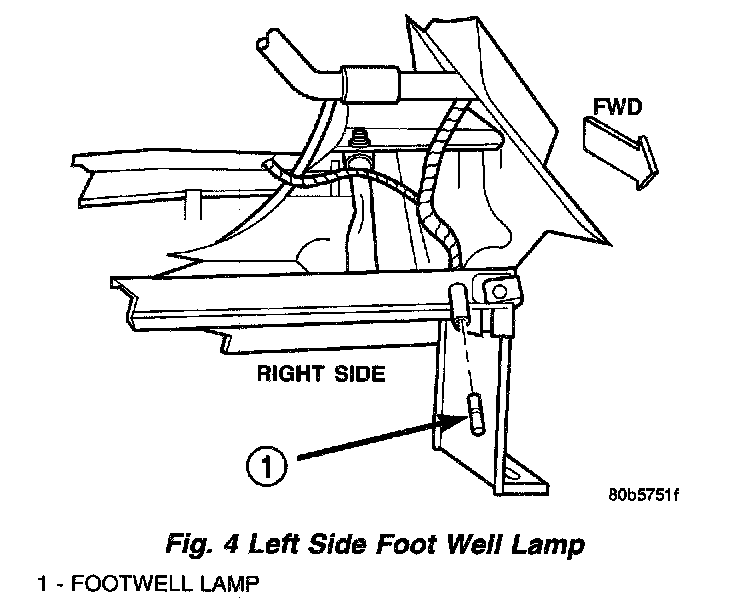

Fig. 4 Left Side Foot Well Lamp:

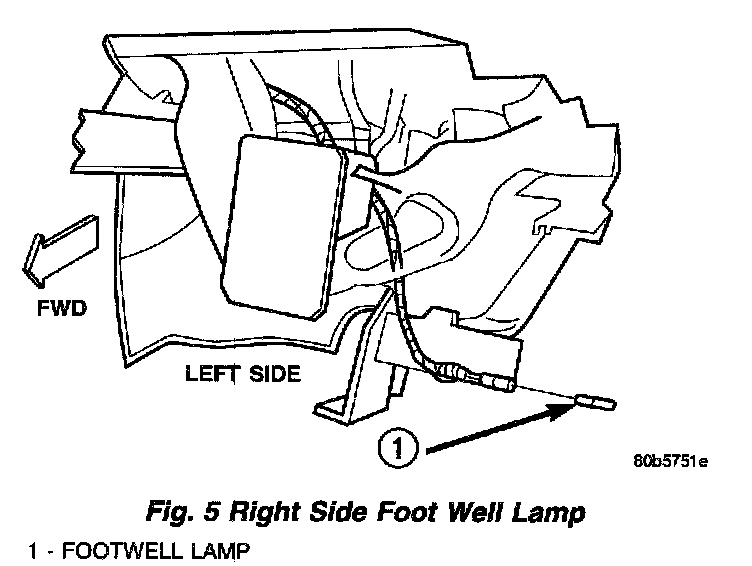

Fig. 5 Right Side Foot Well Lamp:

REMOVAL
The foot well courtesy lamp bulb is located on either side of the floor tunnel under the instrument panel above the foot well area or. The bulb is exposed and is serviced by pulling the bulb straight outward.
