Brake Light Switch: Locations

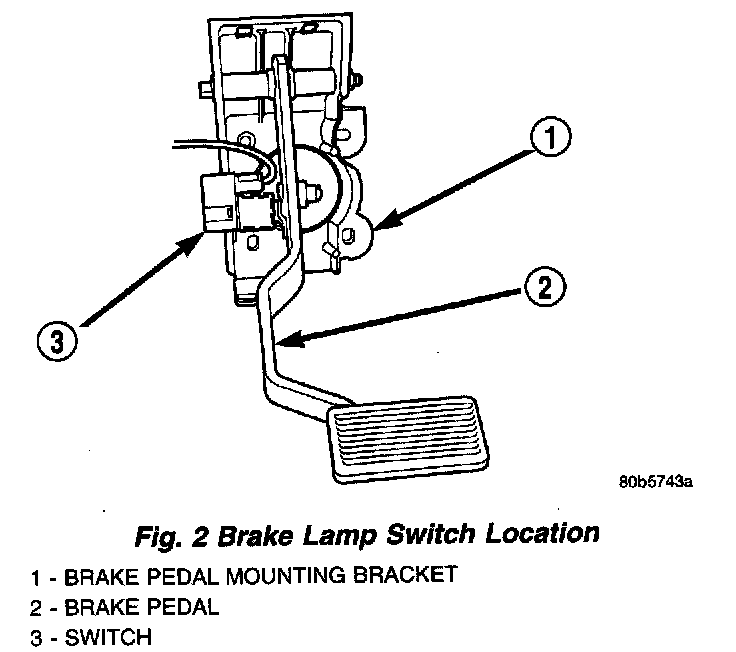

Fig. 2 Brake Lamp Switch Location:




The brake lamp switch is located under the instrument panel at the brake pedal arm.
