Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. Remove 2 screws from vacuum reservoir.

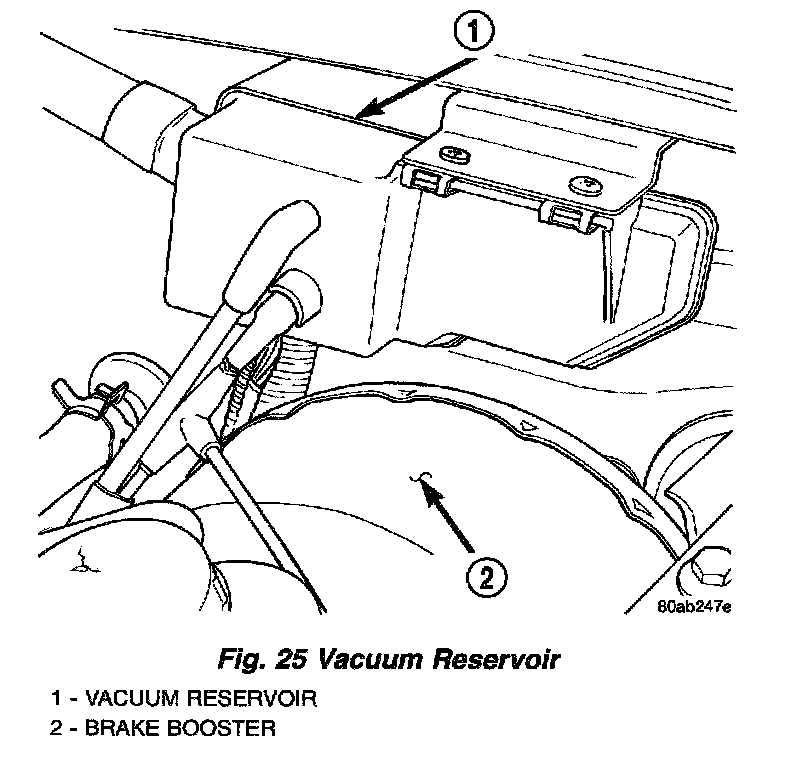

Fig. 25 Vacuum Reservoir:

2. Remove vacuum hoses from reservoir.
3. Remove vacuum reservoir.

INSTALLATION
1. Install vacuum reservoir.
2. Install 2 screws and tighten.
3. Install vacuum hoses to reservoir.
