Evaporator Drain Tube: Service and Repair

REMOVAL
1. Raise vehicle.

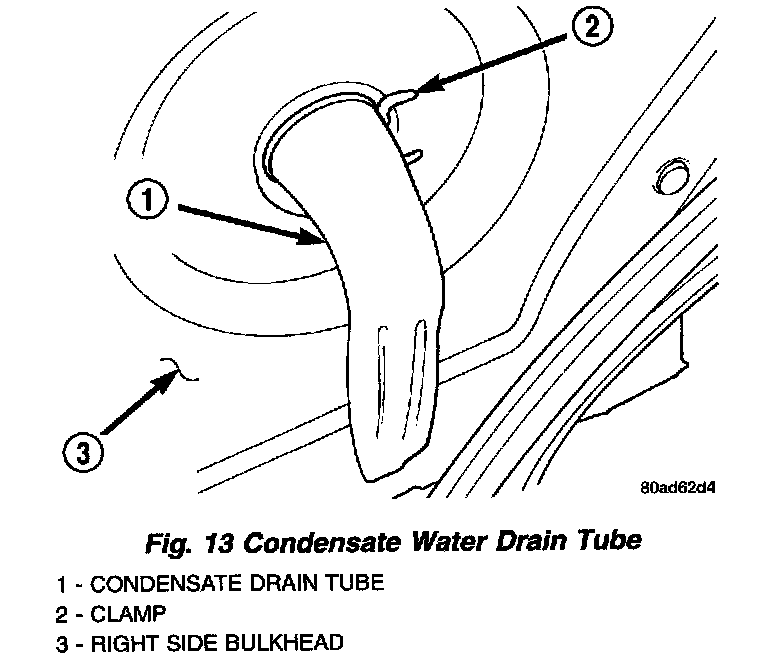

Fig. 13 Condensate Water Drain Tube:

2. Locate rubber drain tube on right side of bulkhead.
3. Squeeze clamp and remove drain tube.

INSTALLATION
1. Squeeze the clamp and slip the drain tube over the drain nipple. Check the drain tube nipple on the heater-A/C housing for any obstructions.
2. Lower the vehicle.
3. Connect the battery negative cable.
