Plymouth
>>
2001
>>
Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>

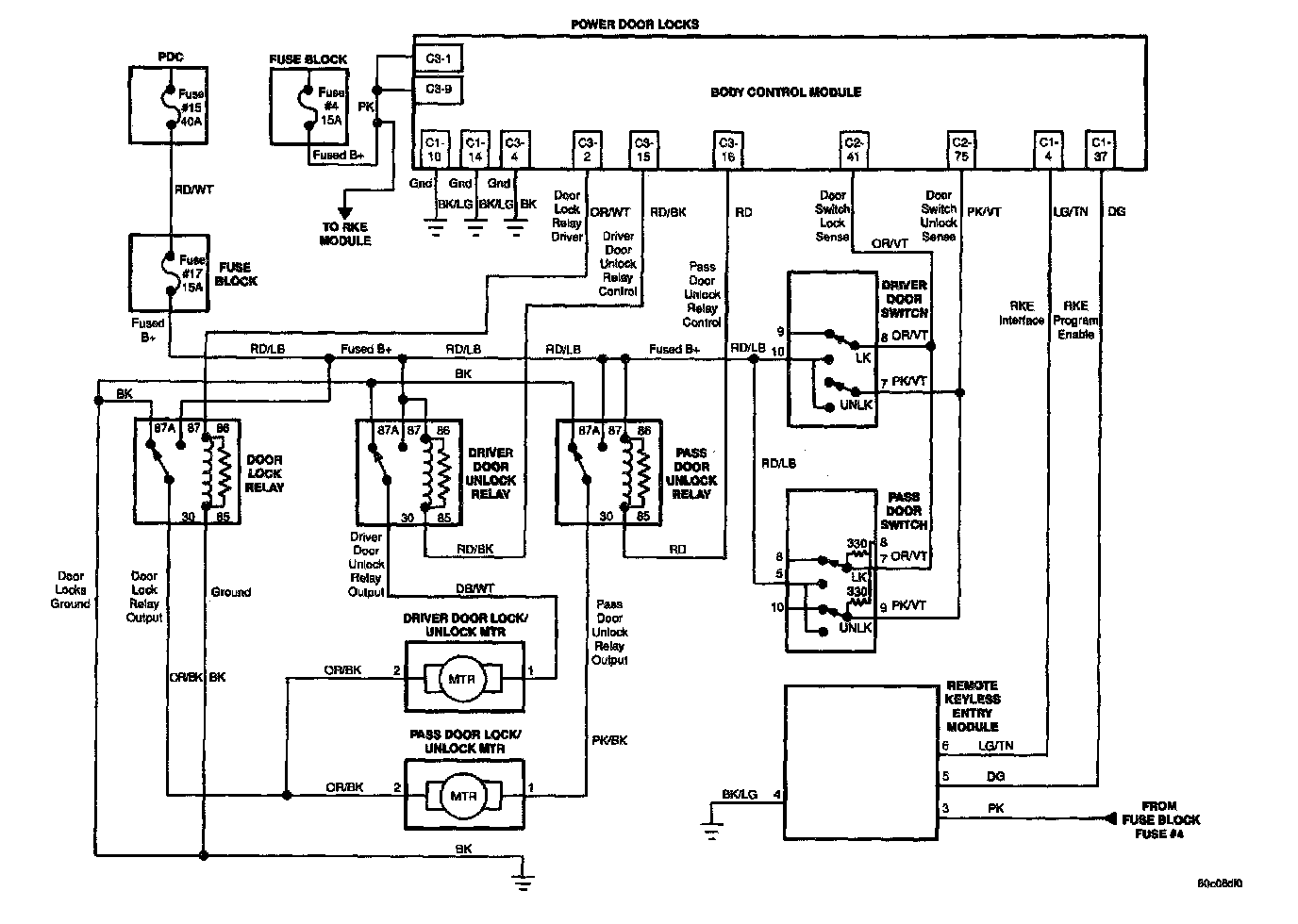

System Schematic
System Schematic
Power Door Lock System:
