Plymouth
>>
2001
>>
Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>

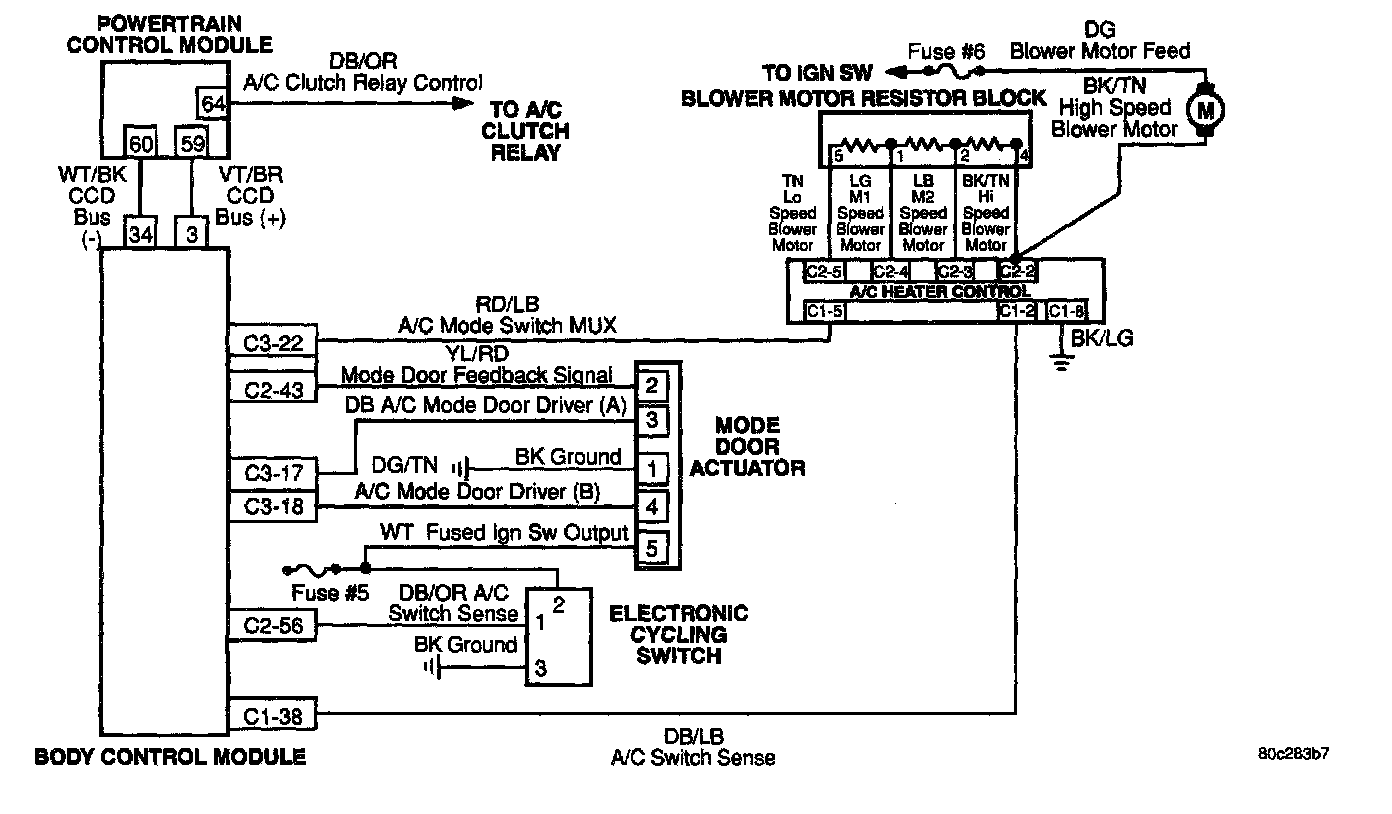

System Schematics
System Schematics
Manual A/C System:
