Primary Door Weatherstrip
PRIMARY DOOR WEATHERSTRIPREMOVAL
1. Open door.
2. Remove door trim panel.
3. Remove primary weatherstrip from vehicle.

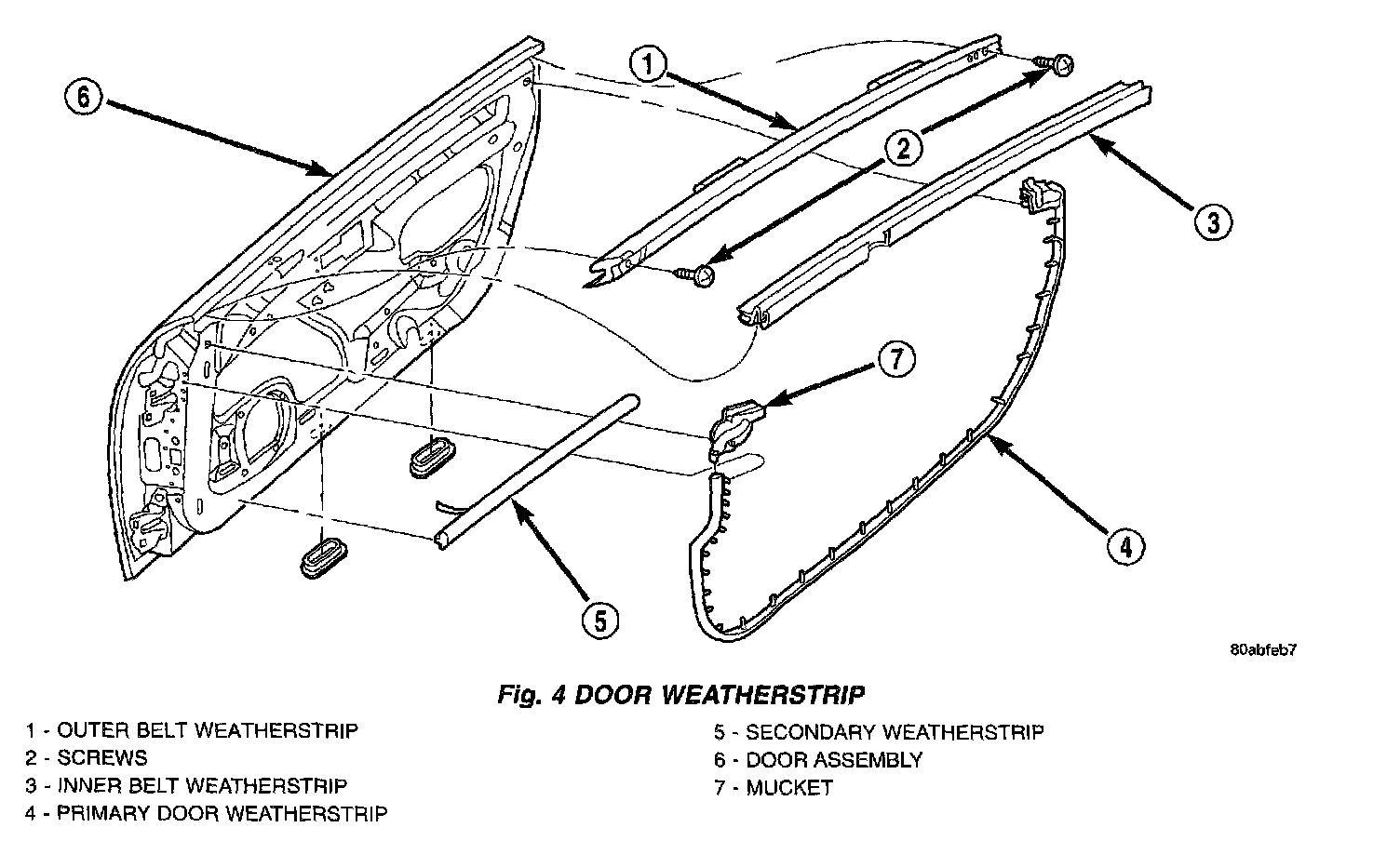

Fig. 4:
4. Remove mucket from vehicle (Fig. 4).
INSTALLATION
1. Place primary weatherstrip on door.
NOTE: Ensure that the seal lips are fully seated.
2. Install door trim panel.
3. Install mucket to weatherstrip end.
