Electronic Cycling Switch Circuit Failure

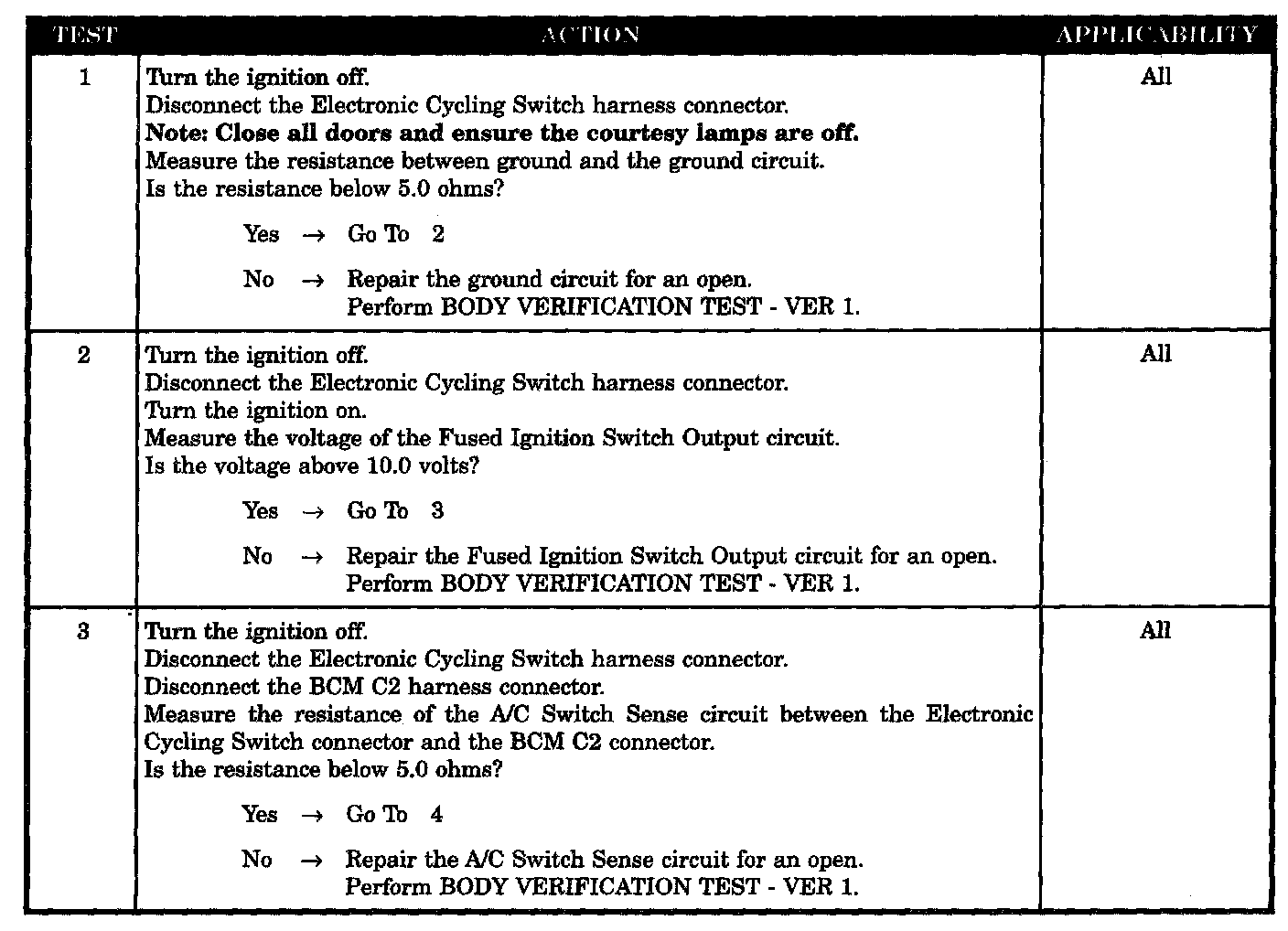

Tests 1 - 3:

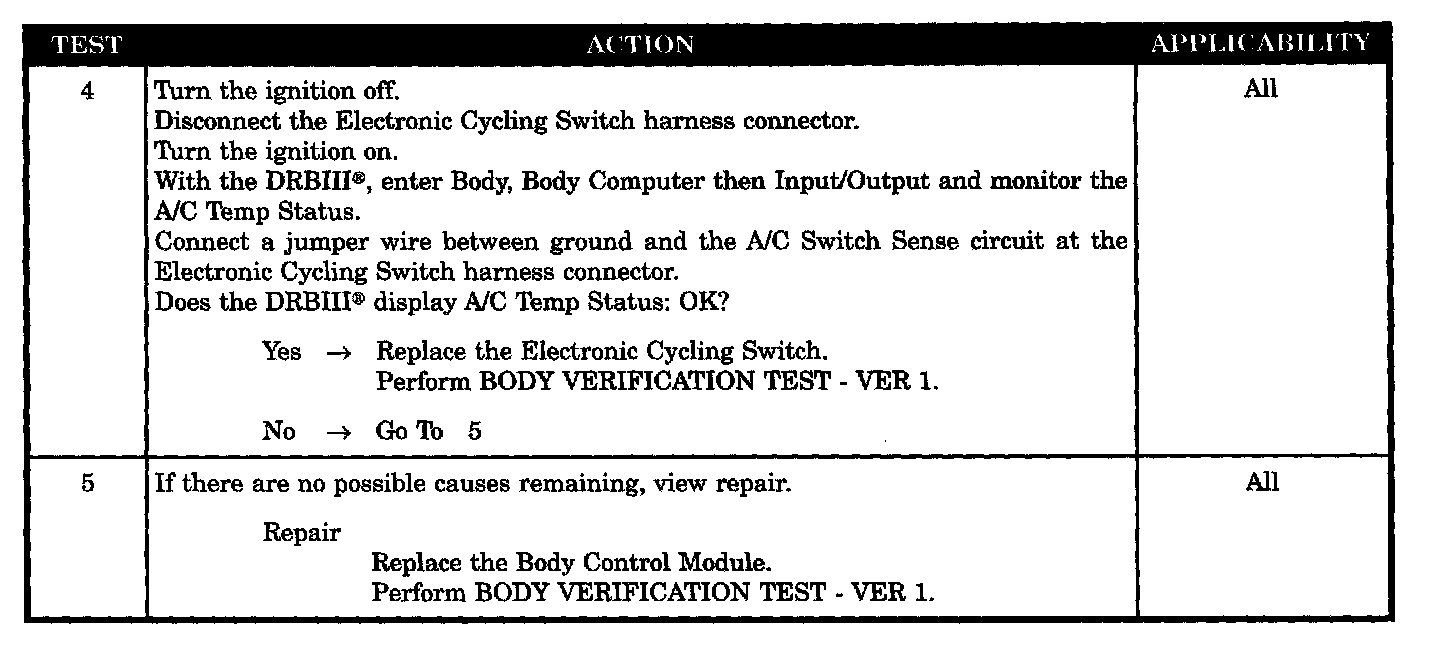

Tests 4 - 5:

SYMPTOM
ELECTRONIC CYCLING SWITCH CIRCUIT FAILURE

POSSIBLE CAUSES
- Open ground circuit
- Fused ignition switch output circuit open
- Electronic cycling switch
- A/C switch sense circuit open
- Body control module
