Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1998
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

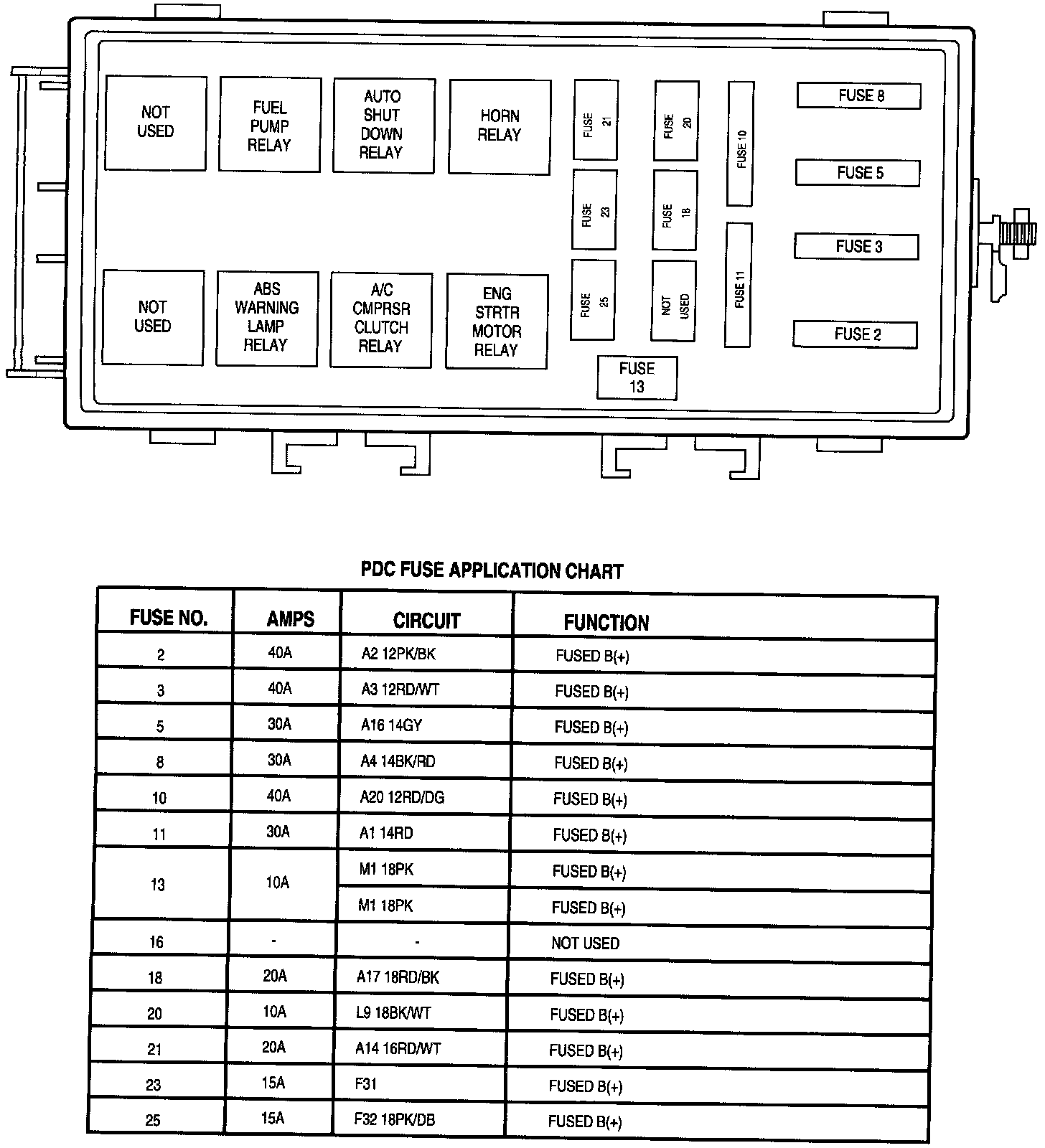

Power Distribution:

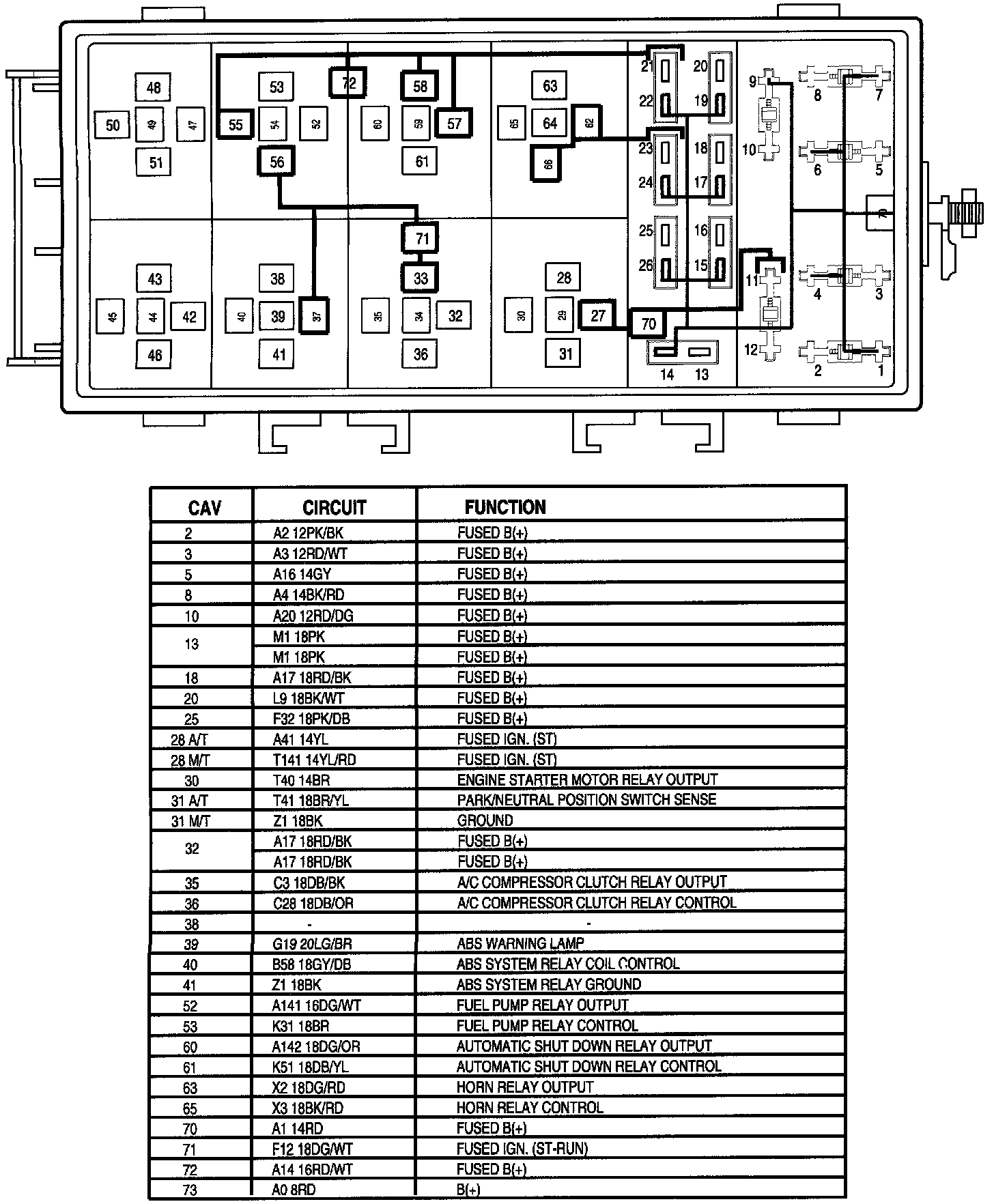

Power Distribution:
