Home
>>
Plymouth
>>
1998
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Injector
Fuel Injector

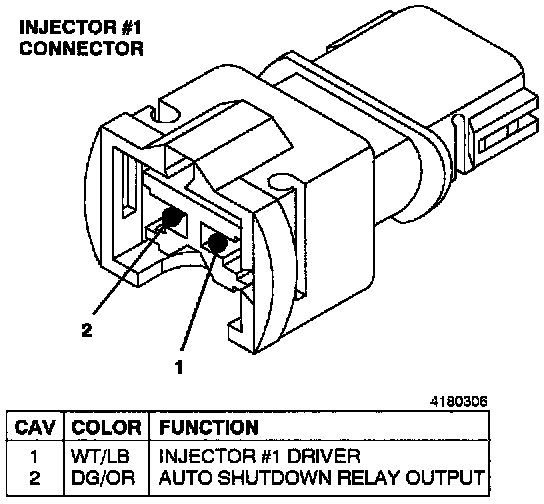

Injector #1 Connector:

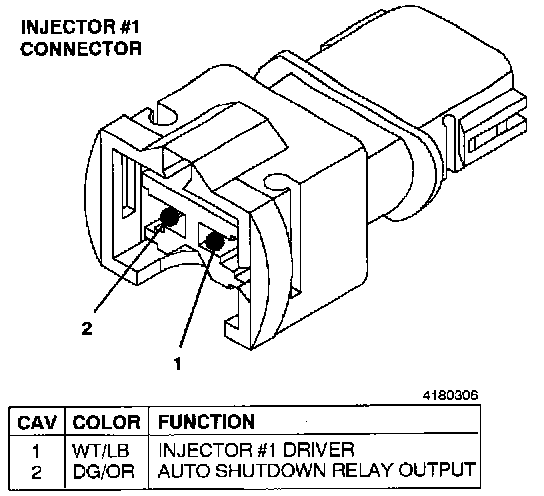

Injector Connector -- Typical:
