Test 4A - Right Front Sensor Circuit Failure
Test 4A - Right Front Sensor Circuit Failure

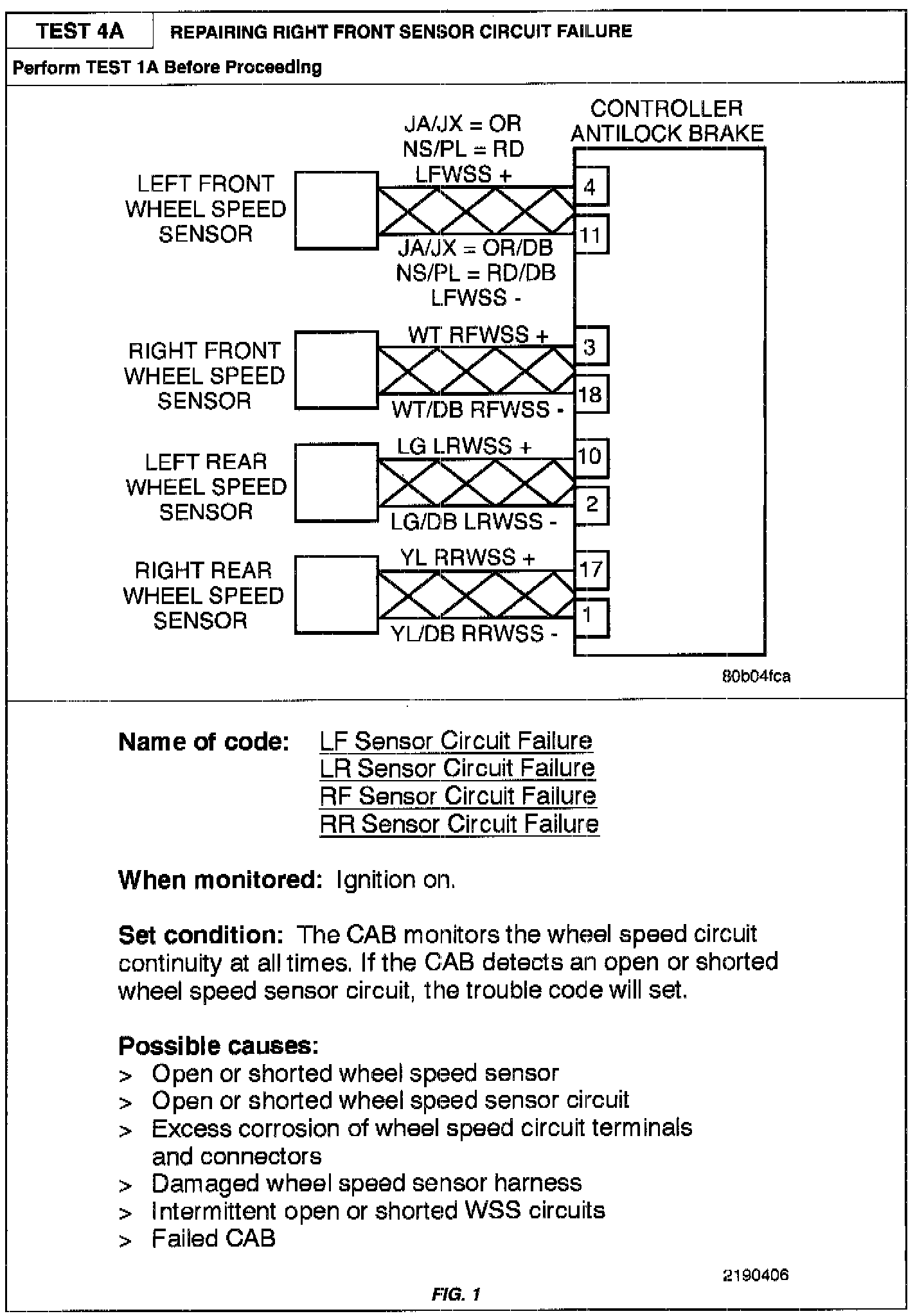

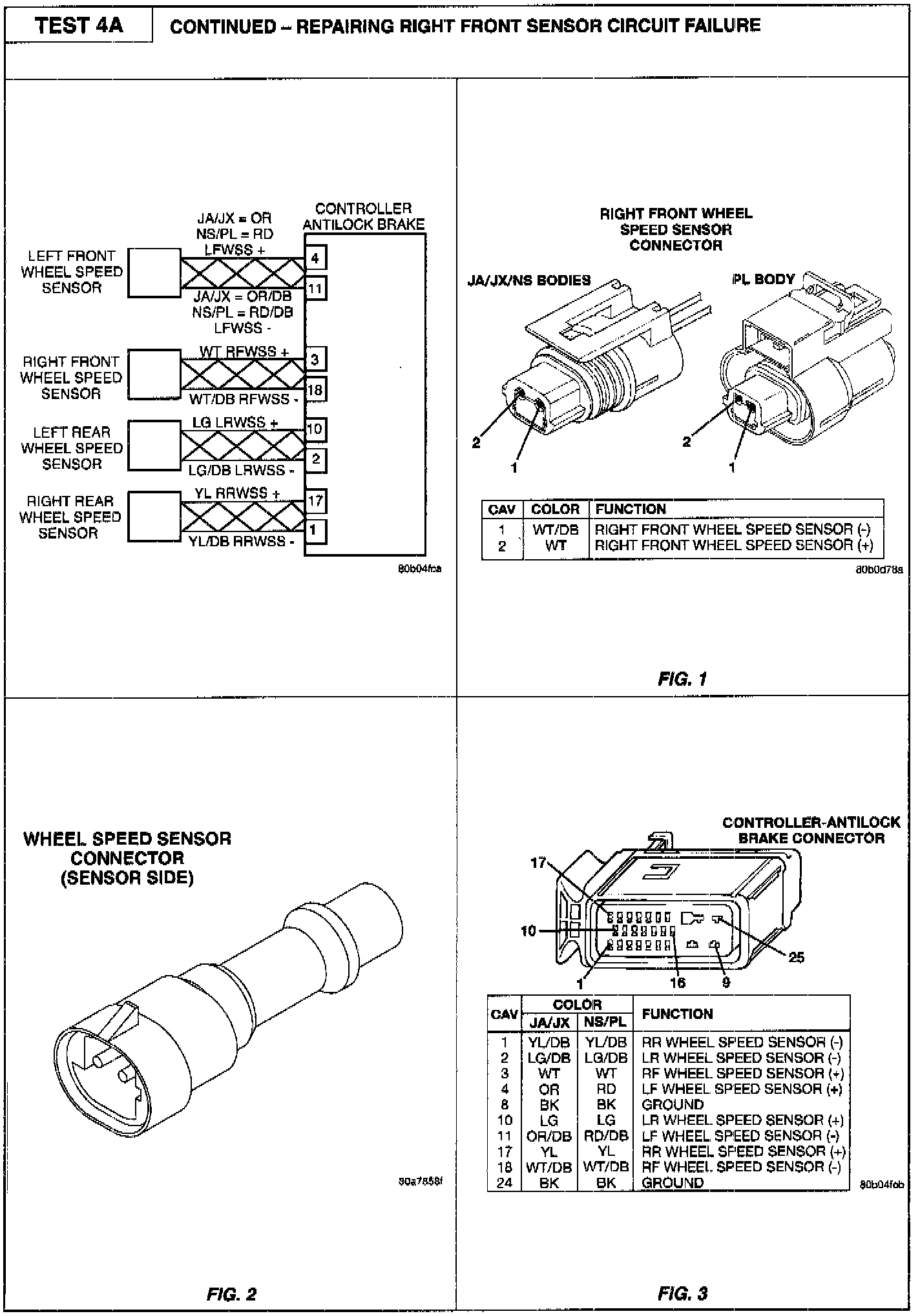

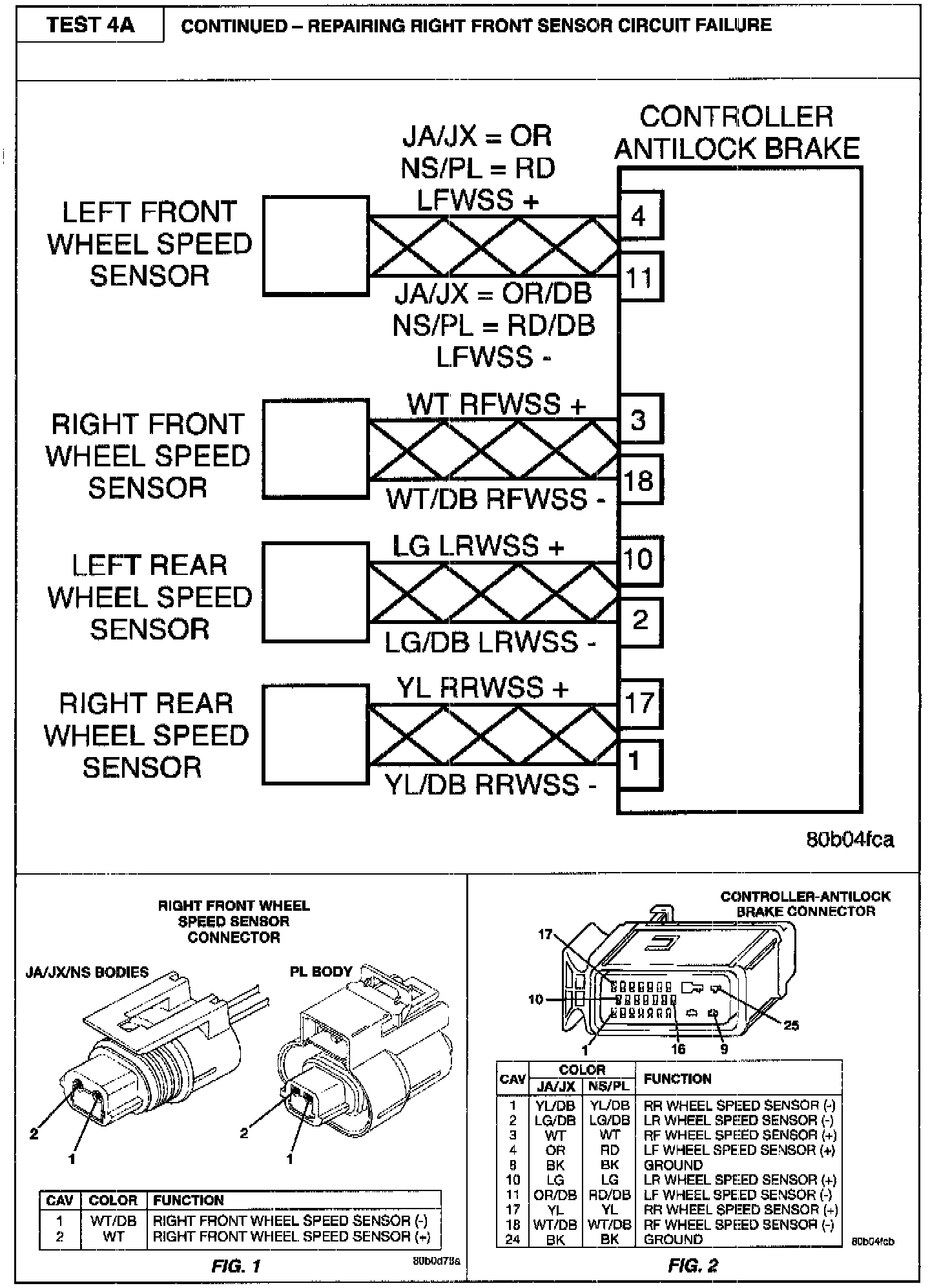

Related Figures:

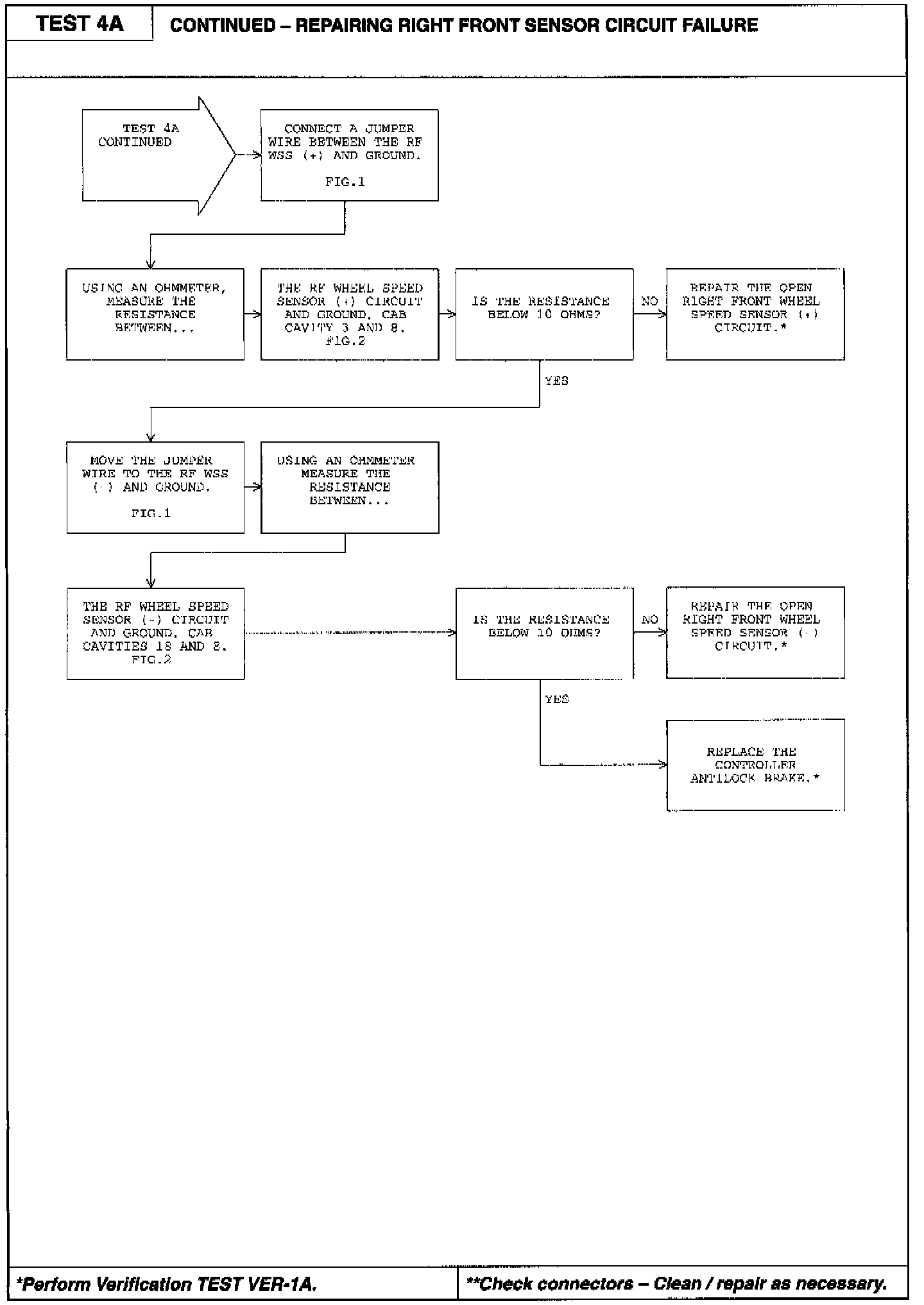

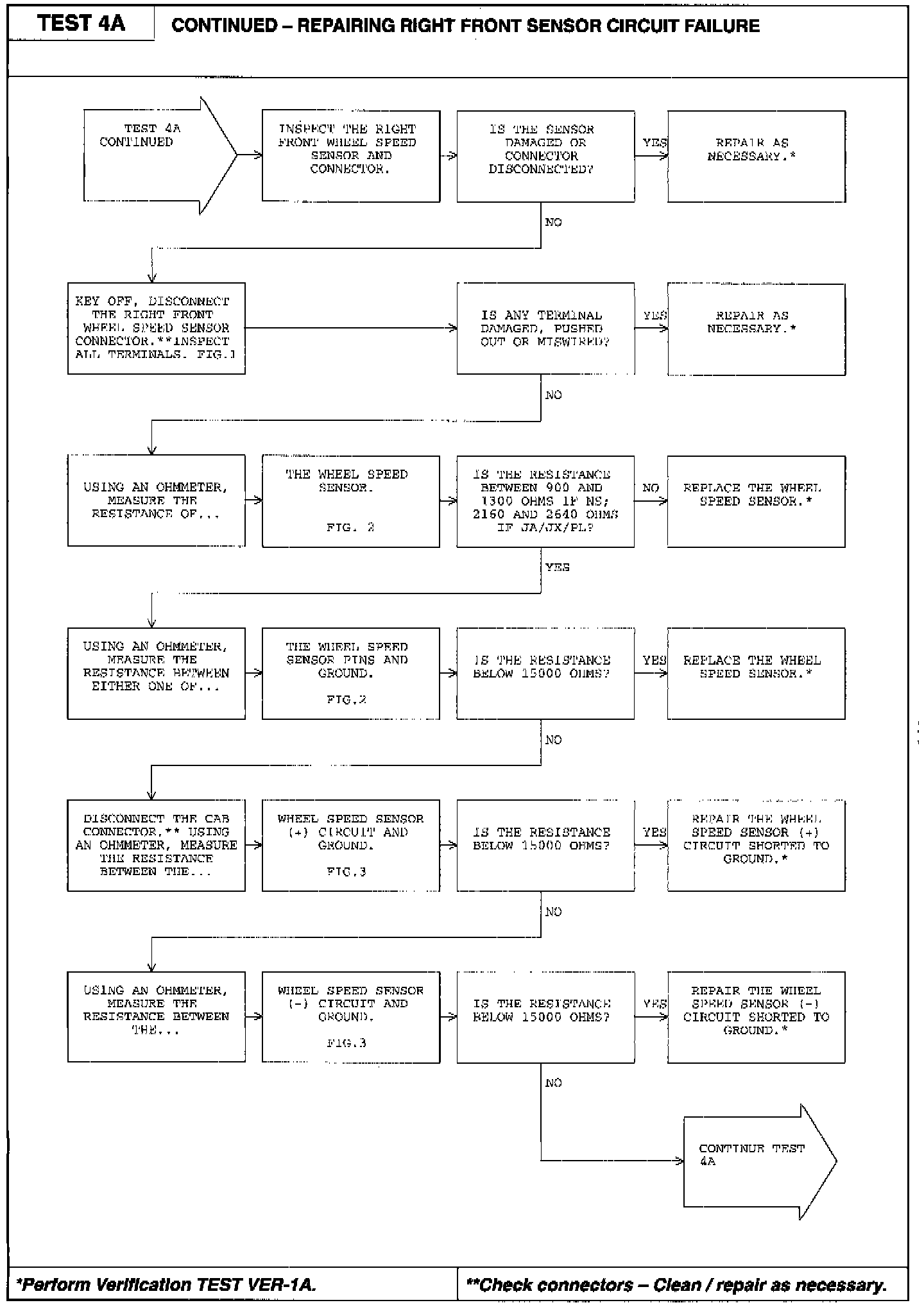

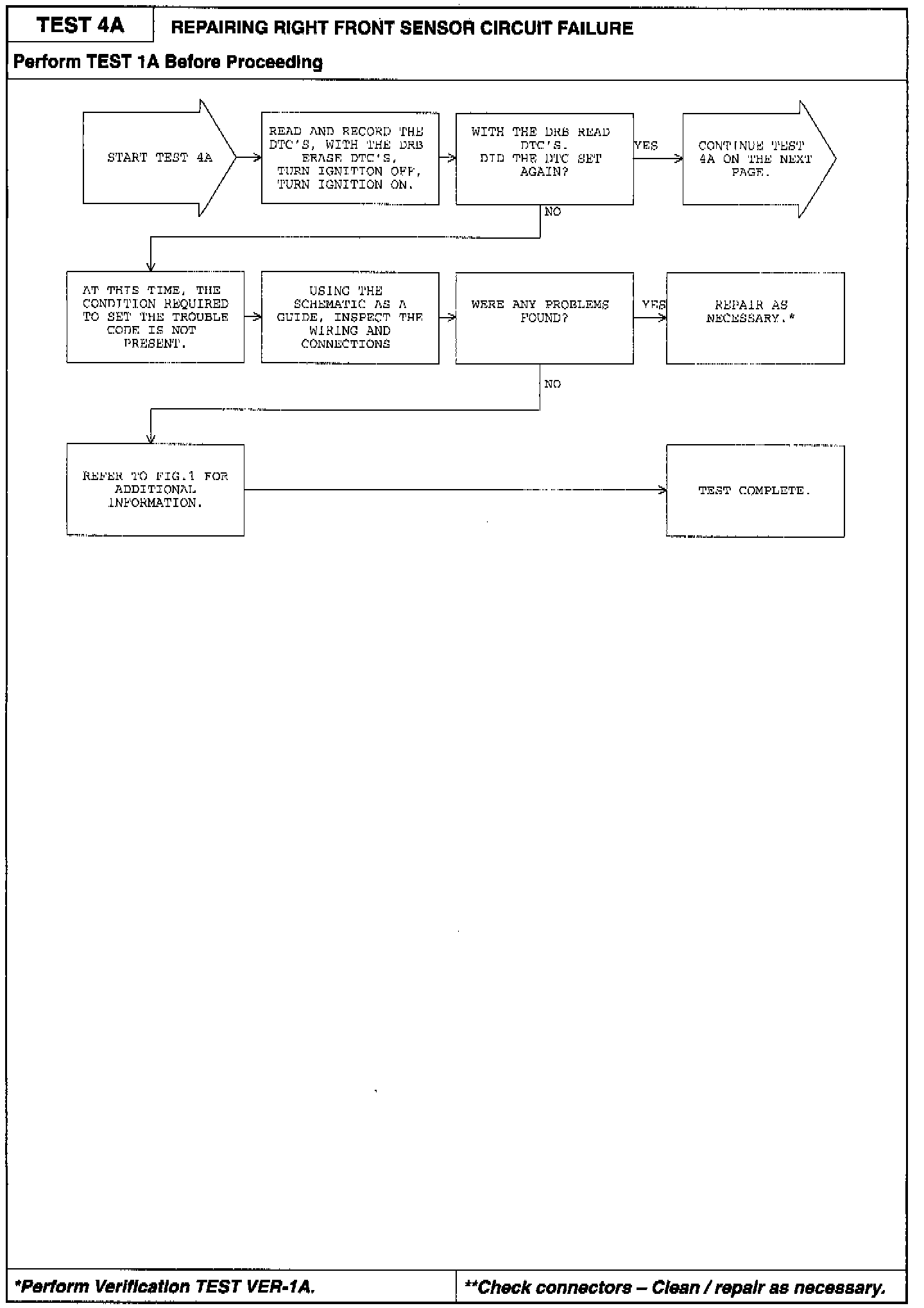

Diagnostic Chart:
Related Figures:
Diagnostic Chart:
Related Figures:
Diagnostic Chart:
