Overhaul

DISASSEMBLY

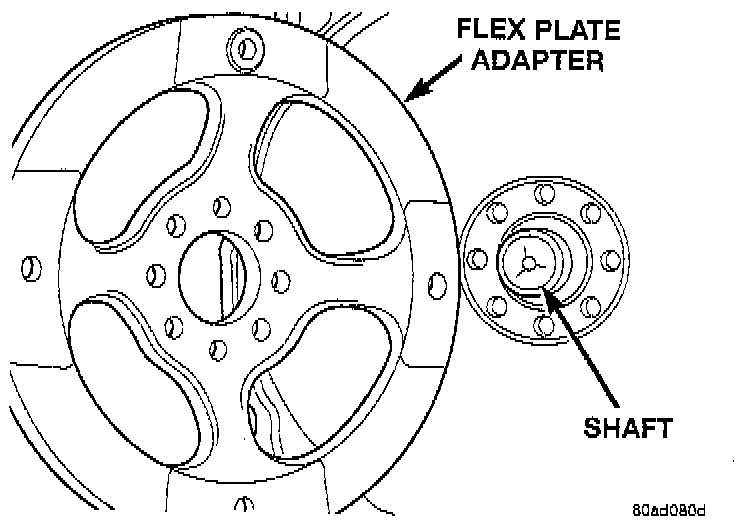

1. Remove flex plate adapter bolts.

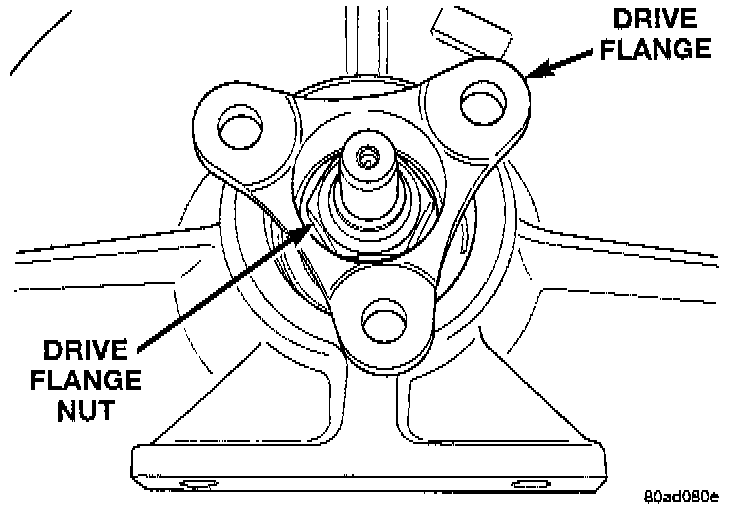

2. Remove engine bell housing drive flange nut. Use a deep 1 1/4 inch socket.
3. Slide flange off of the output shaft.
4. Remove output shaft from housing.

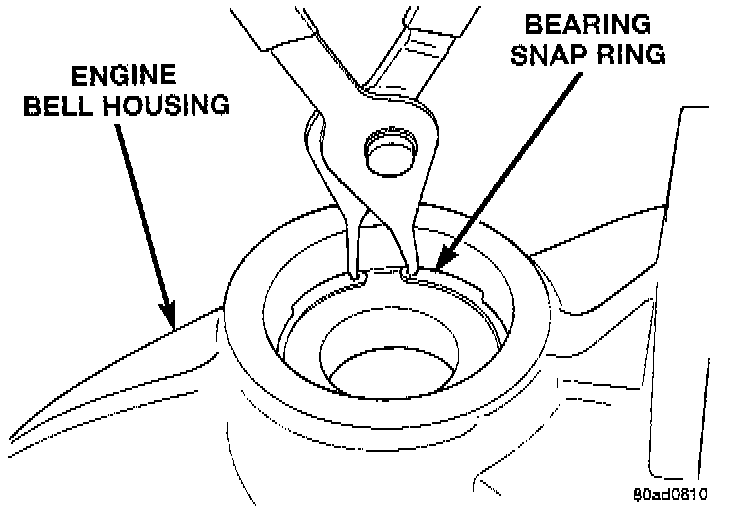

5. Remove bearing snap ring from housing.
6. Position Special Tool #6310-1 cup, or equivalent underneath bell housing nose.
7. Drive out bearing using Special Tool # 6597 driver, and Special Tool # C-4171 handle, or equivalents.

ASSEMBLY
1. Install bell housing in shop press.
2. Position bearing into bell housing nose.
3. Drive bearing into bell housing using Special Tool # C-4628 driver (inverted) and Special Tool # C-4171 handle, or equivalents.
4. Install snap ring into engine bell housing.
5. Install output shaft.
6. Install drive flange. Tighten flange nut using Special Tool # 6958 holder, or equivalent. Torque flange nut to 100 Nm (75 ft. lbs.).
