Fuel Filler Cap: Service and Repair

REMOVAL
1. Disconnect negative cable from battery.
2. Drain fuel tank.

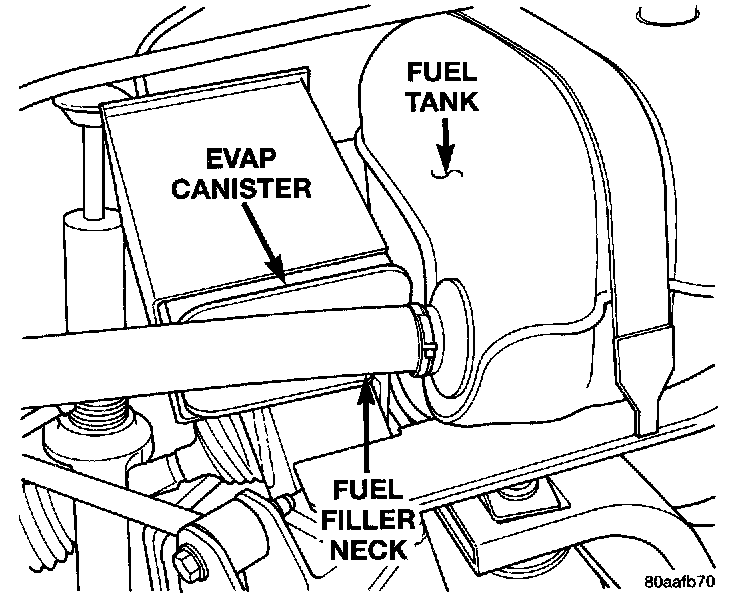

Fuel Filler Tube:

3. Remove 3 screws from filler neck to quarter panel.
4. Raise and support vehicle on host.

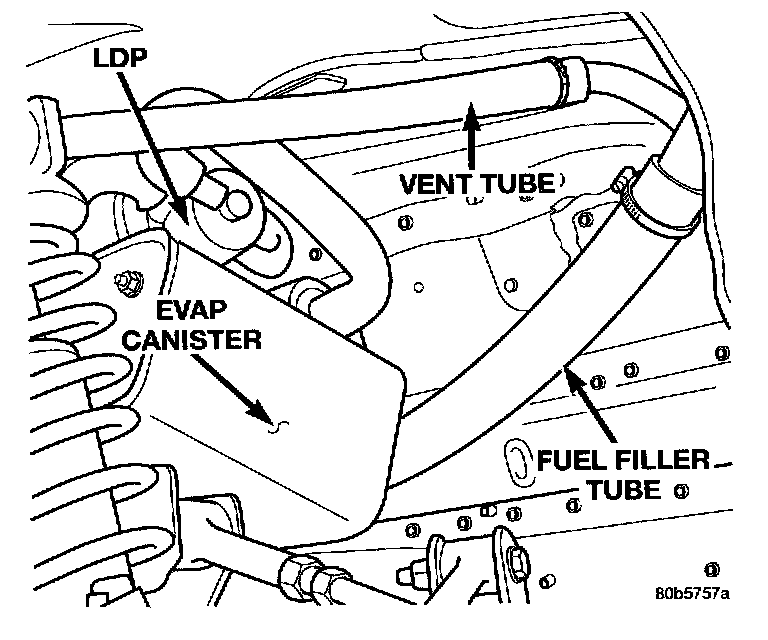

5. Loosen clamps at filler neck and vent tube.
6. Remove filler neck.

INSTALLATION
1. Install filler neck to filler hose and vent hose.
2. Tighten clamps.
3. Lower vehicle.
4. Install 3 screws to filler neck and quarter panel.
5. Fill tank and check for leaks.
6. Connect negative cable from battery.
