Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Mode Switch, A/T
Transmission Mode Switch, A/T

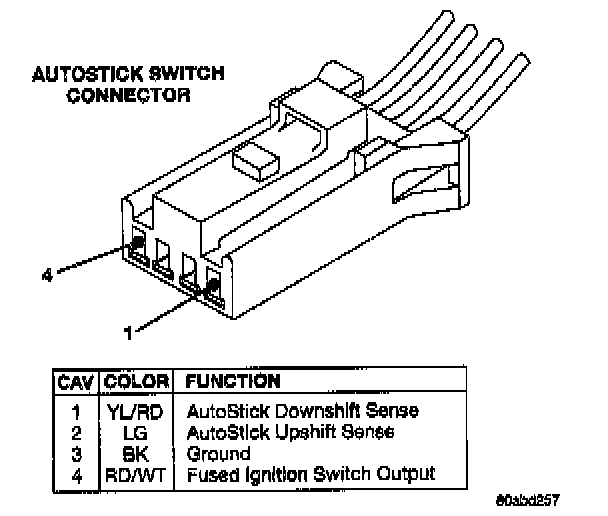

Auto Stick Switch:

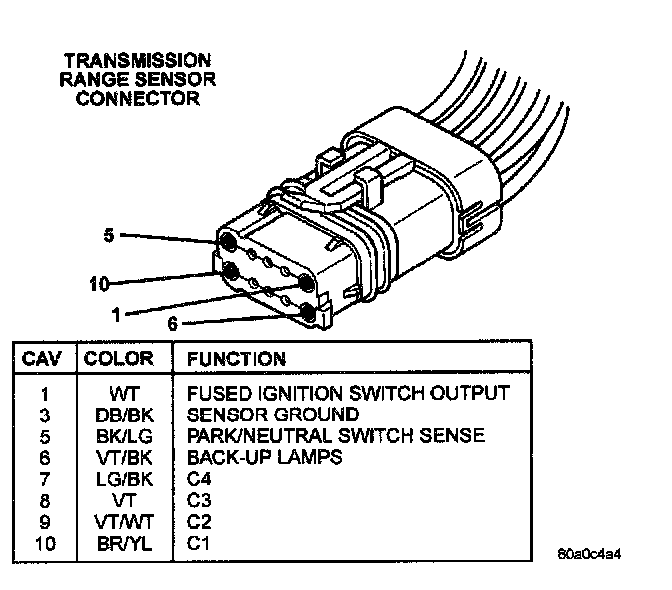

Transmission Range Sensor Connector:
